Bumper - Liftgate - LH (Remove and Replace)

Correction code 11335402 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the liftgate.

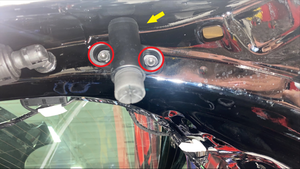

  3. Remove the bolts (x2) that attach the LH liftgate bumper to the liftgate, and then remove the bumper from the vehicle.
    12 Nm (8.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket

Install

  1. Position the LH liftgate bumper onto the liftgate, and then install the bolts (x2) that attach the bumper to the liftgate.
    12 Nm (8.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  2. Close the liftgate.
  3. Raise the LH front window and close the LH front door.
