Foam - Back Rest - Driver Seat (Remove and Replace)

Correction code 13072602 1.08 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the driver seat from the vehicle. See Seat Assembly - 1st Row - LH (Remove and Install).
  2. With assistance, place the driver seat on a protected surface so that the underside of the seat can be accessed.
  3. Release the seat back elastic straps (x2) from the seat frame.
  4. Disconnect the FSB vent heat pad electrical connector from the driver seat controller.
  5. Release the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the seat assembly, and then remove the harnesses from the assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
  6. Position the seat assembly upright.
  7. Remove the driver seat headrest. See Trim - Headrest - Driver (Remove and Replace).
  8. Remove the driver seat back shell. See .
  9. Disconnect the fan controller electrical connector from the seat harness.
  10. Disconnect the driver seat microphone electrical connector, and then release clip that attaches the harness to the driver seat back rest foam.
  11. Release the female side of the microphone connector and harness clips (x2) from the seat back suspension.
  12. Release the trim strap, and then release the trim retainers (x6) that attach the seat back trim retainers to the seat back frame.
  13. Carefully release the driver seat cover from the driver seat, and then set the cover aside for access.
  14. Release the clip that attaches the driver seat side airbag harness to the driver seat seat frame.
  15. Push down on the tab to release the driver seat side air bag electrical connector, and then disconnect the connector.

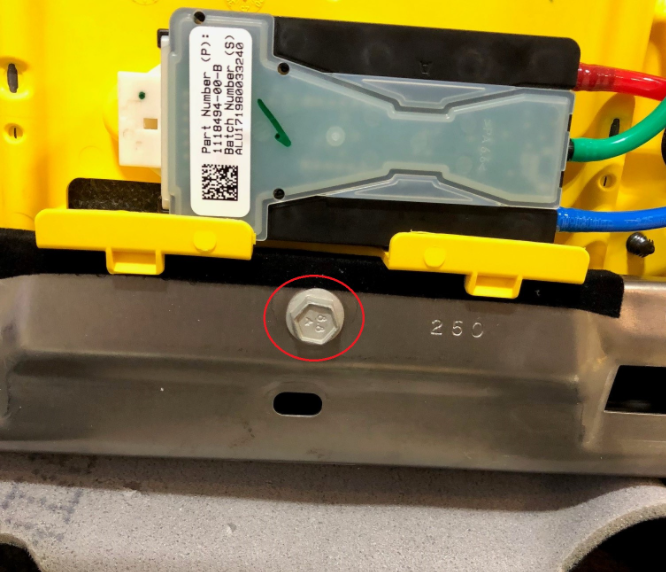

  16. Remove the bolt that attaches the bottom of the lumbar support to the seat assembly.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolt is located below the lumbar ECU. Removing this bolt allows ease of access for the following step.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

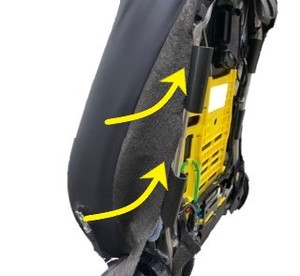

  17. Carefully pull the seat cover and foam assembly away from the frame, and then remove and discard the nuts (x2) that attach the driver seat side air bag to the seat back frame assembly.
    5.4 Nm (4.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 11 mm socket

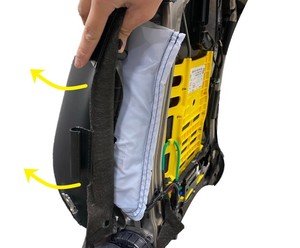

  18. Carefully separate the air bag chute away from the seat back frame.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not remove the airbag from the airbag chute.
  19. With assistance, remove the driver seat back trim assembly from the seat frame.
  20. Slide the airbag chute with the airbag still inside through the seatback foam, and then carefully remove the airbag from the airbag chute.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure that the driver side airbag mounting studs do not catch in the holes of the airbag chute.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Handle the airbag with extreme care when removing it from the airbag chute. The airbag is configured/folded in a specific manner and will need to be replaced if it is dropped, altered or manipulated in any way.
  21. Release the Velcro strips (x4) that attach the driver seat back rest trim to the seat back rest foam, and then remove the trim from the assembly.
  22. Remove the driver seat microphone assembly from the driver seat back rest foam.
    Informational PurposesAn informational icon, calling your attention
    Note
    Feed the harness through the access hole on the driver seat back rest foam.

Install

  1. Position the driver seat microphone onto the driver back rest foam, and then feed the harness through the access on the foam to install the microphone onto the foam.
    Informational PurposesAn informational icon, calling your attention
    Note
    Feed harness through access hole on seat back foam
  2. Position the driver seat back rest trim onto the driver seat back rest foam, and then align the Velcro strips (x4).
  3. Install the driver side airbag into the airbag chute, and then slide the airbag chute with the airbag inside through the slot in the seat back foam.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure that the driver side airbag mounting studs extend out of the holes of the chute.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Handle the airbag with extreme care when installing it into the airbag chute. The airbag is configured/folded in a specific manner and will need to be replaced if it is dropped, altered or manipulated in any way.
    Informational PurposesAn informational icon, calling your attention
    Note
    Refer to the following video for proper care when installing the driver side airbag into the airbag chute, and when installing the chute through the seat foam.
  4. With assistance, maneuver the driver seat back trim and foam assembly downward onto the seat frame to install it onto the seat assembly.
  5. Install new nuts (x2) that attach the driver seat side air bag to the seat back frame assembly.
    5.4 Nm (4.0 lbs-ft)
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not use impact tools to torque the nuts.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  6. Install the bolt that attaches the bottom of the lumbar support to the seat assembly.
    5 Nm (3.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The bolt is located below the lumbar ECU.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  7. Install the clip that attaches the driver seat side airbag harness to the driver seat seat frame.
  8. Connect the driver seat side air bag electrical connector, and then secure the safety lock.
  9. Carefully secure the LH side of the driver seat seat cover and foam onto the seat frame.
  10. Secure the retainers (x6), and then secure the trim strap onto the driver seat seat back frame.
  11. Secure the female side of microphone connector and harness clips (x2) onto seat back suspension.
  12. Connect the driver seat microphone, and then secure harness clip onto the seat back foam.
  13. Slide the fan controller electrical connector downward to install it onto the bracket, and then connect the electrical connector.
  14. With assistance, align and fully secure the clips that attach the driver seat back shell to the seat assembly.
  15. Install the driver headrest trim. See Trim - Headrest - Driver (Remove and Replace).
  16. Position the driver seat assembly onto the seat back.
    Informational PurposesAn informational icon, calling your attention
    Note
    Protect the seat from damage.
  17. Secure the clip and bracket that attach the FSC and FSB vent heat pad harnesses to the seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    One harness is for the seat cushion and the other is for the seat back. The upper bracket aids in routing while the lower clip secures them.
  18. Connect the FSB vent heat pad electrical connector from the seat controller.
  19. Secure the seat back elastic straps (x2) to the seat frame.
  20. Position the seat assembly upright.
  21. Install the driver seat into the vehicle. See Seat Assembly - 1st Row - LH (Remove and Install).
