Speaker - Rear Door - LH (Remove and Replace)

Correction code 21211002 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
  2. Remove the LH rear door trim decor. See Decor - Trim - Rear Door - LH (Remove and Replace).
  3. Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).

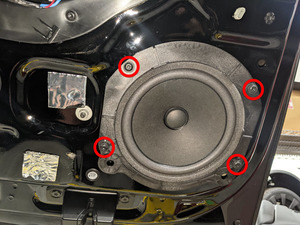

  4. Remove and discard the bolts (x4) that attach the LH rear door speaker to the LH rear door.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket

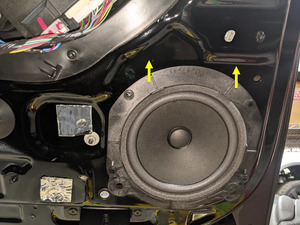

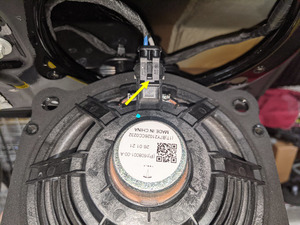

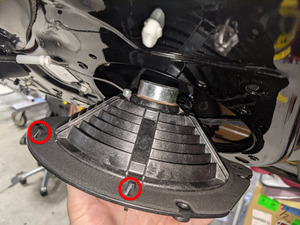

  5. Release the tabs (x2) that attach the LH rear door speaker to the LH rear door, disconnect the electrical connector, and then remove the speaker from the door.

Install

  1. Position the LH rear door speaker onto the LH rear door, connect the electrical connector, and then secure the tabs (x2) that attach the speaker to the door.
  2. Install new bolts (x4) that attach the LH rear door speaker to the LH rear door.
    3.5 Nm (2.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  3. Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).
  4. Install the LH rear door trim decor. See Decor - Trim - Rear Door - LH (Remove and Replace).
  5. Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
