Latch - Door - Rear - LH (Remove and Replace)

Correction code 11353702 1.08 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
  2. Remove the LH rear door trim decor. See Decor - Trim - Rear Door - LH (Remove and Replace).
  3. Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).
  4. Set the LH rear door to a comfortable working height.

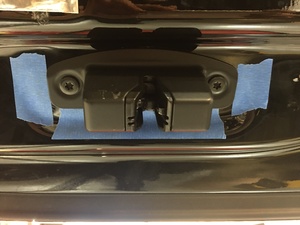

  5. Use masking tape to mark the location of the LH rear door latch on the LH rear door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Mark where the cover sits on the door jamb.

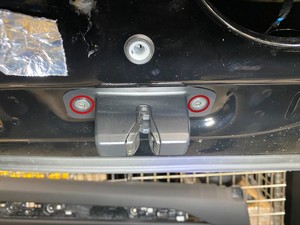

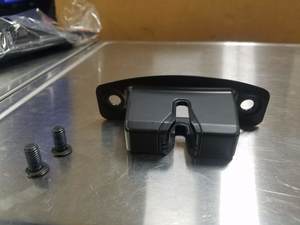

  6. Remove and discard the screws (x2) that attach the LH rear door latch cover to the door assembly, and then remove the cover from the assembly.
    22 Nm (16.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  7. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  8. Disconnect LV power. See LV Power (Disconnect and Connect).

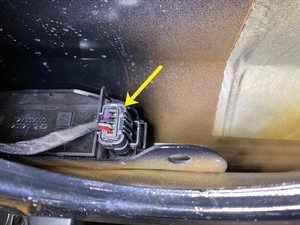

  9. Release the orange locking tab, and then disconnect the LH falcon wing door air bag electrical connector.

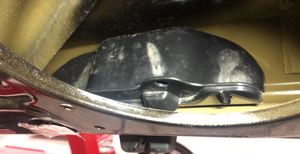

  10. Remove the screws (x10) that attach the LH rear door closeout panel to the LH rear door.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  11. Remove the screws (x3) that attach the LH rear window motor to the LH rear door closeout panel.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  12. Release the tabs (x2) that attach the LH rear door closeout panel to the LH rear door, pull the closeout panel away from door, and then lift the window motor upward to release it.
  13. Release the black locking tab, and then disconnect the LH falcon wing door protection ECU.
  14. Disconnect the electrical connectors (x2) from the LH falcon wing door module.
  15. Release the clips (x7) that attach the harnesses and connectors to the LH rear door closeout panel.
  16. Release the clip, and then feed the door release cable through the LH rear door closeout panel.

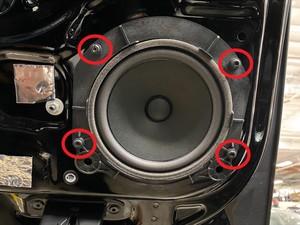

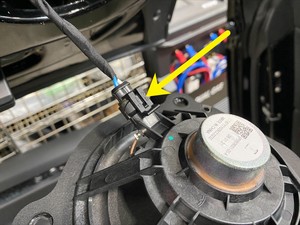

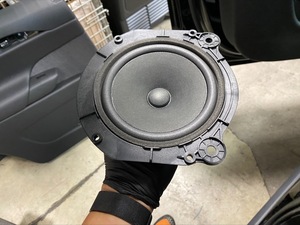

  17. Remove the bolts (x4) that attach the LH rear door speaker to the door, disconnect the electrical connector, and then remove the speaker from the door assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T25 socket

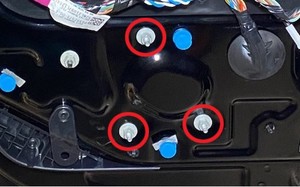

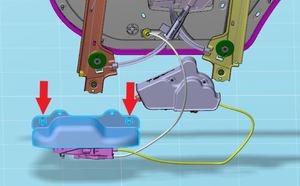

  18. Remove the nuts (x3) that attach the LH rear door actuator to the door assembly, and then pull the actuator up to gain access.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

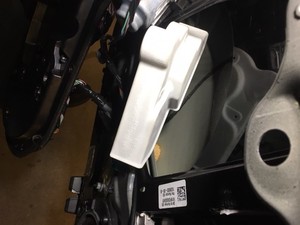

  19. Release the tabs (x2), and then remove the LH rear door latch shroud from the door assembly.

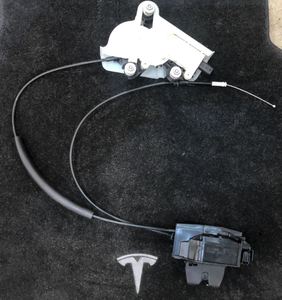

  20. Disconnect the connectors (x2), and then remove the latch and cinching actuator motor assembly from the LH rear door.

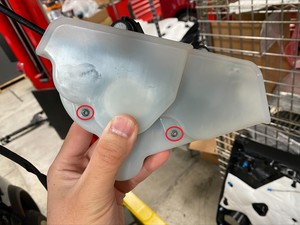

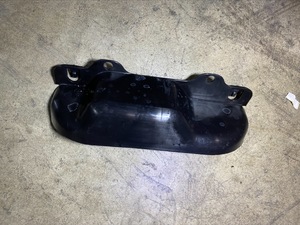

  21. Remove the screws (x2) that attach the cinching actuator shroud to the actuator assembly, and then remove the shroud from the assembly.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • T15 socket

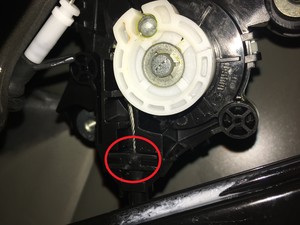

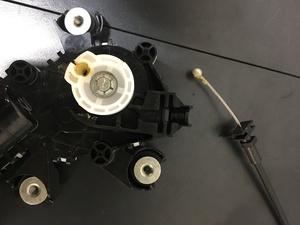

  22. Pry up on the black plastic edge to release, and then slightly unwind and pull up on silver ball to remove the latch from the cinching actuator.

Install

  1. Install the latch to the cinching actuator.

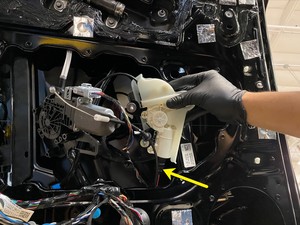

  2. Push the actuator back, and then slide the shroud onto the LH cinching actuator.
  3. Position the cinching actuator shroud to the actuator assembly, and then install self tapping screws (x2) that attach the shroud to the assembly.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • T15 socket
  4. Position the latch and cinching actuator motor assembly into the LH rear door, and then connect the connectors (x2).
  5. Position the LH rear door latch shroud into the door assembly, and then secure the tabs (x2) that attach the shroud to the assembly..
  6. Install the nuts (x3) that attach the LH rear door actuator to the door assembly.
    3 Nm (2.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  7. Position the LH rear door latch cover to the door assembly, and then install new screws (x2) that attach the cover to the assembly.
    22 Nm (16.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the latch cover lines up with tape marks.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  8. Remove the masking tape around the latch cover.
  9. Position the LH rear door speaker to the door, connect the electrical connector, and then install the bolts (x4) that attach the speaker to the door assembly.
    4 Nm (2.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  10. Feed the door release cable through the LH rear door closeout panel, and then secure the clip.
    Informational PurposesAn informational icon, calling your attention
    Note
    Lubricate the cable grommet to aid in installation.
  11. Position the LH rear door window motor onto the back of the closeout panel, and then secure the tabs that attach the motor to the closeout panel.
  12. Install the screws (x3) that attach the LH rear window motor to the LH rear door closeout panel.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T30 socket
  13. Install the screws (x10) that attach the LH rear door closeout panel to the LH rear door.
    1.8 Nm (1.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Torx T25 socket
  14. Connect the LH falcon wing door protection ECU electrical connector, and then engage the locking tab.
  15. Connect the LH falcon wing door air bag electrical connector, and then engage the orange locking tab.
  16. Connect the electrical connectors (x2) to the LH falcon wing door module.
  17. Install the clips (x7) that attach the harnesses and connectors to the LH rear door closeout panel.
  18. Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).
  19. Install the LH rear door trim decor. See Decor - Trim - Rear Door - LH (Remove and Replace).
  20. Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
  21. Connect LV power. See LV Power (Disconnect and Connect).
  22. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  23. Calibrate the rear doors.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate to calibrate the rear doors
