Front Floor Plate - Inboard - 2nd Row Seat - LH (7 Seat) (Remove and Replace)

Correction code 15304302 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open all 4 doors.
  2. Lower LH front window.
  3. Move the driver and front passenger seats fully forward.
  4. Remove the LH and RH rear sill panel trims. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  5. Move the LH and RH 2nd row seats fully backwards.
  6. Remove the 2nd row mid floor panel. See Floor Panel - Mid - 2nd Row (7 Seat) (Remove and Replace).

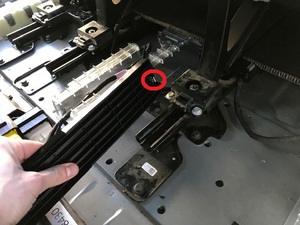

  7. Remove the clip that attaches the inboard LH front floor plate to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note

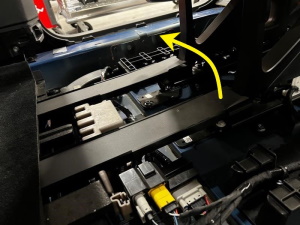

    Carefully peel the sticker to release the clip.

Install

  1. Install the clip that attaches the LH inner front plate carpet to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Secure the sticker onto the seat track base to cover the fastener.
  2. Install the 2nd row mid floor panel. See Floor Panel - Mid - 2nd Row (7 Seat) (Remove and Replace).
  3. Install the LH and RH rear sill panel trims. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  4. Restore the driver and front passenger seat back to their original position.
