Panel - Aero Shield - Front (Remove and Replace)

Correction code 12030102 0.24 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Raise and support the vehicle on a 2 post lift. See Raise Vehicle - 2 Post Lift.

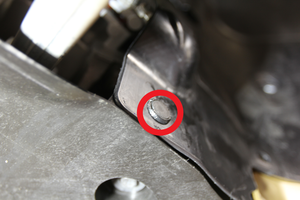

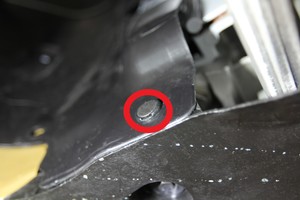

  2. Release the push clips (x2) that attach the front aero shield panel to the LH and RH front wheel arch liners.

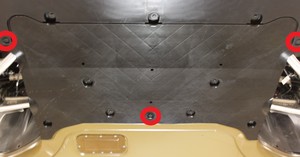

  3. Release the push clips (x3) that attach the front aero shield panel to the underbody.

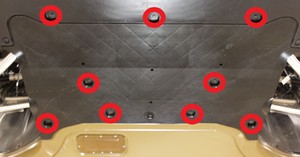

  4. Remove the bolts (x9) that attach the front aero shield panel to the front subframe, and then remove the panel from the vehicle.

Install

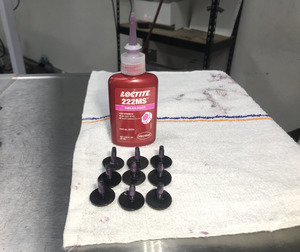

  1. Apply a drop of Loctite 222 onto the threads of each front aero shield panel bolt.
  2. Install the front aero shield panel to the front subframe, and then install the bolts (x9) that attach the panel to the subframe.
    6 Nm (4.4 lbs-ft)
  3. Fasten the push clips (x3) that attach the front aero shield panel to the underbody.
  4. Fasten the push clips (x2) that attach the front aero shield panel to the LH and RH front wheel arch liners.
  5. Remove the vehicle from the lift. See Raise Vehicle - 2 Post Lift.
