Foam - Bumper Beam - Front (Remove and Replace)

Correction code 10011702 0.78 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install).

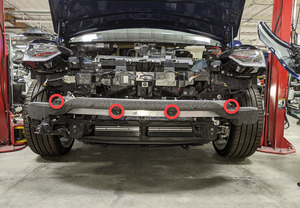

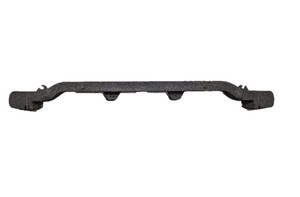

  2. Remove the fir tree clips (x4) that attach the front bumper beam foam to the front bumper beam, and then remove the foam from the vehicle.

Install

  1. Position the front bumper beam foam onto the front bumper beam, and then install the fir tree clips (x4) that attach the foam to the bumper beam.
    Informational PurposesAn informational icon, calling your attention
    Note
    Replace any damaged clips.
  2. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install).
