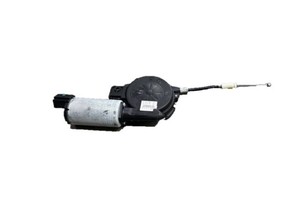

Actuator - 60 Track - 2nd Row Seat (7 Seat) (Remove and Replace)

Correction code 13020092 1.62 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH 2nd row seat assembly from the vehicle. See Seat Assembly - 2nd Row - LH (7 Seat) (Remove and Replace).
  2. Move the LH 2nd row seat backs to the upright position.

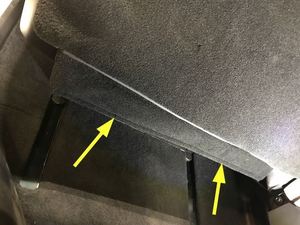

  3. Release the J-hooks (x6) that attach the rear toe kick to the LH 2nd row seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the outer clips (x2) to expose the inner clips (x4).

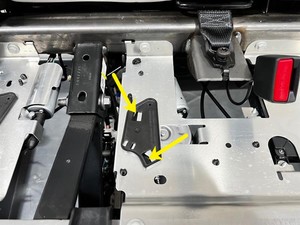

  4. Disconnect the 2nd row center seatbelt buckle electrical connector, and then release the edge clip that attaches the connector to the seat assembly.
  5. Remove and discard the bolt that attaches the 2nd row center seatbelt buckle to the seat assembly, and then remove the buckle from the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  6. Remove the LH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
  7. Remove the LH 2nd row recliner cover. See Cover - Recliner - 2nd Row - LH (Remove and Replace).
  8. Remove the bolt that attaches the LH 2nd row outer seatbelt to the seat assembly, and then remove the seatbelt from the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket

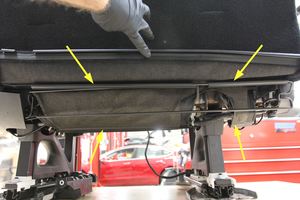

  9. Release the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.

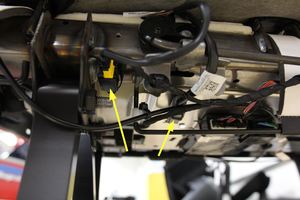

  10. Disconnect the LH 2nd row seat seat cushion electrical connectors (x4), and then release the black connectors (x2) from the seat frame.

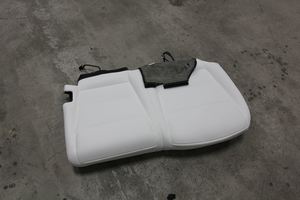

  11. Remove the LH 2nd row seat cushion assembly from the seat assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Use caution when feeding the J-hooks and connectors through the seat frame.

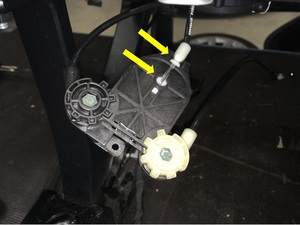

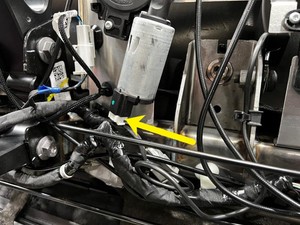

  12. Release the cable from the actuator assembly.

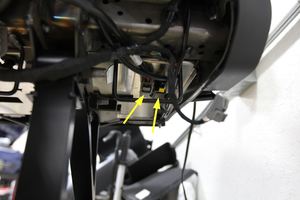

  13. Disconnect the 2nd row seat 60 track actuator electrical connector.

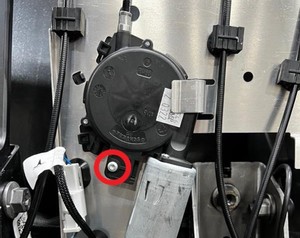

  14. Remove the screw that attaches the 2nd row seat 60 track actuator to the bracket.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T15 socket
  15. Release the tabs (x2) that attach the 2nd row seat 60 track actuator to the seat assembly, and then remove the actuator from the assembly.

Install

  1. Position the 2nd row seat 60 track actuator into the seat assembly, and then secure the tabs (x2) that attach the actuator to the assembly.
  2. Install the screw that attaches the 2nd row seat 60 track actuator to the bracket.
    1 Nm (.7 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T15 socket
  3. Connect the 2nd row seat 60 track actuator electrical connector.
  4. Install the cable into the actuator assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not remove the black pin before the actuator assembly cable is attached to the actuator.
  5. Install the LH 2nd row seat cushion assembly into the seat assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Use caution when feeding the J-hooks and connectors through the seat frame.
  6. Secure the black connectors (x2) to the LH 2nd row seat frame, and then connect the electrical connectors (x4).
  7. Secure the J-hooks (x11) that attach the underside of the LH 2nd row seat upholstery to the seat assembly.
  8. Position the LH 2nd row outer seat belt to the seat assembly, and then install a new bolt that attaches seatbelt to the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  9. Install the LH 2nd row recliner cover. See Cover - Recliner - 2nd Row - LH (Remove and Replace).
  10. Install the LH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
  11. Position the 2nd row center seatbelt buckle onto the seat assembly, and then install a new bolt that attaches the buckle to the seat assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T50 socket
  12. Secure the edge clip that attaches the 2nd row center seatbelt buckle electrical connector to the seat assembly, and then connect the connector.
  13. Secure the J-hooks (x6) that attach the rear toe kick to the LH 2nd row seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Secure the inner clips (x4), and then secure the outer clips (x2).
  14. Fold the LH 2nd row seat back to the down position.
  15. Install the LH 2nd row seat assembly from the vehicle. See Seat Assembly - 2nd Row - LH (7 Seat) (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to perform Service Redeploy after installation.
