Diagnostic Port Location
CAUTION
Always use the
appropriate diagnostic cable and diagnostic port location. See Diagnostic Cables.
Vehicles manufactured before April 2024

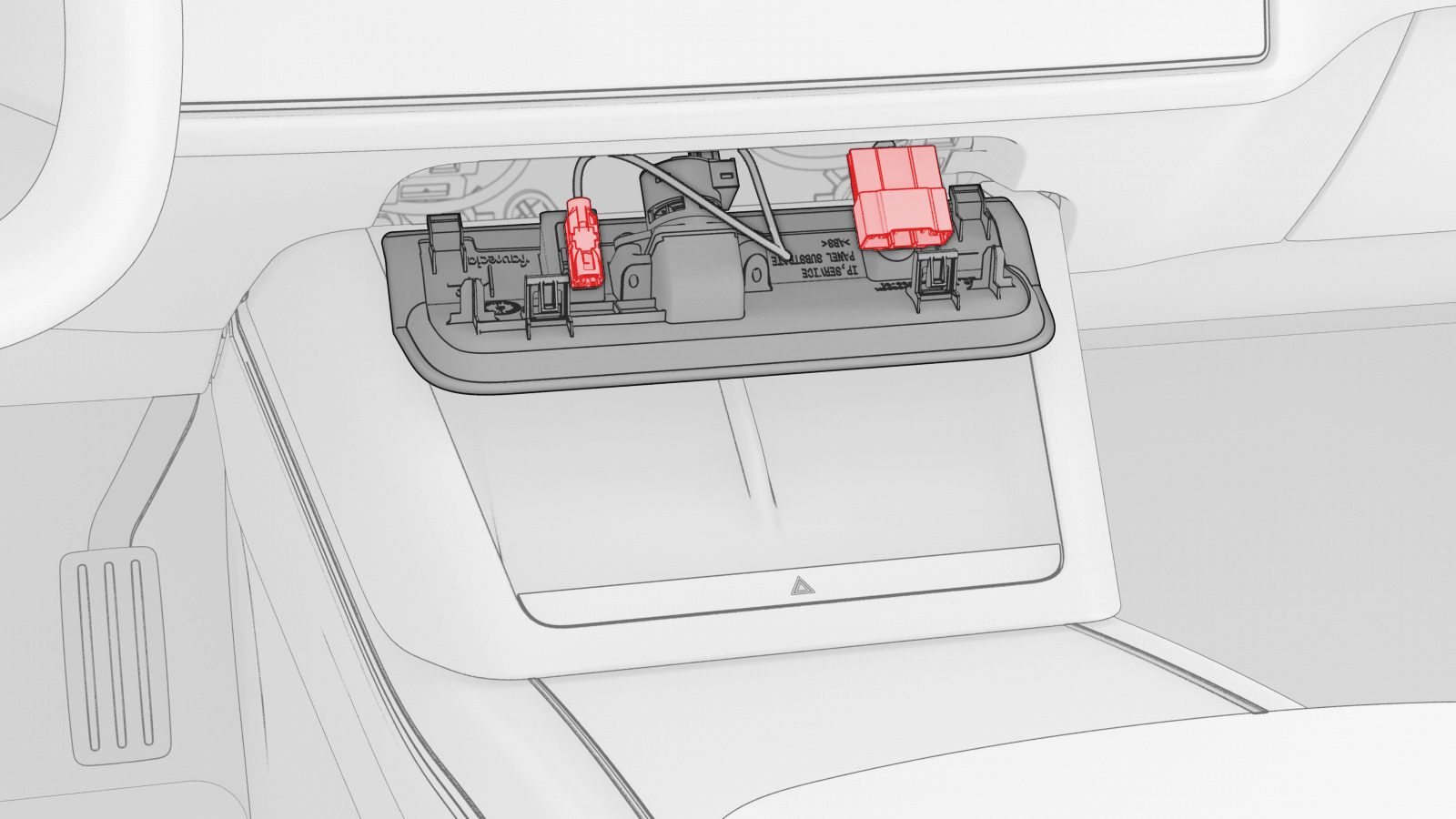

The diagnostic port in Model X is located under the touchscreen, behind the IP service panel. To access the diagnostic port, release the tabs (x4) at each corner of the IP service panel.
Warning
Model X vehicles
manufactured before April 2024 are equipped with both an OBD-II J1962 port (which
does not support Diagnostic over Internet Protocol (DoIP)) and a separate diagnostic
port in the Center Console. Do not
connect an OBD-II J1962 to RJ45 Ethernet cable into an OBD-II J1962 port that
does not support DoIP. Doing so may cause damage to electronic equipment.

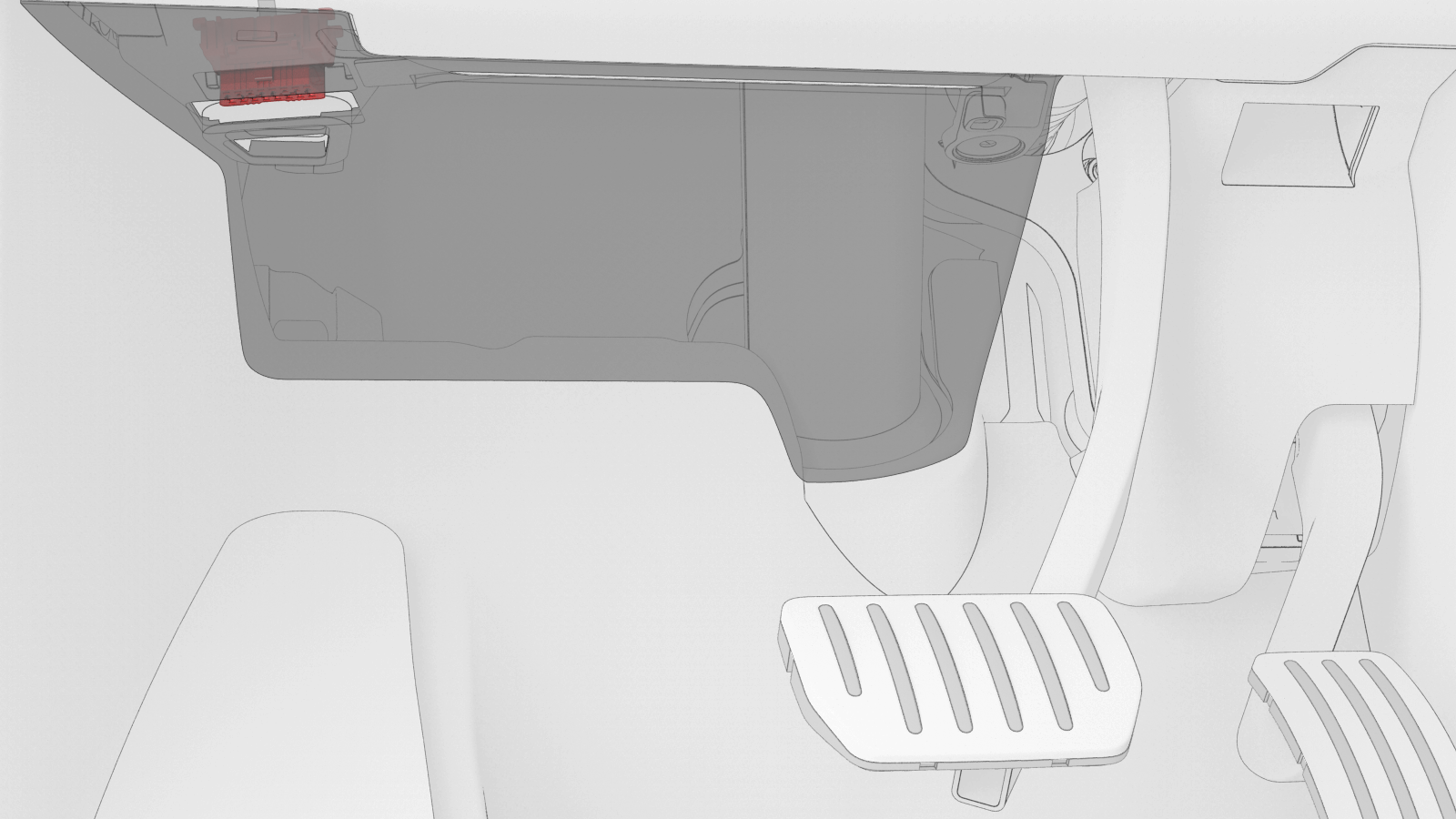

Vehicles manufactured April 2024 onwards
The diagnostic port in Model X is an OBD-II J1962 port that supports Diagnostic over Internet Protocol (DoIP). This diagnostic port is located in the LH footwell area.
