Switch - Easy Entry - 2nd Row Seat - LH (6 Seat) (Remove and Replace)

Correction code 13024602 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the LH 2nd row seat seat back cover. See Cover - Seat Back - 2nd Row Seat - LH (6 Seat) (Remove and Replace).

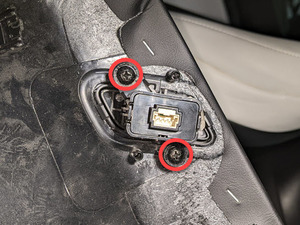

  2. Remove the screws (x2) that attach the LH 2nd row seat easy entry switch to the seat back cover, and then remove the switch from the cover.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • PH2 screwdriver

Install

  1. Position the LH 2nd row seat easy entry switch into the seat back cover, and then install the screws (x2) that attach the switch to the cover.
    2 Nm (1.5 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • PH2 screwdriver
  2. Install the LH 2nd row seat seat back cover. See Cover - Seat Back - 2nd Row Seat - LH (6 Seat) (Remove and Replace).
