Cover - Footwell - Outboard - Driver (Remove and Replace)
Correction code
14055322
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Move the driver seat rearward.
- Remove the LH front floor mat.
-

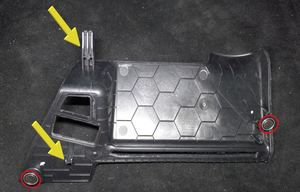

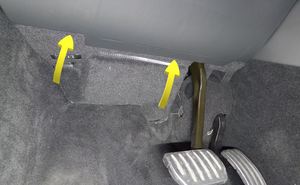

Release the magnets (x2) that attach
the driver outboard footwell cover to the vehicle, and then remove the cover from the
vehicle.
Install
-

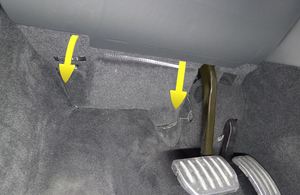

Position the driver outboard footwell
cover into the vehicle, and then secure the magnets (x2) that attach the cover to the
vehicle.
- Install the LH front floor mat.
- Move the driver seat to original position.
