Trim - Side - Trunk - LH (6/7 Seat) (Remove and Replace)

Correction code 15245012 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Open the LH rear door.
  2. Remove the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  3. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  4. Remove the side trunk load floor. See Trunk Load Floor - Side (Remove and Replace).
  5. Remove the rear trunk carpet. See .

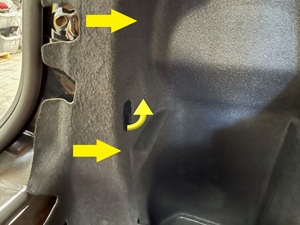

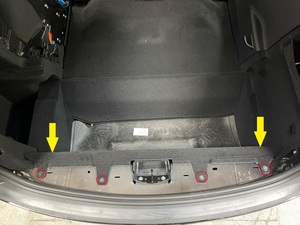

  6. Slide the trunk carpet off of the anchors, and then remove the carpet from the vehicle.
  7. Remove the LH and RH side rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
  8. Remove the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).

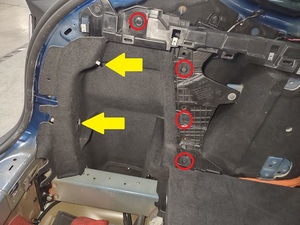

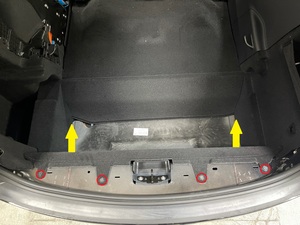

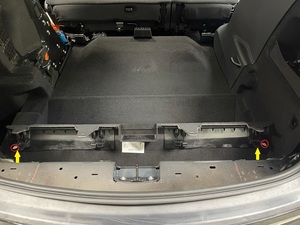

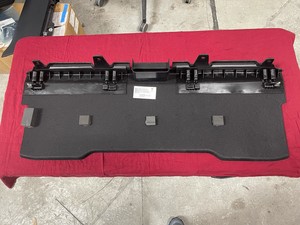

  9. Remove the push clips (x4) and release the clip that attach the rear wall load support to the vehicle, and then remove the support from the vehicle.
  10. Remove the LH rear trunk crush can trim. See Trim - Crush Can - Rear Trunk - LH (Remove and Replace).

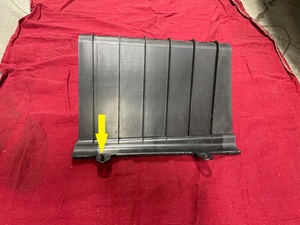

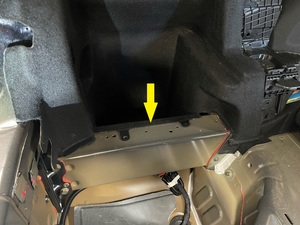

  11. Release the clip that attaches the LH soft trim pocket bracket to the LH frame rail, and then remove the pocket bracket from the vehicle.
  12. Remove the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  13. Remove the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).
  14. Fold the LH 3rd row seat back into the down position.
  15. Remove the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace)

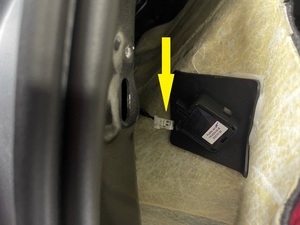

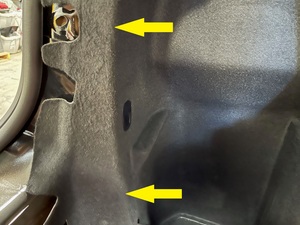

  16. Remove the push clips (x5), disconnect the connector, release the trunk tie down ring, and then remove the LH trunk side trim from the vehicle.

Install

  1. Position the LH trunk side trim into the vehicle, secure the trunk tie down ring, connect the connector, and then install the push clips (x5).
    Informational PurposesAn informational icon, calling your attention
    Note

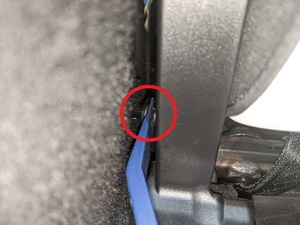

    Insert the trunk tie down ring. Place the clip into the trim tool to aide installation of the lower clip.
  2. Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace)
  3. Fold the LH 3rd row seat back into the up position.
  4. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).
  5. Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  6. Install the LH soft trim pocket bracket to the LH frame rail, and then fasten the clip that attaches the pocket bracket to the frame rail.
  7. Install the LH rear trunk crush can trim. See Trim - Crush Can - Rear Trunk - LH (Remove and Replace).
  8. Position the rear wall load support into the vehicle, and then install the push clips (x4) and secure the clip that attach the support to the vehicle.
  9. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace).
  10. Install the LH and RH side rear trunk garnishes. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
  11. Install the trunk carpet into the trunk, and then slide the carpet onto the anchors.
  12. Remove the rear trunk carpet. See .
  13. Install the LH trunk pocket load floor. See Trunk Load Floor - Side (Remove and Replace).
  14. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  15. Install the LH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
