Garnish - Liftgate Trough - Rear Fascia (Remove and Replace)

Correction code 12271002 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

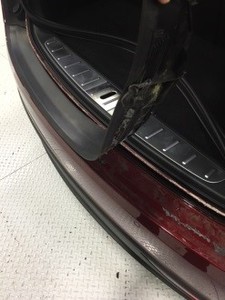

  1. Release the lower portion of the liftgate seal.

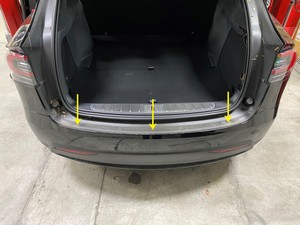

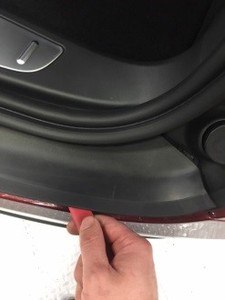

  2. Use a plastic trim tool to release the rear fascia liftgate trough garnish from the rear fascia, and then remove the garnish from the rear fascia.

Install

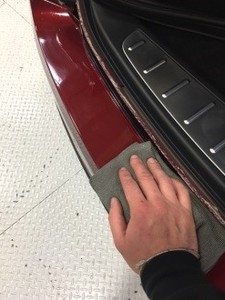

  1. Wipe off any loose debris, and then use IPA wipes to remove any adhesive residue from the rear fascia.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute of dry time.

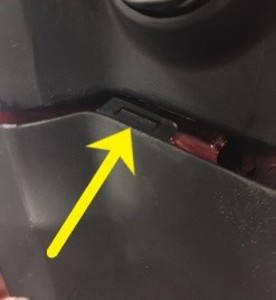

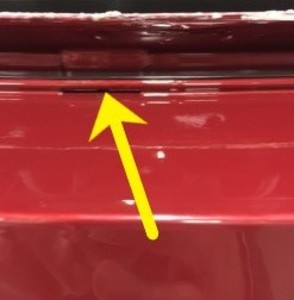

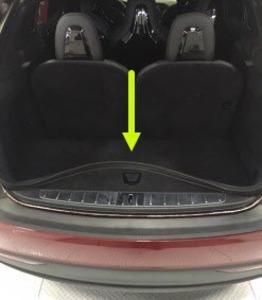

  2. Position the rear fascia liftgate trough garnish onto the rear fascia, and then push the garnish forward to engage the tabs (x9).
    Informational PurposesAn informational icon, calling your attention
    Note
    Fully secure the tabs onto the fascia and side trough trims.

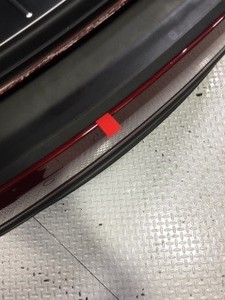

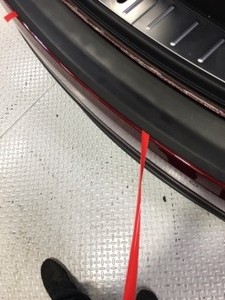

  3. Remove the adhesive backing, and then fully seat the rear fascia liftgate trough garnish onto the rear fascia.

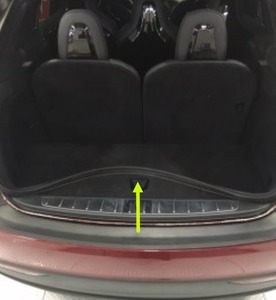

  4. Install the lower portion of the liftgate seal.
