Lamp - Reflex - Rear - LH (Remove and Replace)
Correction code
17403502
0.66
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH front door and lower the front windows.
- Remove the rear fascia assembly from the vehicle. See Fascia Assembly - Rear (Remove and Install).
-

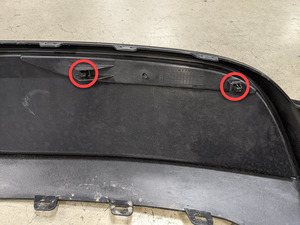

Release the clips (x2) that attach the
LH side reflex lamp to the lower rear fascia assembly, and then remove the lamp from the
assembly.
Install
-

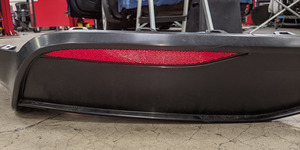

Position the LH side reflex lamp into
the lower rear fascia assembly, and then secure the clips (x2) that attach the lamp to
the assembly.
- Install the rear fascia assembly onto the vehicle. See Fascia Assembly - Rear (Remove and Install).
- Raise the front windows and close the LH front door.
