Stabilizer Bar - Rear (Remove and Replace)

Correction code 31033102 1.08 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Torque Specifications

Table 1. Torque Specifications: Suspension - Rear (Torque)
Description Torque Value Recommended Tools Reuse/Replace Notes
Nut that attaches the stabilizer bar end link to the rear stabilizer bar
55 Nm (40.6 lbs-ft)
  • 15 mm socket
  • 5 mm hex
Replace
Bolts (x4) that attach the rear stabilizer bar to the vehicle
30 Nm (22.1 lbs-ft)
  • 11 mm socket
Reuse

Remove

  1. Raise and support the vehicle. See Raise Vehicle - 2 Post Lift

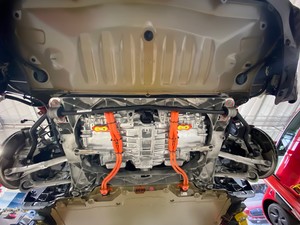

  2. Remove the rear fascia diffuser. See Diffuser - Rear Fascia (Remove and Replace).

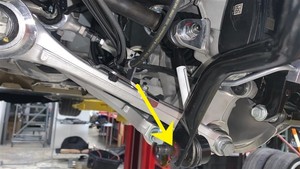

  3. Remove and discard the nut that attaches the rear stabilizer bar assembly to the LH rear stabilizer bar end link. Repeat this step for the RH stabilizer bar end link.
    Informational PurposesAn informational icon, calling your attention
    Note
    Break the nut loose, and then counter-hold the ball joint with 5mm hex.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
    • 5 mm hex

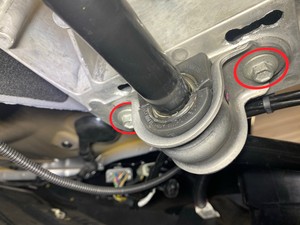

  4. Remove the bolts (x4) that attach the rear stabilizer bar to the subframe, and then remove the stabilizer bar from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 11 mm socket

Install

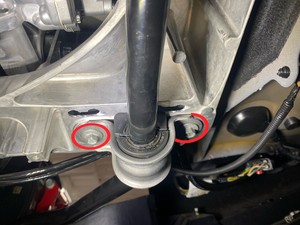

  1. Position the rear stabilizer bar to the subframe, and then install the bolts (x4) that attach the stabilizer bar to the vehicle.
    30 Nm (22.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 11 mm socket

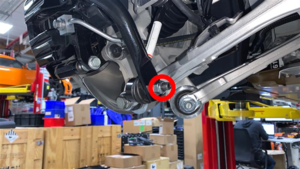

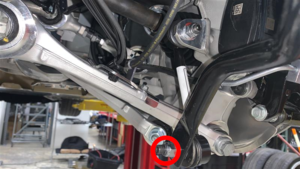

  2. Position the LH rear stabilizer bar end link to the stabilizer bar assembly, install a new nut that attaches the link to the assembly, and then mark the nut with a paint pen. Repeat this step for the RH stabilizer bar end link.
    55 Nm (40.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Adjust the end link to align with stabilizer bar. May need to move the stabilizer bar up/down to get the correct angle to install end link.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use a 5mm hex tool to keep the stud from spinning.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm socket
    • 5 mm hex
  3. Install the rear fascia diffuser. See Diffuser - Rear Fascia (Remove and Replace).
  4. Install the mid aero shield. See Panel - Aero Shield - Rear (Remove and Replace).
  5. Adjust the vehicle ride height. See Ride Height (Adjust).
  6. Refer to the Alignment Requirement tables to determine whether an EPAS alignment check (EC) or four wheel alignment check (AC) is necessary. If performed, add the alignment check/adjust as a separate activity. See Alignment Requirement - Suspension.
