Trim - Sill Panel - Front - LH (Remove and Replace)
Correction code
15180102
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open the LH front door and lower the LH front window.
-

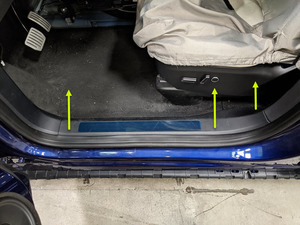

Release the clips (x8) that attach the
LH front sill panel trim to the vehicle, and then remove the trim from the
vehicle.
Install
-
Position the LH front sill panel trim
into the vehicle, and then secure the clips (x8) that attach the trim to the
vehicle.
- Raise the LH front window and close the LH front door.
