Common Bracket - Mid Floor - 2nd Row - LH (Remove and Replace)

Correction code 15309502 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH and RH front doors.
  2. Lower the LH and RH front windows.
  3. Open the LH and RH falcon wing doors.
  4. Move the LH and RH front seats forward.
  5. Remove the LH and RH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  6. Remove the 2nd row floor mat. See Floor Mat - 2nd Row (Remove and Replace).
  7. Remove the 2nd row mid floor panel. See Floor Panel - Mid - 2nd Row (6 Seat) (Remove and Replace).

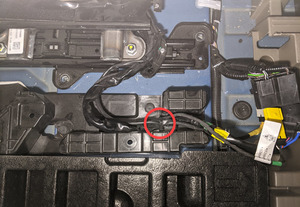

  8. Release the clip that attaches the LH 2nd row monopost seat harness to the LH 2nd row mid floor common bracket.

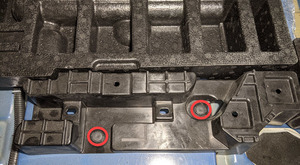

  9. Release the push clips (x2) that attach the LH 2nd row mid floor common bracket to the vehicle, and then remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Clip pry tool

Install

  1. Position the LH 2nd row mid floor common bracket on the vehicle, and then install the push clips (x2) that attach the bracket to the vehicle.
  2. Install the clip that attaches the LH 2nd row monopost seat harness to the LH 2nd row mid floor common bracket.
  3. Install the 2nd row mid floor panel. See Floor Panel - Mid - 2nd Row (6 Seat) (Remove and Replace).
  4. Install the 2nd row floor mat. See Floor Mat - 2nd Row (Remove and Replace).
  5. Install the LH and RH rear sill panel trim. See Trim - Sill Panel - Rear - LH (Remove and Replace).
  6. Close the LH and RH falcon wing doors.
  7. Move the LH and RH front seats to original position.
  8. Raise LH and RH front windows.
  9. Close the LH and RH front doors.
