Brake Pads - Front (Remove and Replace)

Correction code 33010702 0.96 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2024-1-24: Add caution on making sure the front brake pad clip is properly installed.
  • 2023-3-24: Moved brake pedal pumping to before reservoir level check, and added precautionary steps for fluid spillage.
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  3. Place absorbent material underneath the brake booster and the brake fluid reservoir area.
  4. Clean the area around brake fluid reservoir, and then remove the brake reservoir cap.
  5. Raise and support the vehicle on a 2 post lift. See Raise Vehicle - 2 Post Lift.
  6. Remove the LH and RH front wheels. See Wheel Assembly (Remove and Install).

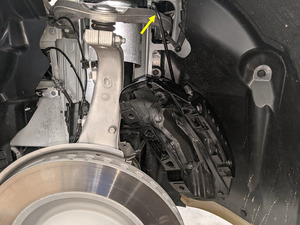

  7. Remove the bolt that attaches the brake hose to the LH front knuckle.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

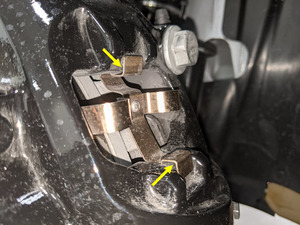

  8. Release the tabs (x2) for each anti-rattle clip (x2), and then remove brake pad anti-rattle clips from the front brake caliper.

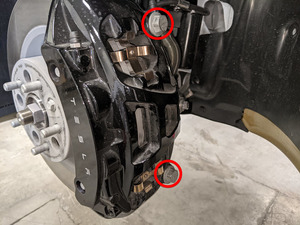

  9. Remove the bolts (x2) that attach the front brake caliper to the knuckle, and then allow the caliper to hang from the body using S-hooks.
    135 Nm (99.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket

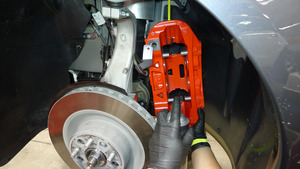

  10. Remove the brake pads from the front brake caliper.
    Informational PurposesAn informational icon, calling your attention
    Note
    2 guide pins each.
  11. Repeat steps 7 through 10 for the RH side.

Install

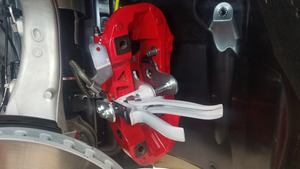

  1. Use a caliper spreader kit or similar tool to gently push the pistons back into the front brake caliper.
  2. Clean the front brake caliper.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a nylon brush only, if necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 minute dry time.

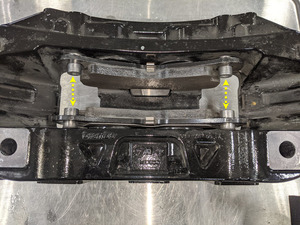

  3. Install the brake pads (x2) to the front brake caliper.
    Informational PurposesAn informational icon, calling your attention
    Note
    2 guide pins each.

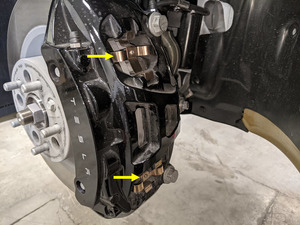

  4. Install the brake pad anti-rattle clips (x2) to the front brake caliper.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Make sure the brake pad clip rests on the brake pad bevel as pictured. Reposition or replace the brake pad clip as needed.
    Informational PurposesAn informational icon, calling your attention
    Note
    2x tabs on each anti-rattle clip.
  5. Install the front brake caliper onto the knuckle.
    135 Nm (99.6 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 21 mm socket

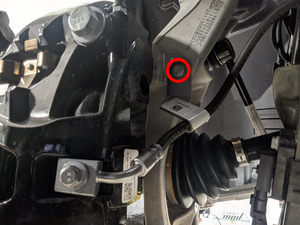

  6. Install the bolt that attaches the brake hose to the LH front knuckle.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  7. Repeat step 1 through 6 for the RH side.
  8. Install the LH and RH front wheels. See Wheel Assembly (Remove and Install).
  9. Pump the brake pedal repeatedly until firm to seat the brake pads against the rotors.
  10. Check brake fluid level and top off the reservoir, if necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the brake fluid level is above the Max line, remove the extra brake fluid.
  11. Install the brake reservoir cap.
  12. Remove the absorbent material from underneath the brake booster and brake fluid reservoir area.
  13. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  14. Perform a road test and burnish brakes. Ensure proper brake pedal feel and performance.
    Informational PurposesAn informational icon, calling your attention
    Note
    Per current FRT (33013000)
