Bump Stop - Rear Door - LH (Remove and Replace)

Correction code 11339302 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH falcon wing door.

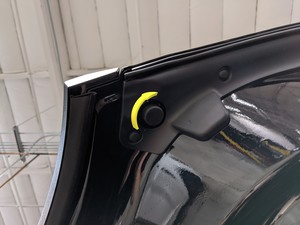

  2. Rotate the LH rear door bump stop counter-clockwise to remove it from the LH rear door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Record the height before removal.

Install

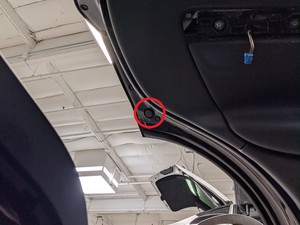

  1. Position the LH rear door bump stop onto the LH rear door, and then rotate the bump stop clockwise to install into the door.
    Informational PurposesAn informational icon, calling your attention
    Note
    Set the height to previously recorded level.
  2. Close the LH falcon wing door.

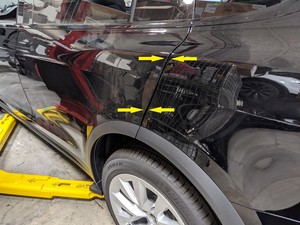

  3. Check the gap and flush of the LH falcon wing door to the quarter panel and adjust as necessary.
    Informational PurposesAn informational icon, calling your attention
    Note
    Refer to CVIS for current gap/flush specifications.
