Bracket - Trunk Load Floor - RH (Remove and Replace)

Correction code 15305302 0.30 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the all the doors and lower the front windows.
  2. Move the front seats forward.
  3. Fold 2nd row seat backs to the down position.
  4. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  5. Remove the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  6. Remove the RH trunk load floor bracket cover. See Cover - Bracket - Trunk Load Floor - LH (Remove and Replace)
  7. Remove the trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).
  8. Remove the RH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
  9. Remove the RH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  10. Remove the RH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).

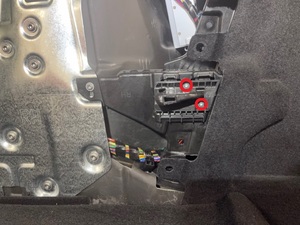

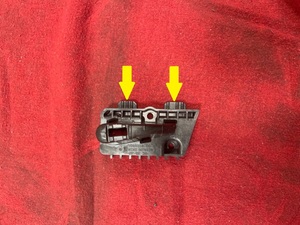

  11. Remove the screws (x2) that attach the RH trunk load floor bracket to the vehicle, and then remove the bracket from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket

Install

  1. Position the RH trunk load floor bracket into the vehicle, and then install the screws (x2) that attach the bracket to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  2. Install the RH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace).
  3. Install the RH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace).
  4. Install the RH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace).
  5. Install the trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).
  6. Install the RH trunk load floor bracket cover. See Cover - Bracket - Trunk Load Floor - LH (Remove and Replace)
  7. Install the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  8. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  9. Fold the 2nd row seats to the upright position.
  10. Move the front seats to the original positions.
  11. Close all the doors and raise the front windows.
