Seal - Inner Belt - Rear Door - LH (Remove and Replace)
Correction code
11704102
0.18
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
- Remove the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).
-

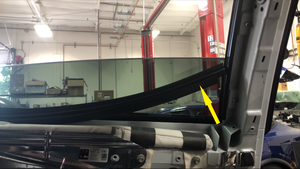

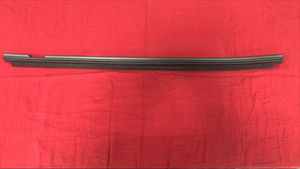

Remove the LH rear door inner belt
seal from the LH rear door.
Install
-

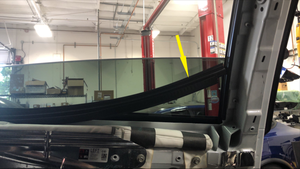

Position the LH rear door inner belt
seal into the LH rear door, and then install the seal into the door.
- Install the LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Replace).
- Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
