Cushion - Seat - 3rd Row (Remove and Replace)

Correction code 13060032 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Open the liftgate.
  2. Remove the trunk rear load floor.
  3. Remove the trunk tub floor insulator.

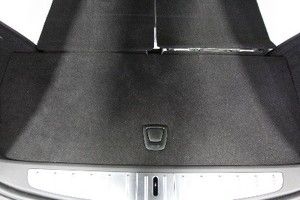

  4. Slide the trunk carpet off of the anchors, and then remove the carpet from the vehicle.

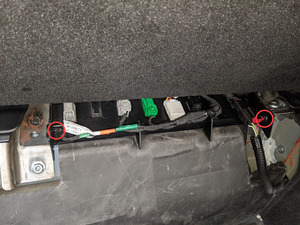

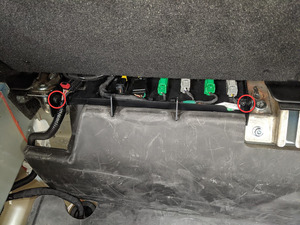

  5. Release the clips (x4) that attach the 3rd row seat harness trays to the 3rd row seat frame.

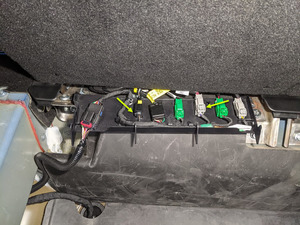

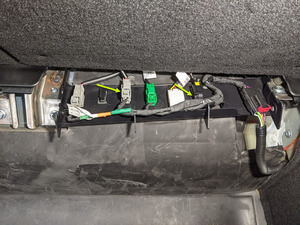

  6. Release the tab and slide the 3rd row seat cushion connectors (x4) off the 3rd row harness trays, and then disconnect the electrical harness from the connectors.

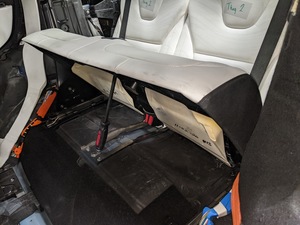

  7. Carefully lift the front of the 3rd row seat cushion from the frame.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not strain the electrical harness on the underside of the cushion.

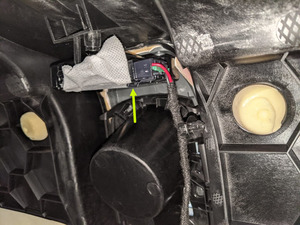

  8. Disconnect the electrical harness from the 3rd row seat cup holder connector.

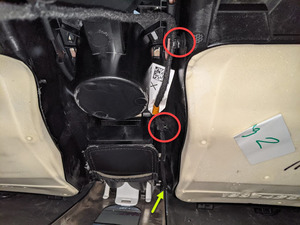

  9. Release the clips (x3) that attach the electrical harness to the 3rd row seat cup holder, and set the electrical harness aside.

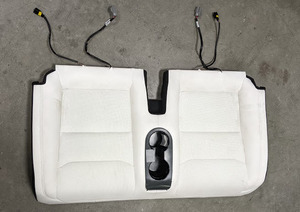

  10. Remove the 3rd row seat cushion from the vehicle.

Install

  1. Install the 3rd row seat cushion to the 3rd row seat frame.
  2. Fasten the clips (x3) that attach the electrical harness to the 3rd row seat cup holder.
  3. Connect the electrical harness to the 3rd row seat cup holder connector.
  4. Lower the front of the 3rd row seat cushion to the seat frame.
  5. Connect the electrical harness to the 3rd row seat cushion connectors (x4), slide the connectors onto the 3rd row harness trays, and then fasten the tabs.
  6. Fasten the clips (x4) that attach the 3rd row seat harness trays to the 3rd row seat frame.
  7. Install the trunk carpet into the trunk, and then slide the carpet onto the anchors.
  8. Install the trunk tub floor insulator.
  9. Install the trunk rear load floor.
  10. Close the liftgate.
