2022-06-17

Striker - Hood (Remove and Replace)

Correction code 11352902 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the front windows.
  2. Open the hood.

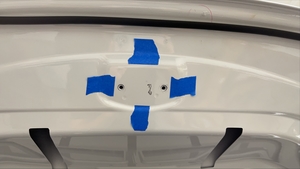

  3. Use masking tape to mark the position of the hood striker on the hood.

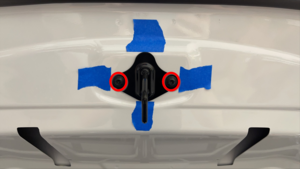

  4. Remove the bolts (x2) that attach the hood striker to the hood, and then remove the striker from the vehicle.
    18 Nm (13.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T40 socket

Install

  1. Position the hood striker onto the hood, and then install the bolts (x2) that attach the striker to the hood.
    18 Nm (13.3 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T40 socket
  2. Remove the masking tape.
  3. Raise the front windows and close the LH front door.
