Sensor - Ambient Air Temperature (Remove and Replace)

Correction code 18107202 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the front windows.
  2. Remove the front fascia assembly. See Fascia Assembly - Front (Remove and Install).

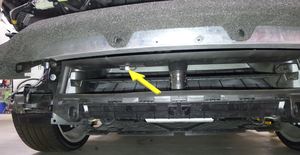

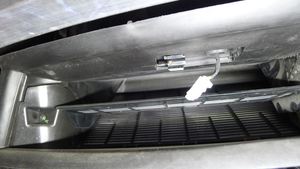

  3. Disconnect the ambient air temperature sensor electrical connector.

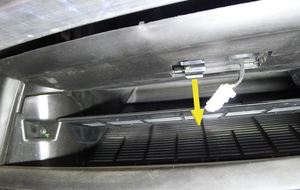

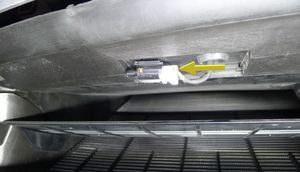

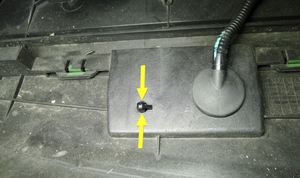

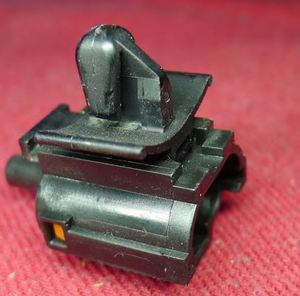

  4. Press the retaining arms on the clip on the ambient air temperature sensor, and then pull the sensor downward to remove it from the vehicle.

Install

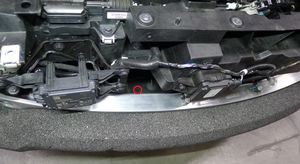

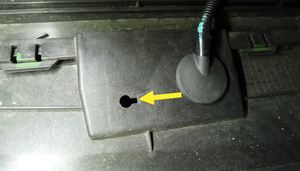

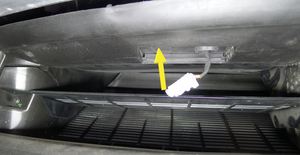

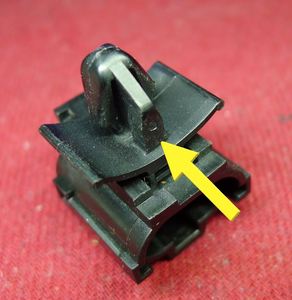

  1. Position the ambient air temperature sensor into the vehicle, align the datum with the opening in the active grille shutter assembly, and then install the sensor into the assembly.
  2. Connect the ambient air temperature sensor electrical connector.
  3. Install the front fascia assembly. See Fascia Assembly - Front (Remove and Install).
  4. Raise the front windows and close the LH front door.
