Wiper Blades (Adjust)

Correction code 17501700 0.05 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Procedure

  1. Open the LH front door.
  2. Lower the LH front window.

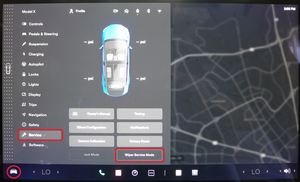

  3. On the touchscreen, touch Controls > Service > Wiper Service Mode.

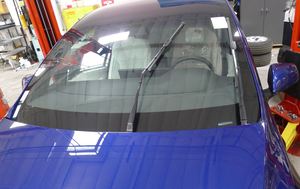

  4. Remove the LH driver side wiper blade. See Wiper Blades - Pair (Remove and Replace).
  5. Install the wiper adjustment tool on the LH wiper arm.
    Informational PurposesAn informational icon, calling your attention
    Note

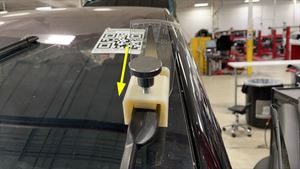

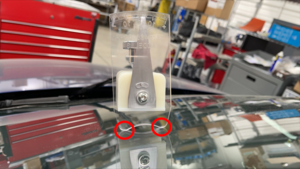

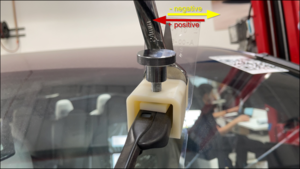

    Tighten the thumb screw to secure the tool to the LH wiper arm. Ensure the thumb screw is not overtightened as marring will occur to wiper arm, and that both plastic points are resting on the windshield.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • M3/Y Wiper adjustment tool - 1448466-00-A

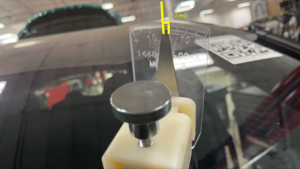

  6. Check the LH wiper arm angle and adjust as needed.
    Informational PurposesAn informational icon, calling your attention
    Note
    Spec: +4 degrees +/-3 degrees
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Combination wrench 12pt 24mm
    • M3/Y Wiper adjustment tool - 1448466-00-A
  7. Remove the wiper adjustment tool from the LH wiper arm.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION

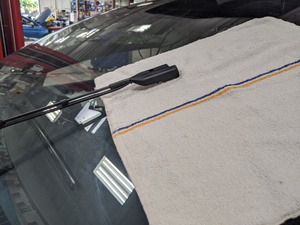

    Place a towel or shop rag under the wiper arm to prevent scratches on the windshield.
  8. Install the LH driver side wiper blade. See Wiper Blades - Pair (Remove and Replace).
  9. Remove the RH passenger side wiper blade. See Wiper Blades - Pair (Remove and Replace).
  10. Install the wiper adjustment tool on the RH wiper arm.
    Informational PurposesAn informational icon, calling your attention
    Note

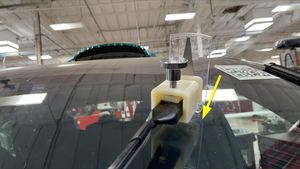

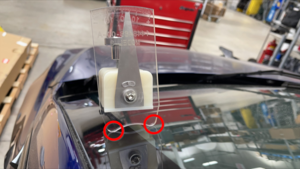

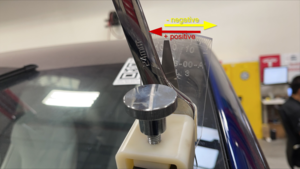

    Tighten the thumb screw to secure the tool to the RH wiper arm. Ensure the thumb screw is not overtightened as marring will occur to wiper arm, and that both plastic points are resting on the windshield.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • M3/Y Wiper adjustment tool - 1448466-00-A
  11. Check the RH wiper arm angle and adjust as needed.
    Informational PurposesAn informational icon, calling your attention
    Note
    Spec: +4 degrees +/-3 degrees
  12. Remove the wiper adjustment tool from the RH wiper arm.
    Informational PurposesAn informational icon, calling your attention
    Note

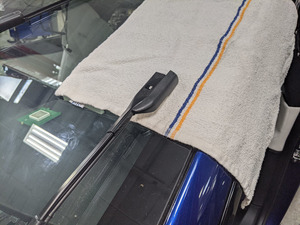

    Place a towel or shop rag under the wiper arm to prevent scratches on the windshield.
  13. Install the RH passenger side wiper blade. See Wiper Blades - Pair (Remove and Replace).
  14. On the touchscreen, touch Controls > Service > Wiper Service Mode.
  15. Raise the LH front window.
  16. Close the LH front door.
