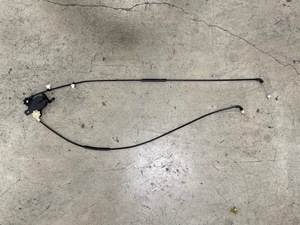

Release Cable - EZ Entry - 2nd Row - RH (7 Seat) (Remove and Replace)

Correction code 13024802 1.68 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the RH 2nd row seat assembly from the vehicle. See Seat Assembly - 2nd Row - RH (7 Seat) (Remove and Replace).
  2. Fold the RH 2nd row seat back to the upright position.
  3. Remove the RH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
  4. Remove the RH 2nd row recliner cover. See Cover - Recliner - 2nd Row - LH (Remove and Replace).
  5. Remove and discard the bolt that attaches the RH 2nd row seatbelt to the seat assembly, and then remove the seatbelt from the assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T50 socket

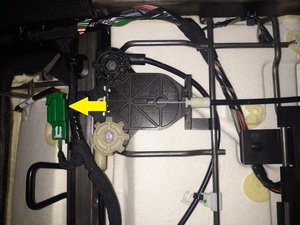

  6. Disconnect the RH 2nd row seatbelt buckle harness connector, and then release the clips (x2) that attach the connector and harness to the seat assembly.

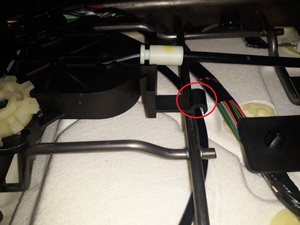

  7. Remove the bolt that attaches the RH 2nd row seatbelt buckle to the seat assembly, and then remove the buckle from the assembly.

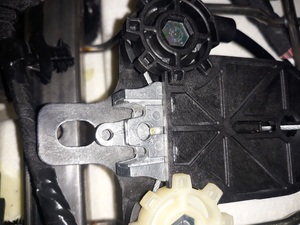

    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T50 socket

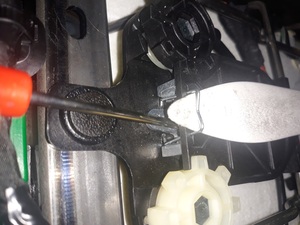

  8. Release the J-clips (x6) that attach the RH 2nd row seat cushion trim to the seat bracket assembly, and then release the trim from the bracket.
  9. Disconnect the RH 2nd row heater and seat belt reminder electrical connectors, and then release the clip that attaches the harness to the seat assembly.

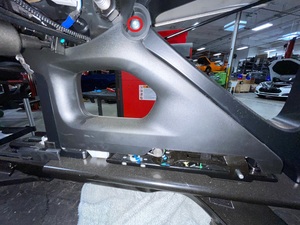

  10. Remove the RH 2nd row seat cushion sub-assembly from the seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note

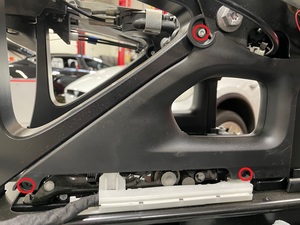

    Guide the harness and tension flaps underneath the seat back.

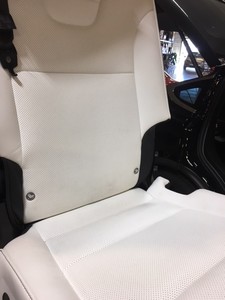

  11. Release the J-hook that attaches the RH 2nd row seat back upholstery to the seat assembly.

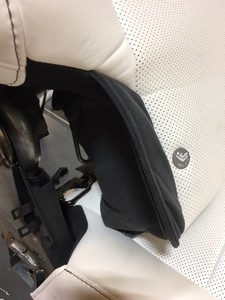

  12. Unzip the RH 2nd row seat back upholstery on LH and RH sides of the backrest cover, release the Velcro strips (x2) that attach the upholstery to the seat back, and then fold the seat back over the headrest for access.
    Informational PurposesAn informational icon, calling your attention
    Note

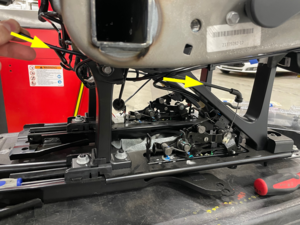

    The ends of zippers are tucked underneath the upholstery.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use a pick to help move the zipper.
  13. Release the clips (x5) that attach the RH 2nd row seat back plastic to the seat back assembly, and then remove the seat back plastic from the assembly.

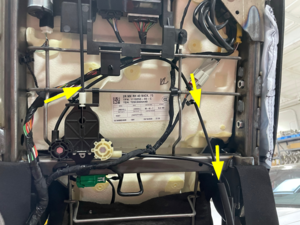

  14. Release the clip that attaches the RH 2nd row seat harness to the seat frame.
  15. Disconnect the RH 2nd row seat heater electrical connector.
  16. Release the clip that attaches the RH 2nd row seat heater connector to the seat frame.

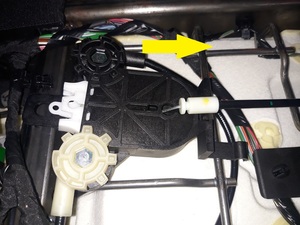

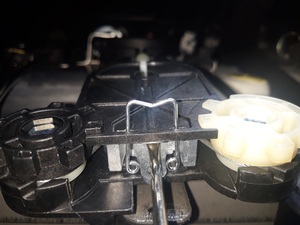

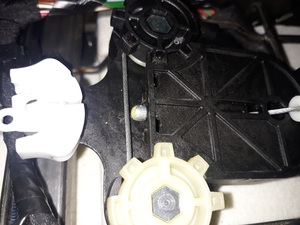

  17. Remove and discard the metal clip from the RH 2nd row seat actuator slider assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Relieve tension on the metal clip by moving the slider inwards into the housing.
  18. Release the actuator cable from the actuator slide assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the cable locating plastic.

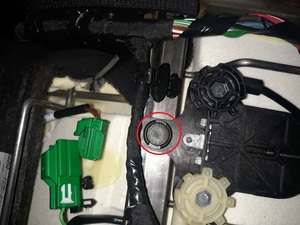

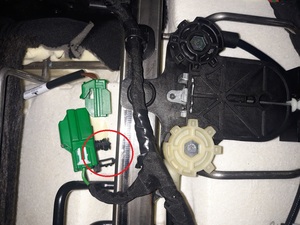

  19. Remove the clip that attaches the RH 2nd row seat actuator slider assembly to the seat frame.
  20. Release the clip that attaches the RH 2nd row seat actuator slider assembly to the seat frame.
  21. Move the RH 2nd row actuator slider assembly closer to the cable to relieve tension.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to kink or damage the cable.

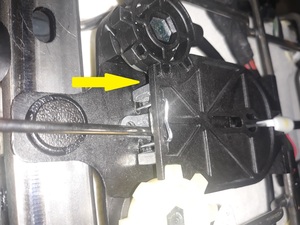

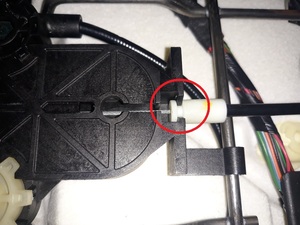

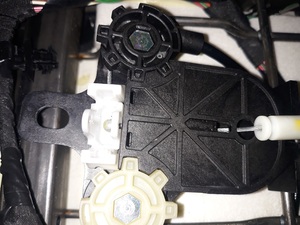

  22. Release the cable end fitting from the slider.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to kink or damage the cable.
    Informational PurposesAn informational icon, calling your attention
    Note

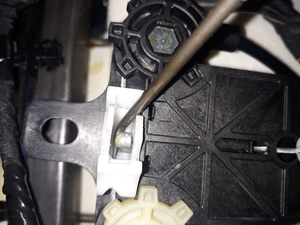

    Flip slider vertically. Use a 90 degree pick to release the end fitting from the open slot.
  23. Fold the RH 2nd row seat back to the upright position.

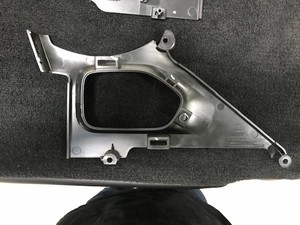

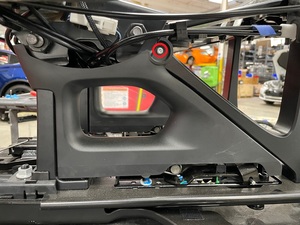

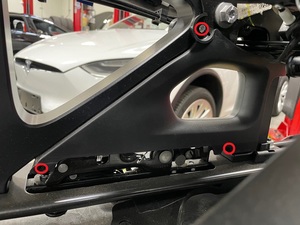

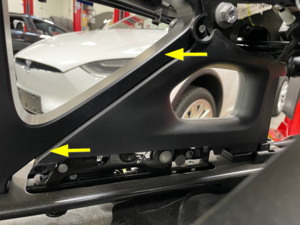

  24. Remove the screws (x3) that attach the inboard seat riser cover to the RH 2nd row outboard seat riser.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  25. Remove the screw that attaches the outboard seat riser cover to the RH 2nd row outboard seat riser.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket

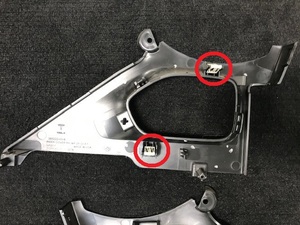

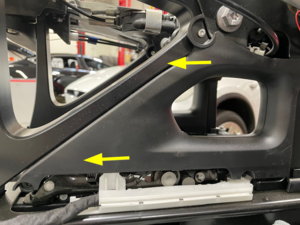

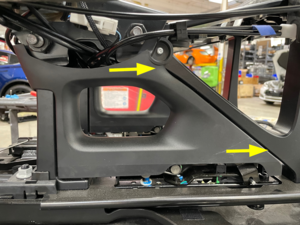

  26. Release the clips (x2) that attach the outboard seat riser cover to the RH 2nd row outboard seat riser, and then remove the inboard and outboard covers from the seat riser.
  27. Remove the screws (x3) that attach the inboard seat riser cover to the RH 2nd row inboard seat riser.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  28. Remove the screw that attaches the outboard seat riser cover to the RH 2nd row inboard seat riser.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  29. Release the clips (x2) that attach the outboard seat riser cover to the RH 2nd row inboard seat riser, and then remove the inboard and outboard covers from the seat riser.
  30. Release the lower portion of the back cushion from the seat frame.

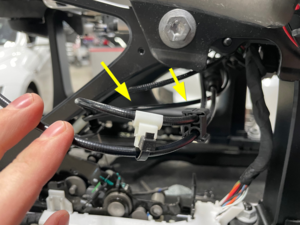

  31. Release the cable clips (x2) from the RH 2nd row seat RH side of the seat riser.

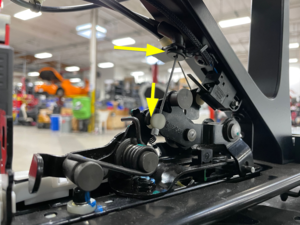

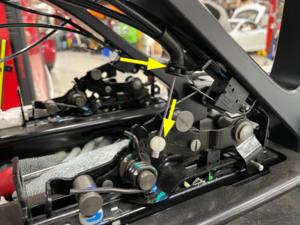

  32. Release the clips (x2) that attach the RH 2nd row EZ entry release cable to the outer track actuator.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use a plastic trim tool to pry the cable clip away from the cable retainer.

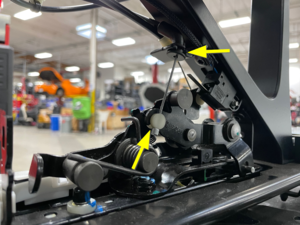

  33. Release the clips (x2) that attach the RH 2nd row EZ entry release cable to the inner track actuator, and then remove the release cable from the seat assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use a plastic trim tool to pry the cable clip away from the cable retainer.

Install

  1. Position the RH 2nd row EZ entry release cable into the RH 2nd row seat.
  2. Secure the clips (x2) that attach the RH 2nd row EZ entry release cable to the outer track actuator.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Firmly press the cable clip into the cable retainer until the cable is secured to the track actuator.
  3. Install cable onto 40 RH inner track actuator
    Informational PurposesAn informational icon, calling your attention
    Note
    2x clips, Firmly press cable clip into cable retainer till cable is secured to track actuator
  4. Secure the cable clips (x2) at the RH 2nd row seat RH side of the seat riser.

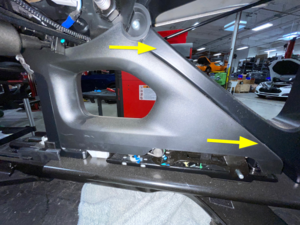

  5. Position the inboard and outboard seat riser covers to the RH 2nd row inboard seat riser, and then secure the clips (x2) that attach the covers to the seat riser. Repeat this step for the outboard seat riser.
  6. Install the screws (x3) that attach the inboard seat riser cover to the RH 2nd row outboard seat riser.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  7. Install the screw that attaches the outboard seat riser cover to the RH 2nd row outboard seat riser.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T20 socket
  8. Repeat steps 6 and 7 for the inboard seat riser.
  9. Reinstall the lower portion of the seat back cushion.
  10. Fold the RH 2nd row seat to the down position.

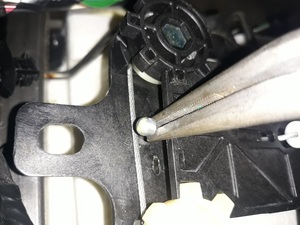

  11. Install the cable end fitting into the slider.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to kink or damage the cable.
    Informational PurposesAn informational icon, calling your attention
    Note

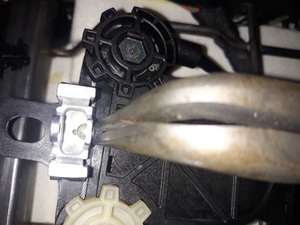

    Install the cable vertically. Use bent needle nose pliers to hold the cable end fitting in place, and then insert the end fitting into the slider opening.
  12. Secure the actuator cable to the actuator slide assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to damage the cable locating plastic.
  13. Install the clip that attaches the RH 2nd row seat actuator slider assembly to the seat frame.
  14. Secure the clip that attaches the RH 2nd row seat actuator slider assembly to the seat frame.

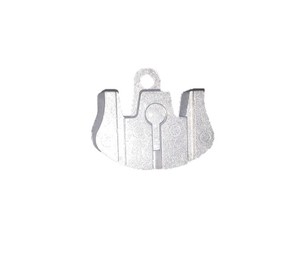

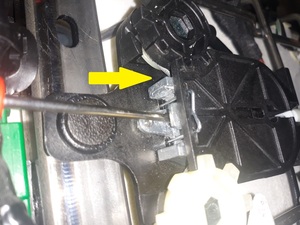

  15. Install a new metal clip into the RH 2nd row seat actuator slider assembly.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to deform or damage the clip.
    Informational PurposesAn informational icon, calling your attention
    Note
    Apply forward pressure to the slider to install the metal clip.
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify operation to ensure proper functionality.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use the flat side of a plastic trim tool to aid in installation.
  16. Secure the clip that attaches the RH 2nd row seat harness to the seat frame.
  17. Secure the clip that attaches the RH 2nd row seat heater connector to the seat frame.
  18. Connect the RH 2nd row seat heater electrical connector.
  19. Position the RH 2nd row seat back plastic to the seat back assembly, and then secure the clips (x5) that attach the seat back plastic to the assembly.
  20. Fold the seat back upholstery into position, secure the Velcro strips (x2), and then zip the upholstery on the LH and RH sides of backrest cover.
    Informational PurposesAn informational icon, calling your attention
    Note
    The ends of zippers are tucked underneath the upholstery.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use a pick to help move the zipper.
  21. Secure the J-hook that attaches the RH 2nd row seat back upholstery to the seat assembly.
  22. Position the RH 2nd row seat cushion into the seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Guide the harness and tension flaps underneath the seat back.
  23. Secure the clip that attaches the seat harness to the RH 2nd row seat assembly, and then connect the heater and seat belt reminder electrical connectors.
  24. Secure the J-clips (x6) that attach the RH 2nd row seat cushion trim to the seat bracket assembly.
  25. Slide the upper tabs of the RH 2nd row seat inner hinge cover onto the seat frame, and then secure the clip and tabs (x4) that attach the cover to the seat assembly.
  26. Position the RH 2nd row seatbelt buckle to the seat assembly, and then install the bolt that attaches the buckle to the assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T50 socket
  27. Secure the clips (x2) that attach the RH 2nd row seatbelt buckle connector and harness to the seat assembly, and then connect the seatbelt buckle connector.
  28. Position the RH 2nd row seatbelt to the seat assembly, and then install a new bolt that attaches the seatbelt to the assembly.
    45 Nm (33.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • T50 socket
  29. Install the RH 2nd row recliner cover. See Cover - Recliner - 2nd Row - LH (Remove and Replace).
  30. Install the RH 2nd row recliner lever. See Lever - Recliner - 2nd Row - LH (Remove and Replace).
  31. Fold the RH 2nd row seat back to the down position.
  32. Install the RH 2nd row seat assembly. See Seat Assembly - 2nd Row - RH (7 Seat) (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to redeploy software after install.
