Switch - Window - Front Passenger (Remove and Replace)

Correction code 11502702 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the RH front door and lower the front windows.
  2. Remove the RH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace).
  3. Remove the RH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).

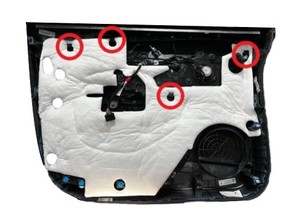

  4. Release the hooks (x4) that attach the RH front door trim NVH pad to the RH front door trim panel, and then remove the pad from the panel.

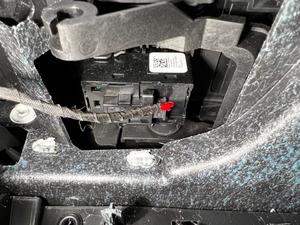

    Figure 1. LH shown; RH similar

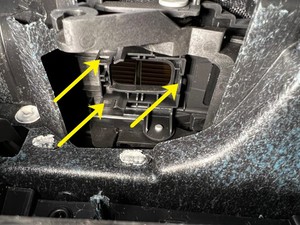

    Figure 2. LH shown; similar

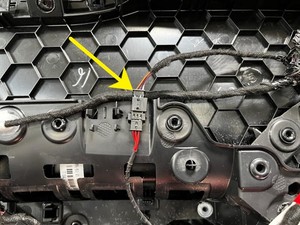

  5. Disconnect the front passenger window switch electrical connector.

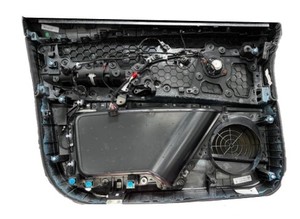

  6. Carefully release the tabs (x3) that attach the front passenger window switch to the RH front door trim panel, and then remove the switch from the panel.

Install

  1. Position the front passenger window switch into the RH front door trim panel, and then secure the tabs (x3) that attach the switch to the panel.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure the tabs are fully engaged into the door panel.
  2. Connect the front passenger window switch electrical connector.
  3. Position the RH front door trim NVH pad into the RH front door trim panel, and then secure the hooks (x4) that attach the pad to the panel.

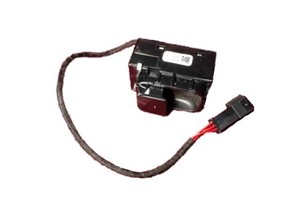

    Figure 3. LH shown; similar

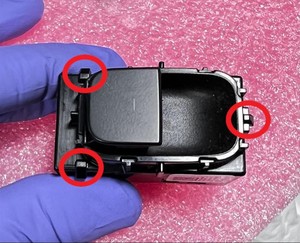

    Figure 4. LH shown; RH similar
  4. Install the RH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace).
  5. Install the RH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace).
  6. Raise the front windows and close LH front door.
