Trim - Headrest - Driver (Remove and Replace)

Correction Code: 13042002 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Move the driver seat to the lowest position.

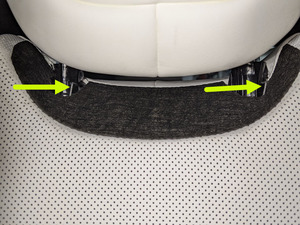

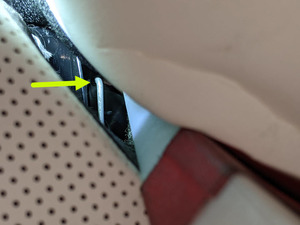

  3. Carefully insert the trim tool between the driver headrest trim and seat following the upper seam, and then release the clips toward the LH side of the vehicle while lifting the headrest upward to remove it from the seat assembly.

Install

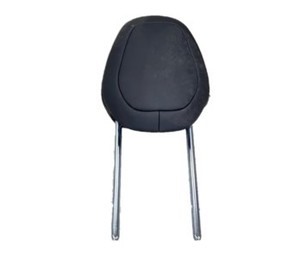

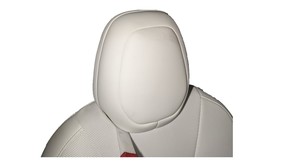

  1. Install the driver headrest trim into the seat assembly.
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify the locking clips are positioned properly prior to installing the headrest.
  2. Move the driver seat to its original position.
  3. Raise the LH front window and close the LH front door.
