Bezel - Striker - Racetrack - LH (Remove and Replace)
Correction code
15189102
0.06
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Open LH front door and lower the LH front window.
- Open LH rear door.
-

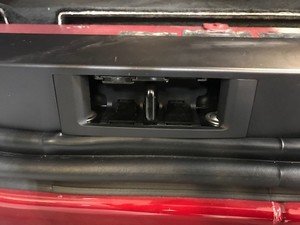

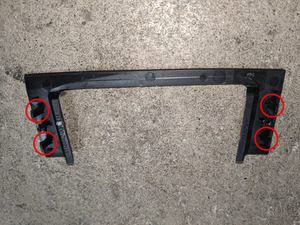

Release the tabs (x4) that attach the
LH racetrack striker bezel to the vehicle, and then remove the bezel from the
vehicle.
Install
-
Position the LH racetrack striker bezel into the vehicle, and then fasten the tabs
(x4) that attach the bezel to the vehicle.
- Close the LH rear door.
- Raise the LH front window and close the LH front door.
