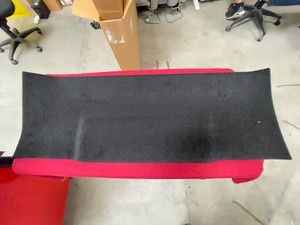

Carpet - Rear Trunk (5 Seat) (Remove and Replace)

Correction code 15245402 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Fold the 2nd row seat backs to the down position.
  2. Remove the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  3. Remove the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).

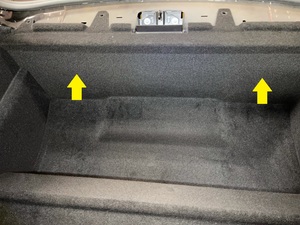

  4. Remove the trunk tub floor.
  5. Remove the trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).

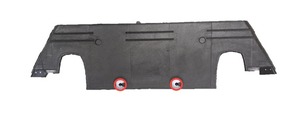

  6. Release the clips (x2) that attach the 2nd row rear floor board to the vehicle, and then peel the outer corners upward to guide the floor board out of the vehicle.

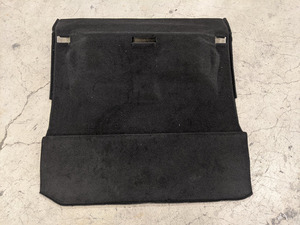

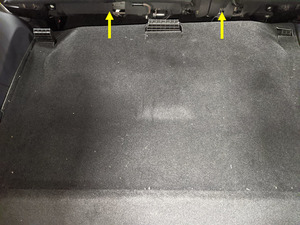

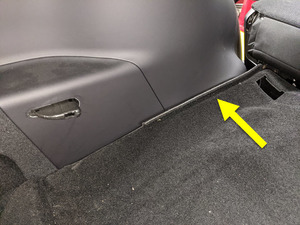

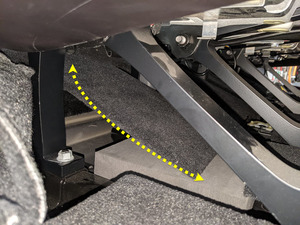

  7. Starting from the front, lift the rear trunk carpet over the harpoon brackets, slide the carpet under the side trunk trim, and then remove the carpet through the liftgate.

Install

  1. Install the rear trunk carpet into the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Seat the rear edge first, and then seat the carpet over the harpoon brackets and tuck under the trunk side trim.

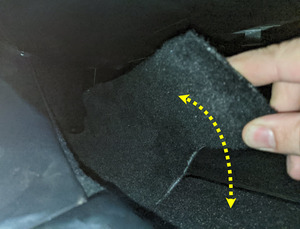

  2. Peel up the outer corners of the 2nd row rear carpet to guide it into position, and then install the clips (x2) that attach the floor board to the vehicle.
  3. Install the trunk gap hider. See Gap Hider - Trunk (5 Seat) (Remove and Replace).

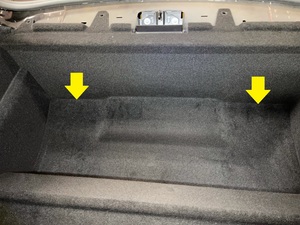

  4. Install the trunk tub floor.
  5. Install the front trunk load floor. See Trunk Load Floor - Front (Remove and Replace).
  6. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace).
  7. Return the 2nd row seats to the vertical position.
