Tuner - FM / HD / XM (Remove and Replace)

Correction code 21220102 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2024-02-27: Added Toolbox 3 steps.

Remove

  1. Remove the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace)

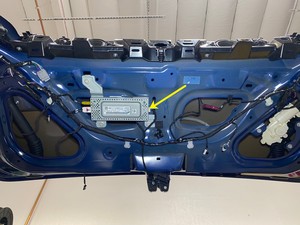

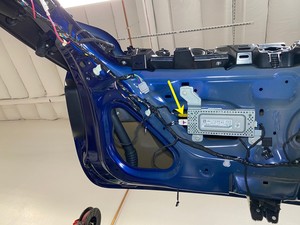

  2. Disconnect the electrical connectors (x2) and coax connector from the FM HD tuner.

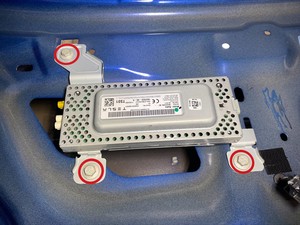

  3. Remove the bolts (x3) that attach the HD FM tuner to the liftgate, and then remove the tuner from the liftgate.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

Install

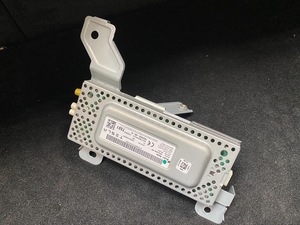

  1. Position the HD FM tuner into the liftgate, and then install the bolts (x3) that attach the tuner to the liftgate.
    8 Nm (5.9 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  2. Connect the electrical connectors (x2) and coax connector to the FM HD tuner.
  3. Install the lower liftgate trim. See Trim - Liftgate - Lower (Remove and Replace)
  4. Connect a laptop with Toolbox 3 to the vehicle.
  5. In Toolbox, click the Actions tab, and then type "Tuner" in the search field.
  6. Click the play button next to PING-BASH_TUNER, and then click Run.
  7. Disconnect Toolbox and remove the laptop from the vehicle.
