Duct - Instrument Panel - Driver (Remove and Replace)

Correction code 18108002 1.32 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the instrument panel sub-assembly from the vehicle. See Sub Assembly - Instrument Panel (Remove and Replace).
    Informational PurposesAn informational icon, calling your attention
    Note
    It is not necessary to remove components from the sub-assembly after the entire assembly has been removed from the instrument panel.

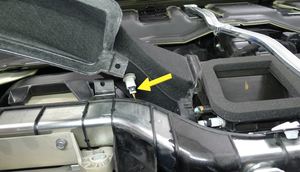

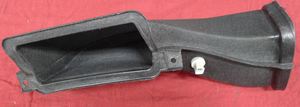

  2. Release the rivets (x2) that attach the driver instrument panel duct to the instrument panel, disconnect the electrical connector, and then slide the duct outward and up to remove it from the HVAC unit assembly.

Install

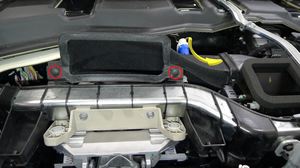

  1. Position the driver instrument panel duct into the instrument panel, connect the electrical connector, and then slide the duct inward and into the HVAC unit assembly to secure the rivets (x2).
  2. Install the instrument panel sub-assembly into the vehicle. See Sub Assembly - Instrument Panel (Remove and Replace).
