Bumper - Sprung - Hood (Remove and Replace)

Correction code 11339112 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the hood.

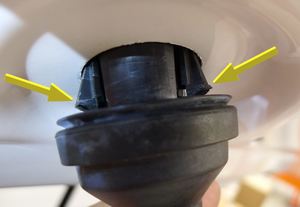

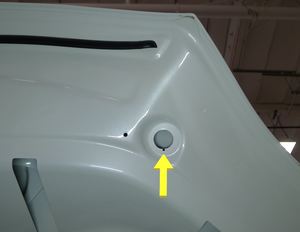

  2. Release the tabs (x3) and datum that attach the hood sprung bumper to the hood, and then remove the bumper from the hood.
    Informational PurposesAn informational icon, calling your attention
    Note

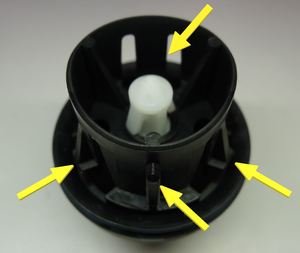

    The datum is located at the 6 o'clock position. The tabs are located at the 12, 4, and 7 o'clock positions.

Install

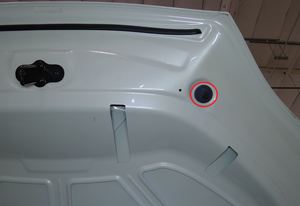

  1. Install the hood sprung bumper into the hood.
    Informational PurposesAn informational icon, calling your attention
    Note
    The datum is located at the 6 o'clock position. The tabs are located at the 12, 4, and 7 o'clock positions.
    Informational PurposesAn informational icon, calling your attention
    Note
    Ensure all the tabs are engaged and the bumper is flush to the hood.
  2. Close the hood.
