Panel - Door Trim - Rear - Upper - LH (Remove & Replace)

Correction code 15132302 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the LH falcon wing door.
  3. Remove the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).

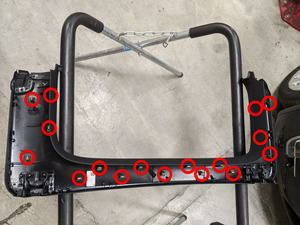

  4. Release the clips (x17) that attach the LH upper rear door trim panel to the LH rear door, and then remove the panel from the door.

Install

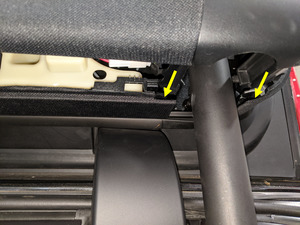

  1. Position the LH upper rear door trim panel onto the LH rear door, align the strut cover, and then secure the clips (x17) that attach the panel to the door.
  2. Install the LH rear door trim lower garnish. See Garnish - Lower - Door Trim - Rear - LH (Remove and Replace).
  3. Close the LH falcon wing door.
  4. Raise the LH front window and close the LH front door.
