Taillight - LH (Remove and Replace)

Correction code 17402002 1.80 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the charge port assembly. See GUID-E979D6DF-53DB-4541-9ED5-6E3A5634EE79.html.
  2. Release the locking tab, and then disconnect the LH taillight electrical connector.

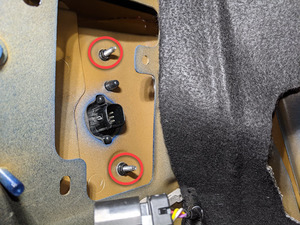

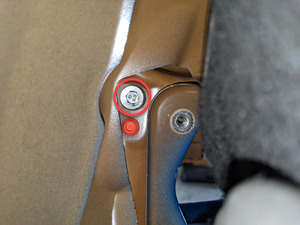

  3. Remove the fasteners (x3) that attach the LH taillight to the vehicle, and then remove the taillight from the vehicle.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8 mm socket

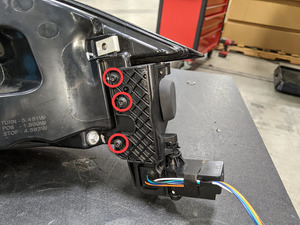

  4. Remove the bolts (x3) that attach the charge port door assembly to the LH taillight assembly, and then remove the charge port door from the taillight assembly.
    1.3 Nm (1.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket

Install

  1. Position the charge port door assembly to the LH taillight assembly, and then install the bolts (x3) that attach the charge port door to the taillight assembly.
    1.3 Nm (1.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    Verify the locating studs are correctly aligned.
    Informational PurposesAn informational icon, calling your attention
    Note

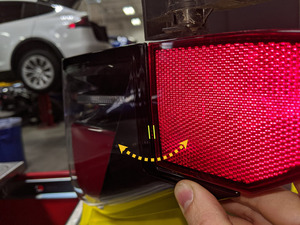

    Ensure the charge port door cycles without contacting the taillight.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T20 socket
  2. Position the LH taillight assembly into the vehicle, and then install the fasteners (x3) that attach the assembly to the vehicle.
    2.5 Nm (1.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 8 mm socket

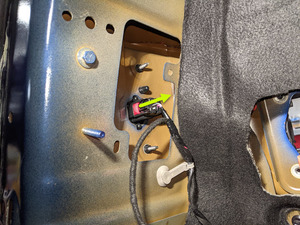

  3. Connect the LH taillight electrical connector, and then secure the connector lock.
  4. Install the charge port assembly. See GUID-E979D6DF-53DB-4541-9ED5-6E3A5634EE79.html.
