Back Panel - Headrest - 3rd Row - LH (Remove and Replace)

Correction code 13094702 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the liftgate.

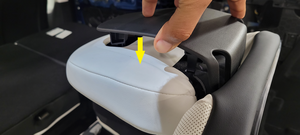

  2. Fold the LH 3rd row head headrest into the down position/
    Informational PurposesAn informational icon, calling your attention
    Note
    Do not fold the entire seat back to the down position.

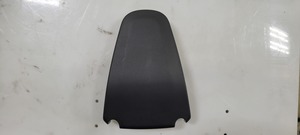

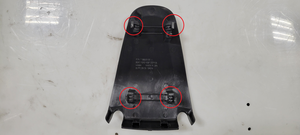

  3. Release the clips (x4) that attach the LH 3rd row headrest back panel to the headrest, and then remove the back panel from the headrest.
    Informational PurposesAn informational icon, calling your attention
    Note

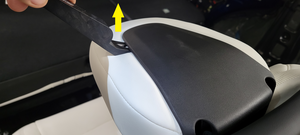

    Pry up on the top of the back panel to release the clips.

Install

  1. Position the LH 3rd row headrest back panel onto the headrest, and then secure the clips (x4) that attach the back panel to the headrest.
  2. Fold the headrest to the original position.
  3. Close the liftgate.
