Correction code 17107702 17107802 0.42 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure wearing proper PPE when performing the below procedure. NOTE: See Ergonomic Precautions for safe and healthy working practices.

1. Open the LH front door.
2. Lower the LH front window.
3. Raise and support the vehicle.





4. Open the hood.



5. Remove the rear underhood apron.





6. Remove the RH underhood apron.









7. Remove the LH underhood apron.









8. Remove the front underhood apron.





9. Remove the underhood storage unit access panel.





10. Remove the underhood storage unit carpet.





11. Remove the underhood storage unit from the vehicle.

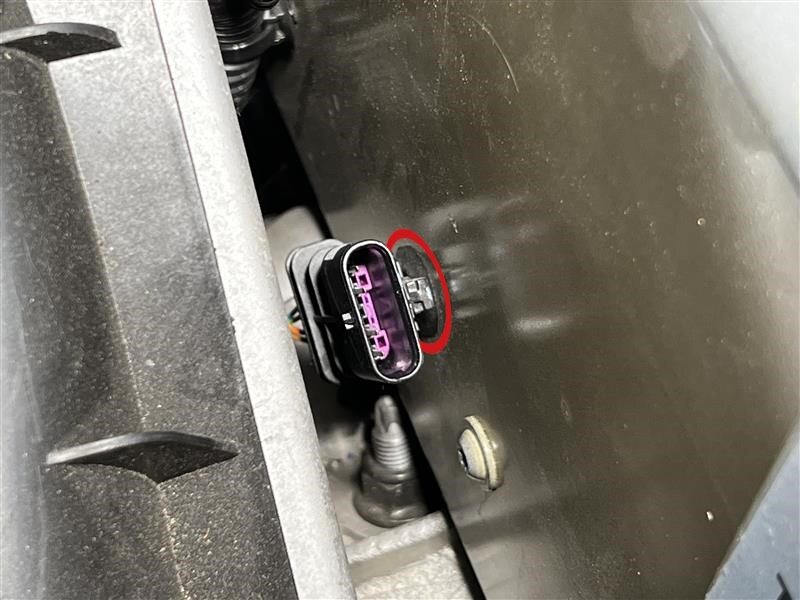

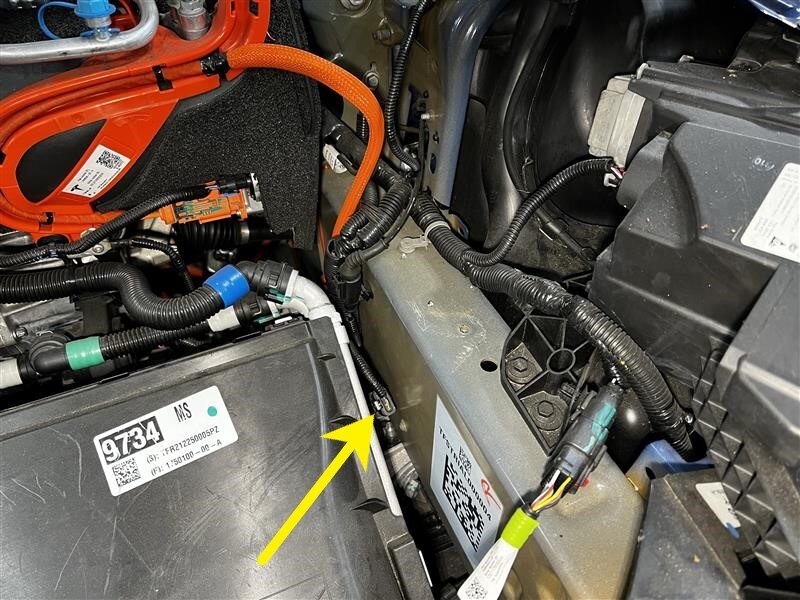

12. Disconnect active noise cancellation harness connector from frunk harness
    Note

    1x connector, Release locking tab, 1x harness clip, Release clip securing active noise cancellation harness connector onto body

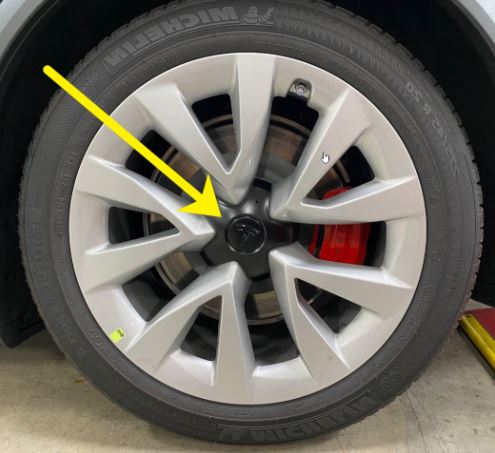

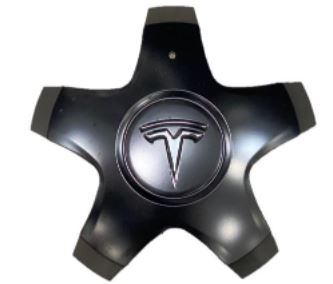

13. Remove the LH front wheel center cap.

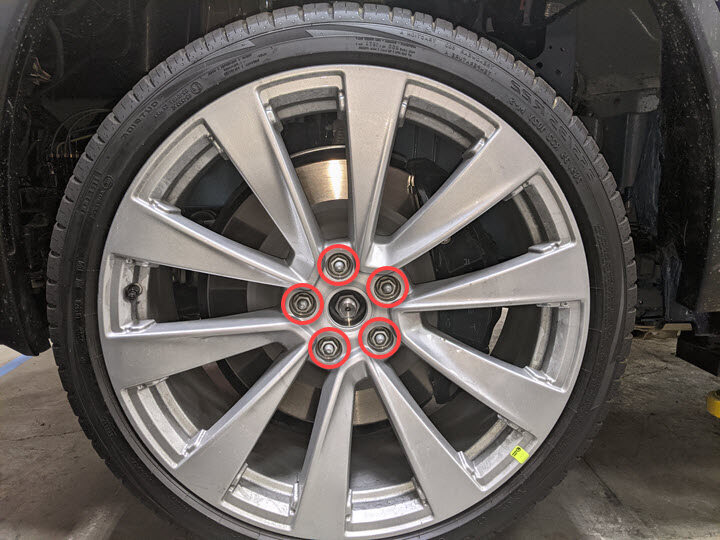

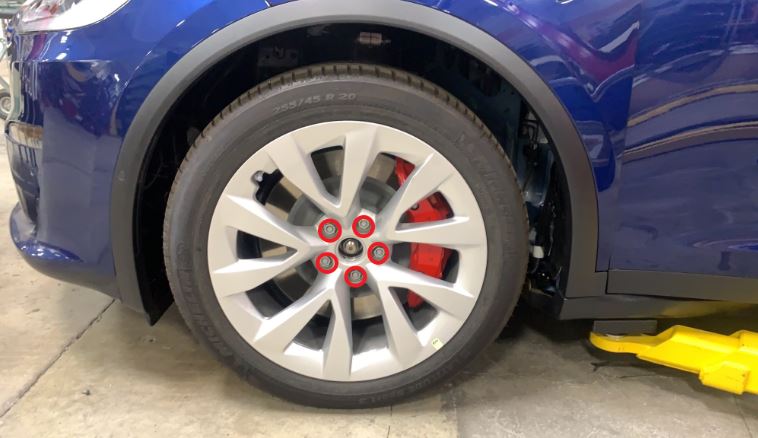

14. Loosen LH front wheel
    Note

    5x nuts, 21mm, 175 Nm

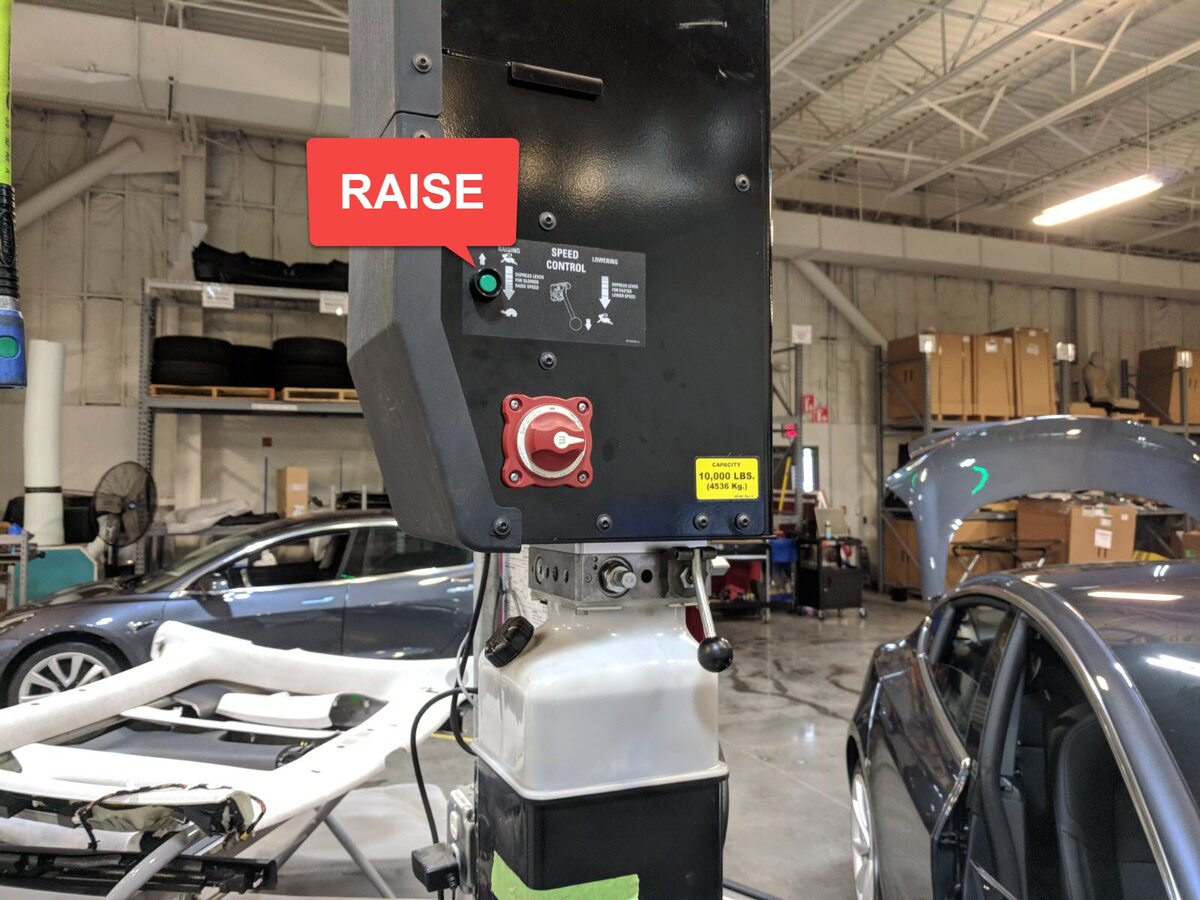

15. Raise vehicle partially and lower onto locks
    Note

    Set vehicle to comfortable working height, Make sure there's an audible click of the locks on both sides before lowering, otherwise vehicle may tilt to the side





16. Remove the LH front wheel.

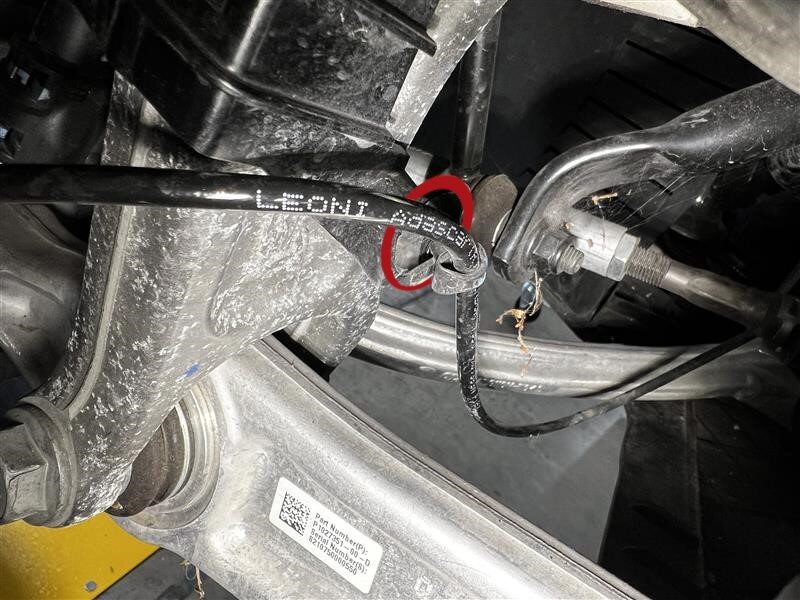

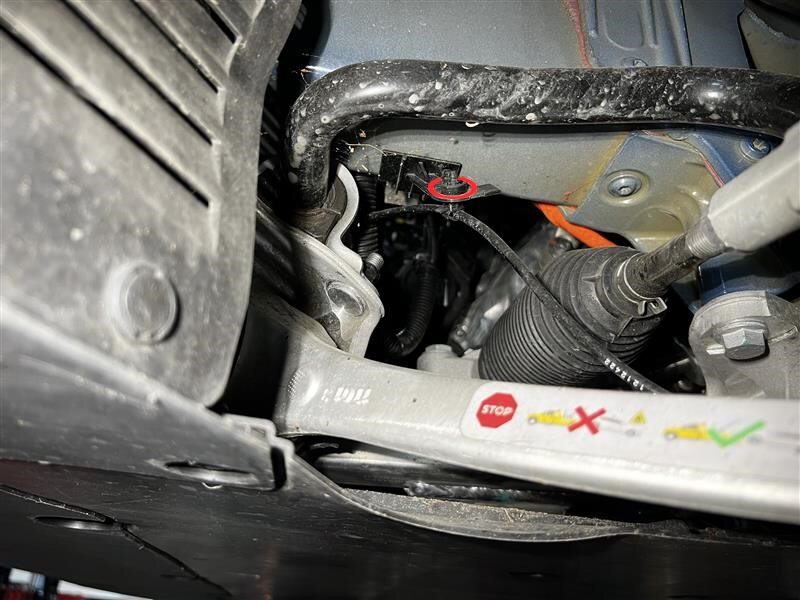

17. Release clips securing active noise cancellation harness onto bracket
    Note

    2x harness clip

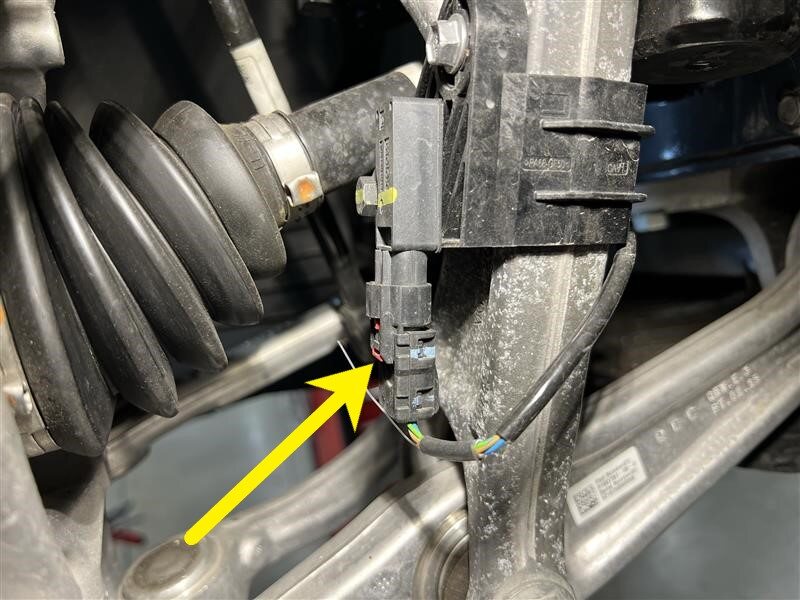

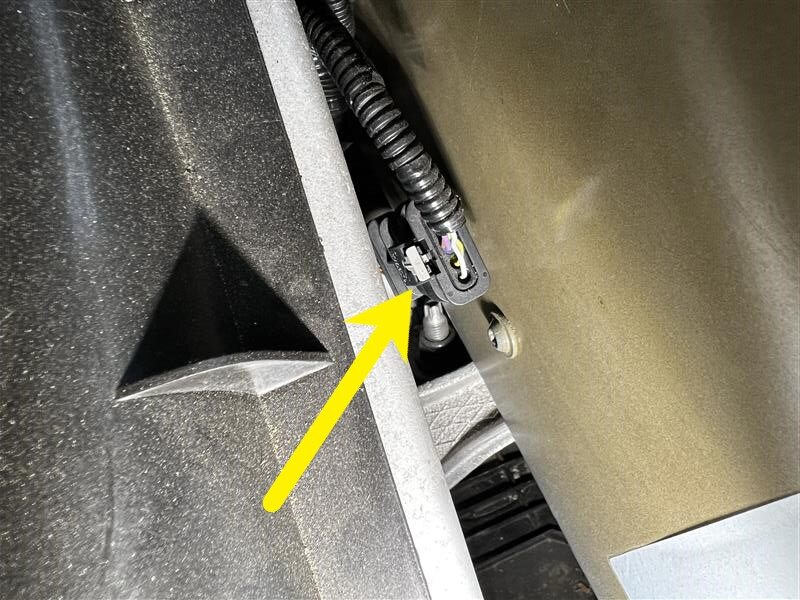

18. Disconnect active noise cancellation harness connector from sensor and remove harness from vehicle
    Note

    1x connect, Release locking tab



19. Connect active noise cancellation harness onto sensor
    Note

    1x connect, Secure locking tab

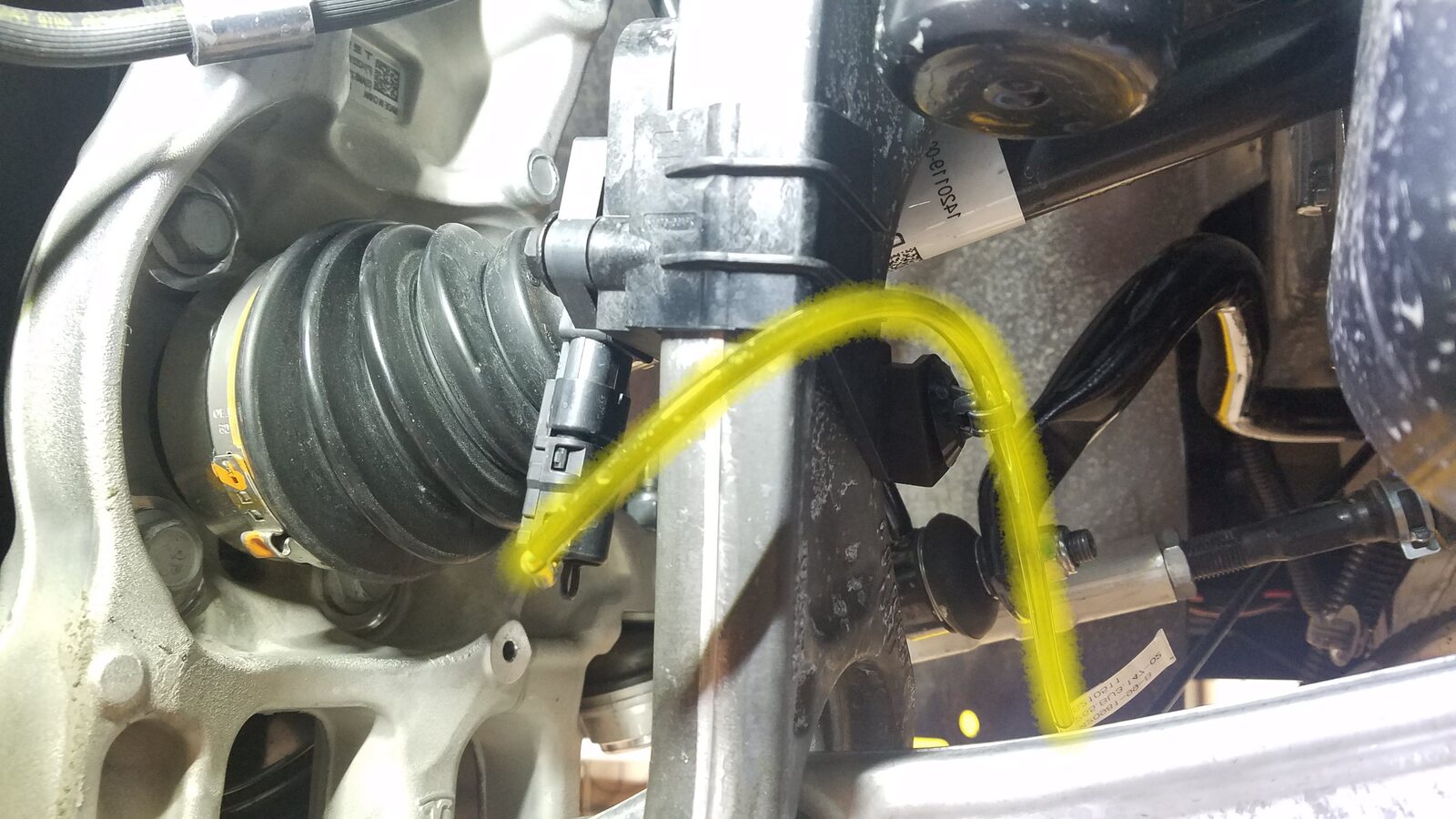

20. Position active noise cancellation harness into place
    Note

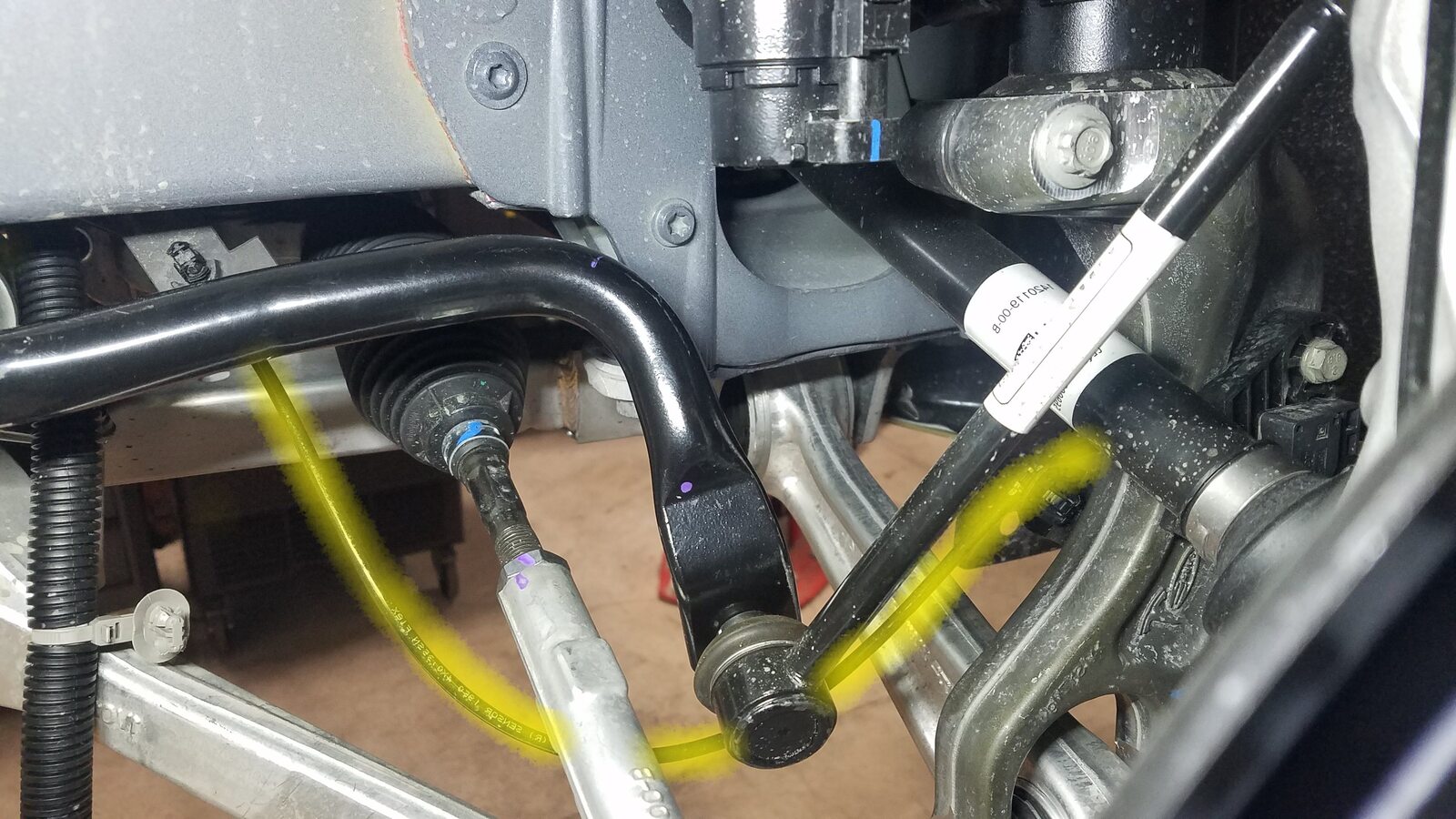

    Ensure the harness is routed above the lower links and below the tie rod and halfshaft





21. Install clips securing active noise cancellation harness onto bracket
    Note

    2x harness clip





22. Install the LH front wheel.

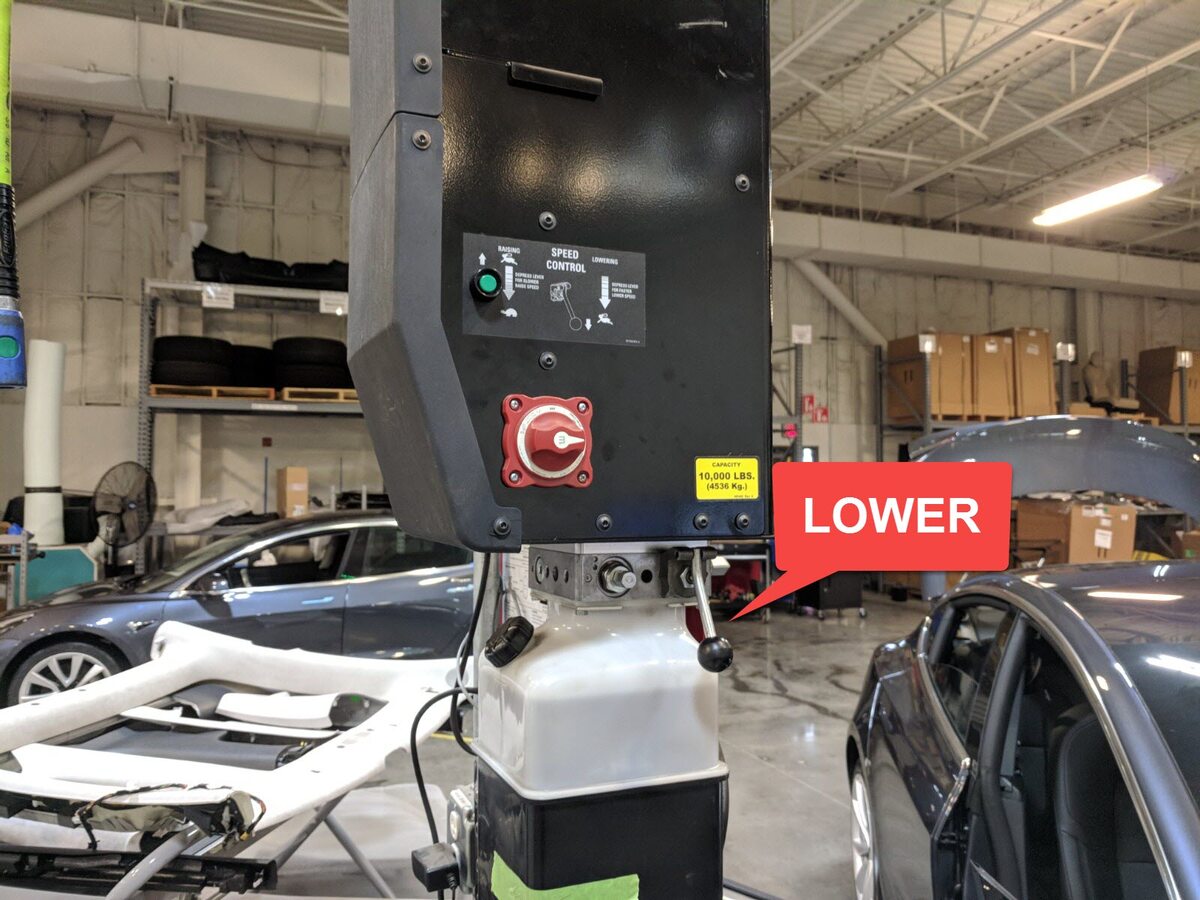

23. Lower vehicle until tires are touching ground
    Note

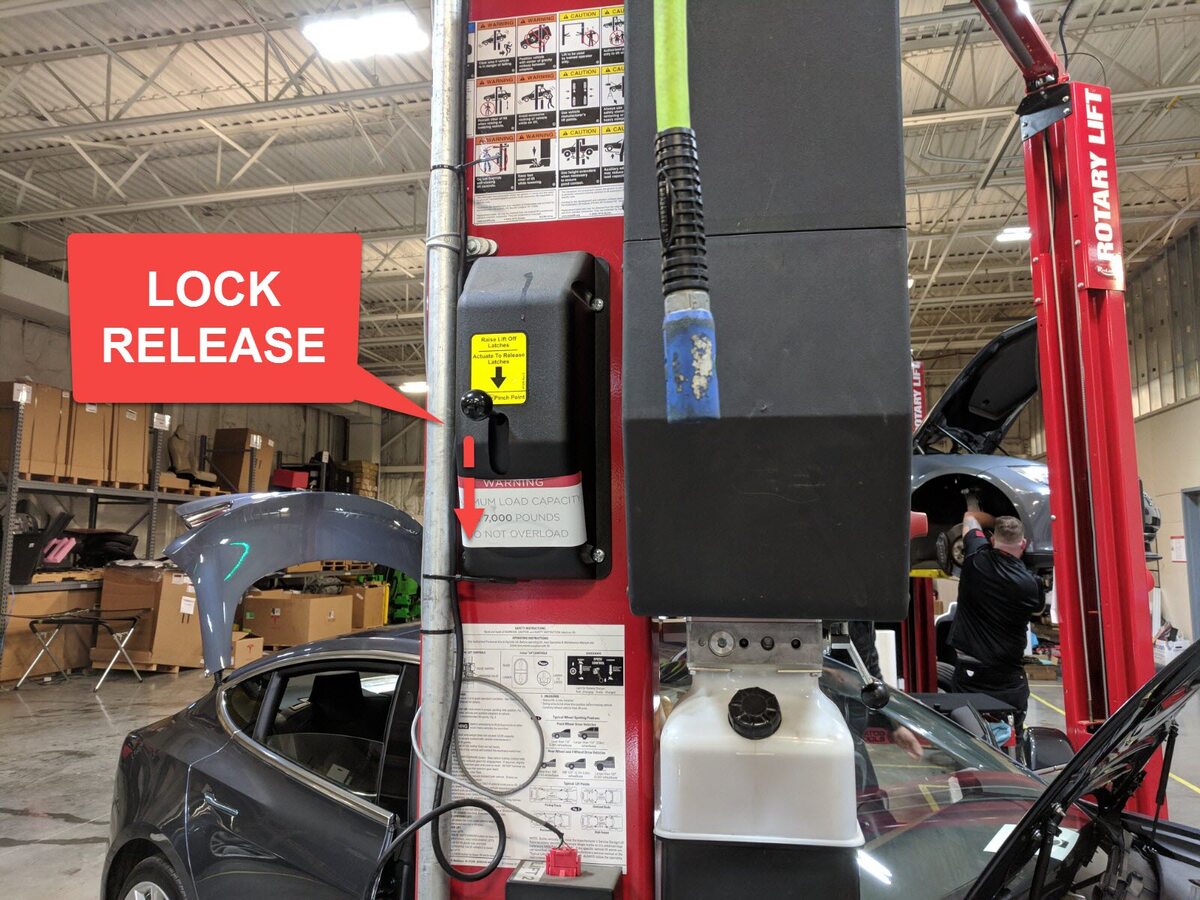

    Raise lift off locks, then hold lock release lever to keep locks free while vehicle is lowered

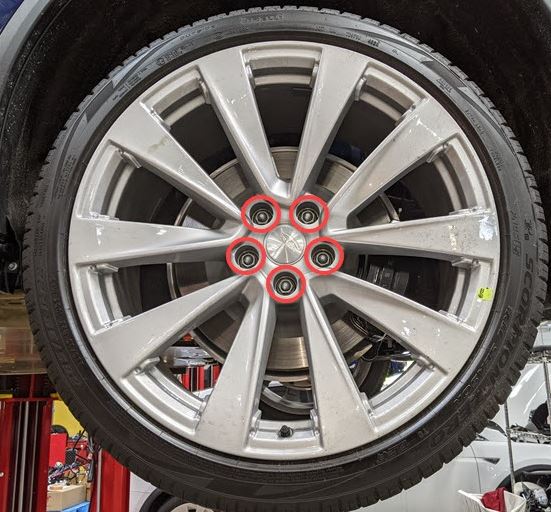

24. Torque the LH front wheel lug nuts.



25. Install the LH front wheel center cap.





26. Connect active noise cancellation harness connector to frunk harness
    Note

    1x connector, Secure locking tab, 1x harness clip, Install clip securing active noise cancellation harness connector onto body







27. Install the underhood storage unit.



28. Install the underhood storage unit carpet.





29. Install the underhood storage unit access panel.





30. Install the front underhood apron.





31. Install the LH underhood apron.









32. Install the RH underhood apron.









33. Install the rear underhood apron.





34. Close the hood.
35. Lower and remove the vehicle from the lift.



36. Raise the LH front window.
37. Close the LH front door.
