Decor - Trim - Front Door - LH (Remove and Replace)

Correction code 15131002 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.

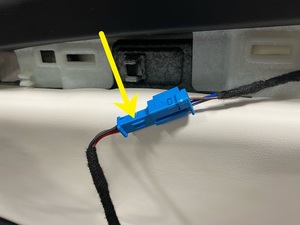

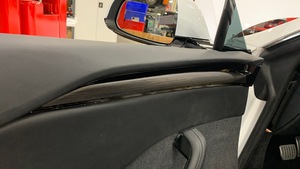

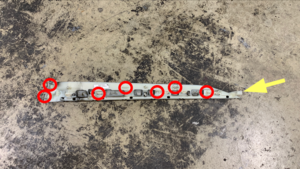

  2. Release the clips (x7) and hook that attach the LH front door trim decor to the LH front door trim panel, disconnect the electrical connector, and then remove the decor from the panel.
    Informational PurposesAn informational icon, calling your attention
    Note
    Release the front portion of the decor first, and then move rearward.
    Informational PurposesAn informational icon, calling your attention
    Note
    The clips will be retained within the door trim panel.

Install

  1. Position the LH front door trim decor onto the LH front door trim panel, connect the electrical connector, and then slide the hook into the trim panel and fully seat the clips (x7).
  2. Raise the LH front window and close the LH front door.
