Cladding - Door - Front - LH (Remove & Replace)

Correction code 12204002 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2024-04-18: Added step to wet out new cladding with a silicone roller.

Remove

  1. Open the LH front door.

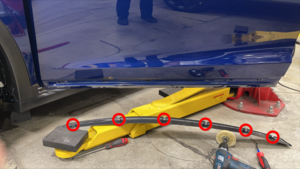

  2. Release the clips (x5) and tab that attach the LH front door cladding to the vehicle, and then remove the cladding from the vehicle.

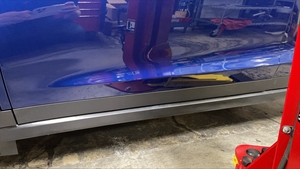

  3. Use an eraser wheel to clean the LH front door, and then use IPA wipes to remove any remaining residue.
    Informational PurposesAn informational icon, calling your attention
    Note
    Allow 1 min of dry time.

Install

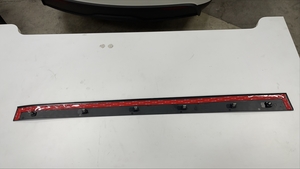

  1. Remove the adhesive backing on the LH front door cladding, position the cladding onto the LH front door, and then secure the clips (x5) and tab that attach the cladding to the door.
  2. Wet out the cladding with a silicone roller.
  3. Close the LH front door.
