Correction code 12207006

1. Turn the steering wheel fully to the left.

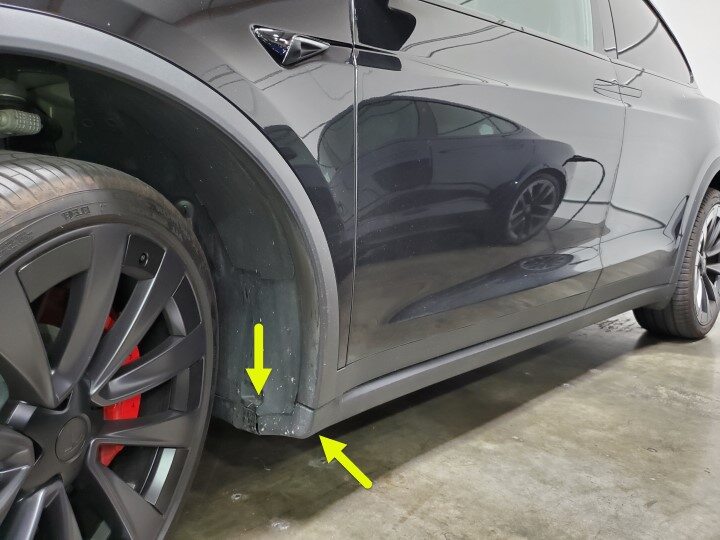

2. Remove the clips (x2) that attach the LH front wheel liner and rocker cover.

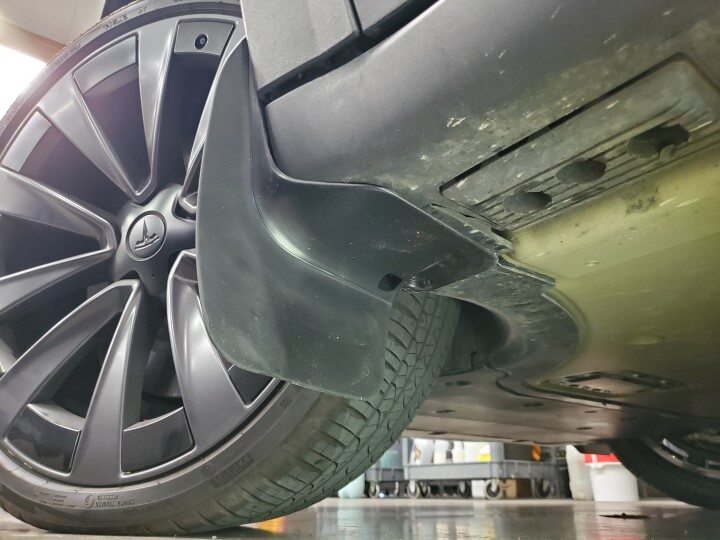

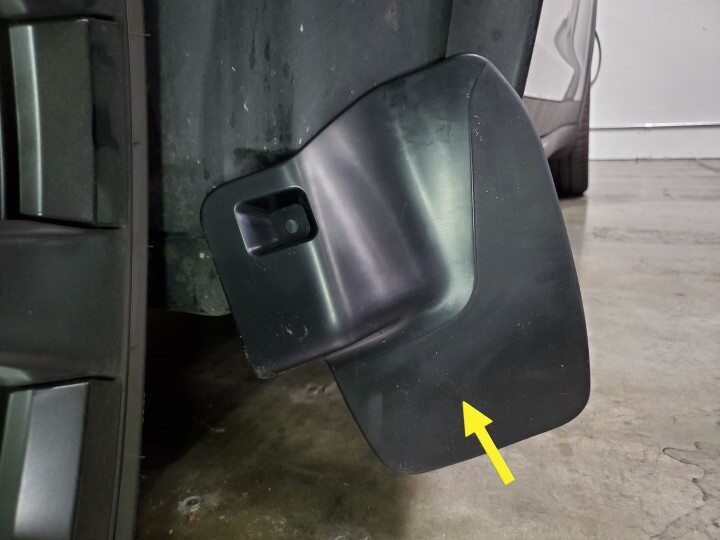

3. Position the LH front mudflap onto the wheel liner and rocker cover
   Note

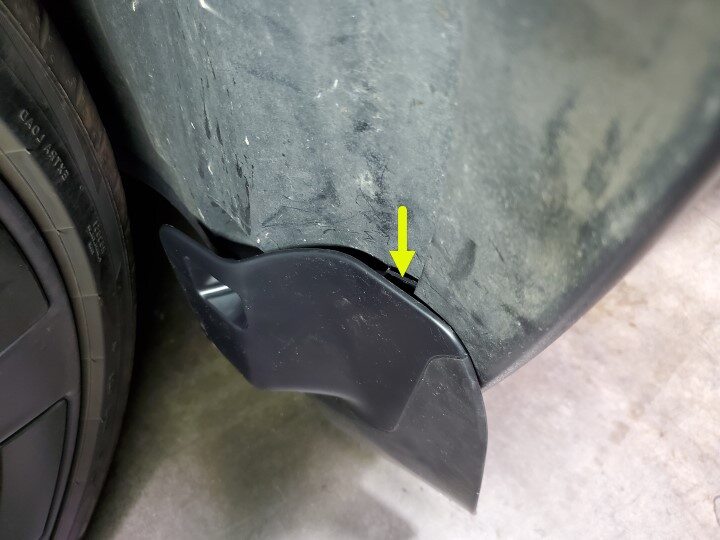

   Position the mudflap at an angle to aatch the tab behind the garnish, and then rotate the mud flap into position, Use a prytool to secure the tab.

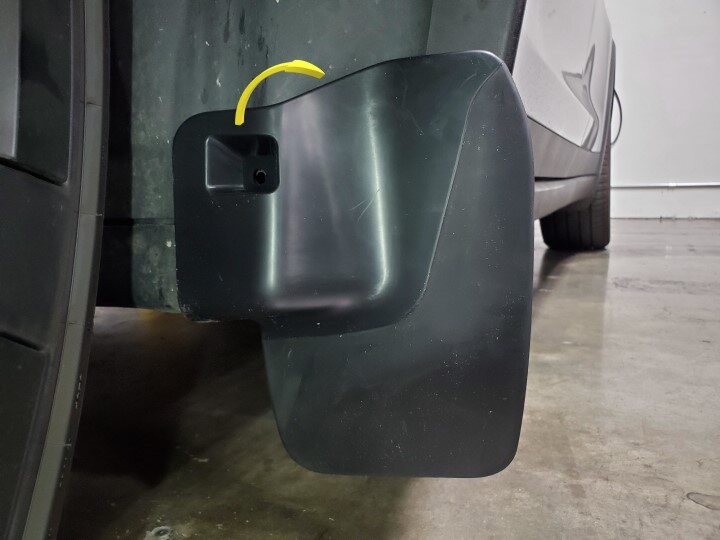

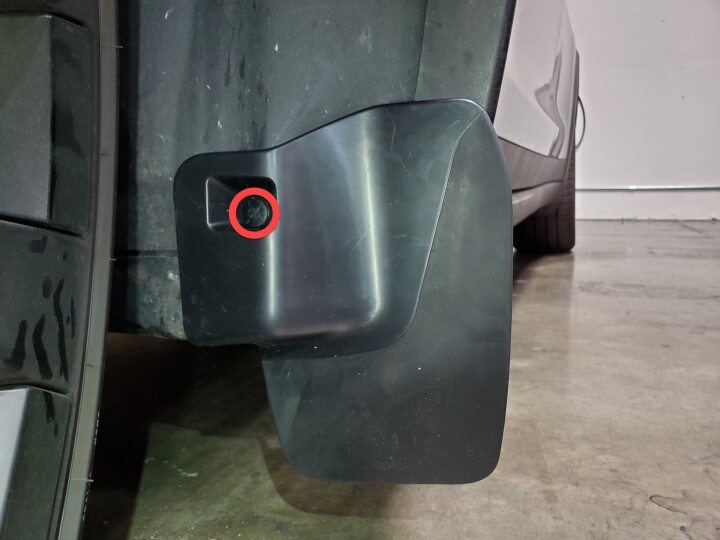

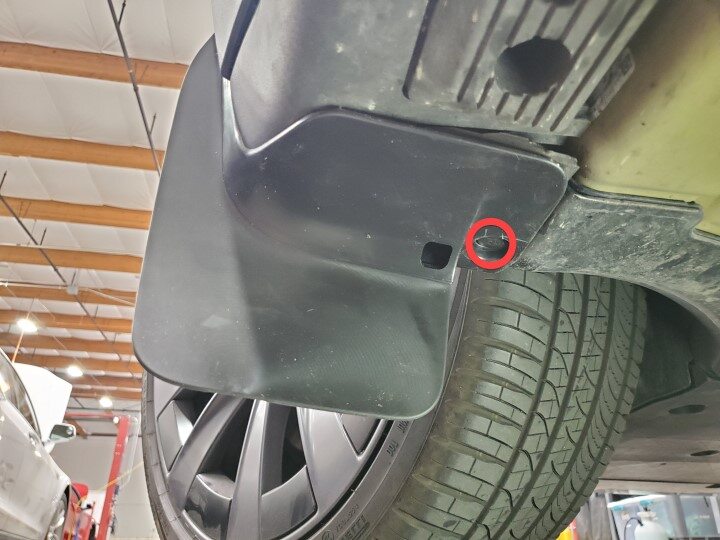

4. Install the clips (x2) to attach the LH front mudflap to the wheel liner and rocker cover.





5. Turn the steering wheel fully to the right, and then repeat steps 2 through 4 on the RH side of the vehicle.
