Trim - Sill Panel - Rear - LH (Remove and Replace)

Correction code 15180502 0.12 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH rear door and move the LH 2nd row seat forward.

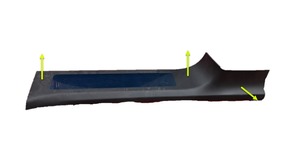

  2. Release the clips (x8) that attach the LH rear sill panel trim to the body, and then remove the trim from the vehicle.

Install

  1. If installing a LH rear sill panel trim 1626479-00-C or newer on Model X built before January 23, 2023, or a RH rear sill panel trim 1626480-00-C or newer on Model X built before January 31, 2023, the tab must be removed from the trim as follows:

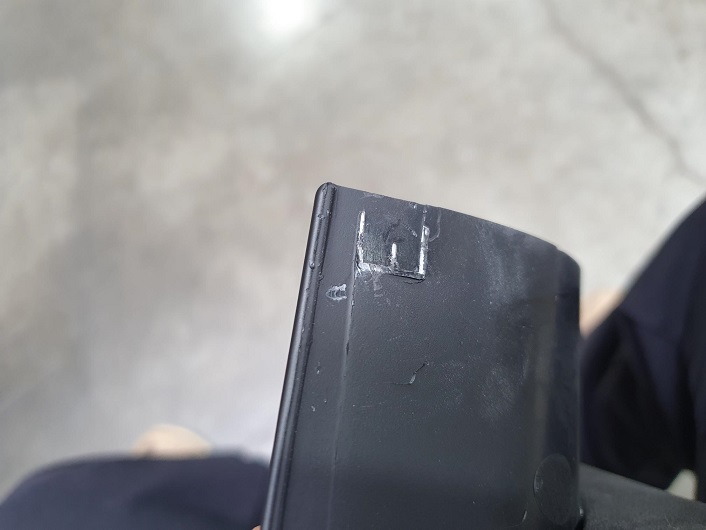

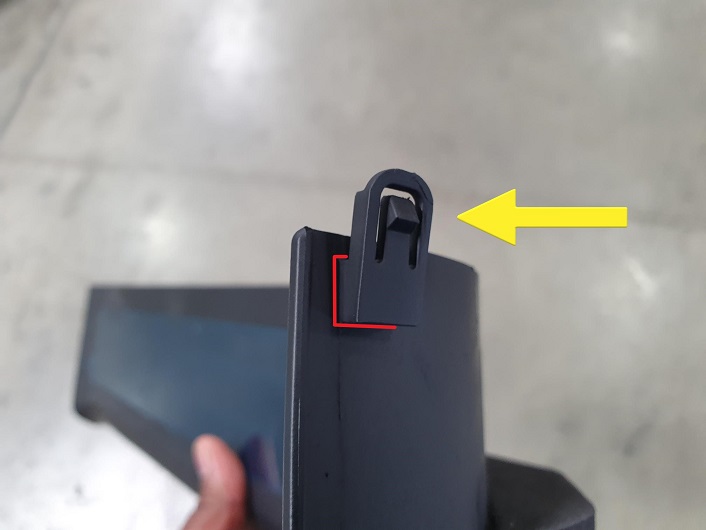

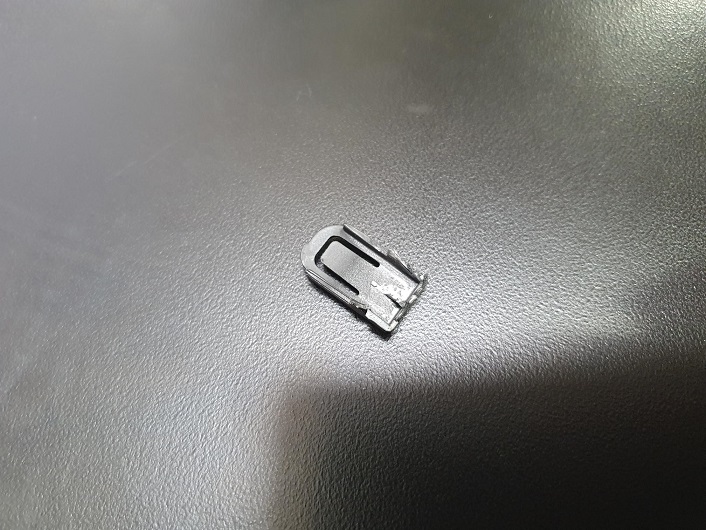

    1. Cut off and discard the tab on the new LH rear sill panel trim to allow proper fitment.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use of the following tool(s) is recommended:
    • Razor blade scraper - 1064740-00-A
    • Side cutters
    Figure 1. LH shown; RH similar
  2. Install the LH rear sill panel trim to the body, and then fasten the clips (x8) that attach the trim to the body.
  3. Move the 2nd row LH seat rearward, and then close the LH rear door.
