Cover - RH - Riser - Front Seat (Remove and Replace)
Correction code
13012172
0.42
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the driver seat. See Seat Assembly - 1st Row - LH (Remove and Install).

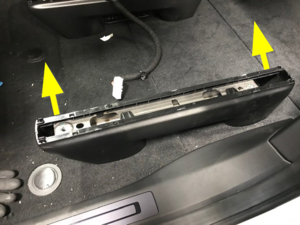

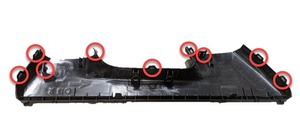

- Release the clips (x9) that attach the front seat riser RH cover to the riser, and then remove the cover from the vehicle.
Install

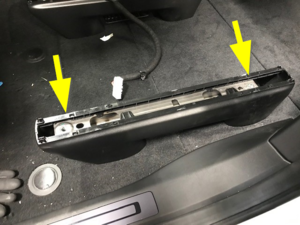

- Position the front seat riser RH cover onto the riser, and then secure the clips (x9) that attach the cover to the riser.
- Install the driver seat. See Seat Assembly - 1st Row - LH (Remove and Install).
