Air Extractor - Rear - Outer - LH (Remove and Replace)

Correction code 10014602 0.84 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components. Provide corrections and feedback to ServiceDevelopment@teslamotors.com.

Remove

  1. Remove the LH trunk trim bracket. See Bracket - Trim - Trunk - LH (Remove and Replace).

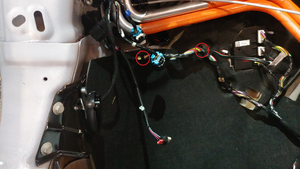

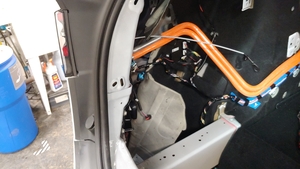

  2. Release the clips (x2) that attach the LH rear wheel house absorber to the body, and then move the absorber to gain access.
    Informational PurposesAn informational icon, calling your attention
    Note
    Move towards the front of the vehicle to gain access.
  3. Remove the LH rear fender garnish. See Garnish - Fender - Rear - LH (Remove and Replace).

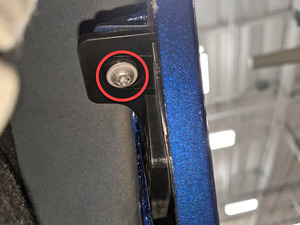

  4. Remove the screw that attaches the LH rear fascia to the rear quarter panel.
    1.5 Nm (1.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 bit

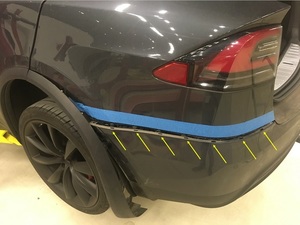

  5. Release the tabs (x12) to partly detach the LH rear fascia from the rear quarter panel.

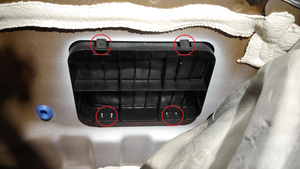

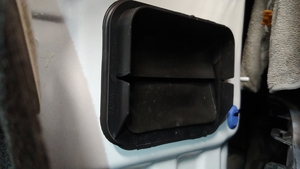

  6. Release the clips (x4) that attach the LH outer rear air extractor to the body.

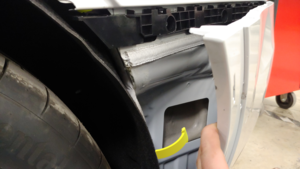

  7. Pull back the LH rear fascia to gain access.
    Informational PurposesAn informational icon, calling your attention
    Note
    Carefully pull back LH rear fascia trim quarter to gain access to the LH outer rear air extractor.

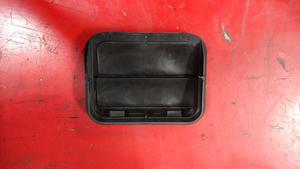

  8. Remove the LH outer rear air extractor from the vehicle.

Install

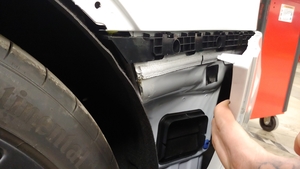

  1. Install the LH outer rear air extractor to vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Pull back the rear fascia from the LH quarter panel and line up the air extractor with the body.
  2. Secure the LH outer rear air extractor fully to the vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Clips (x4).
    Informational PurposesAn informational icon, calling your attention
    Note
    Press firmly on the extractor and verified all points are properly installed.
  3. Secure the clips (x12) that attach the LH rear fascia to the body.
  4. Install the screw that attach the LH rear fascia to the quarter panel.
    1.5 Nm (1.1 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Torx T25 bit
  5. Install LH rear fender garnish. See Garnish - Fender - Rear - LH (Remove and Replace).
  6. Install the clips (x2) that attach the LH rear wheel house absorber.
  7. Install the LH trunk trim bracket. See Bracket - Trim - Trunk - LH (Remove and Replace).
