Brake Hose - Flexible - Front - LH (Remove and Replace)

Correction code 33030302 0.54 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
This procedure is a DRAFT. Although it has been validated, Warnings and Cautions might be missing. Follow safety requirements and use extreme caution when working on or near High Voltage systems and components.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Raise and support the vehicle on a 2 post lift. See Raise Vehicle - 2 Post Lift.

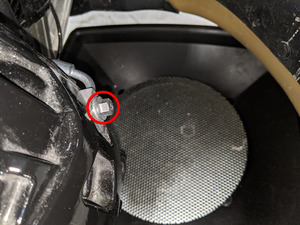

  3. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  4. Remove the LH front wheel. See Wheel Assembly (Remove and Install).

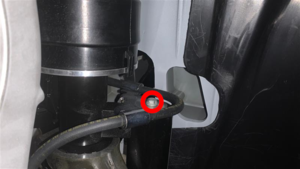

  5. Remove the bolt that attaches the brake hose to the LH front knuckle.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  6. Remove the bolt that attaches the LH front flexible brake hose to the LH front active damper.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket

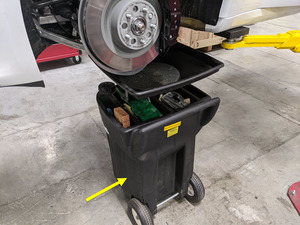

  7. Position a oil drain underneath the LH front corner of the vehicle.
  8. Remove the banjo bolt that attaches the LH front flexible brake hose to the LH front brake caliper.
    42 Nm (31.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 11 mm socket
    Informational PurposesAn informational icon, calling your attention
    Note
    Catch any brake fluid lost in the oil drain container.

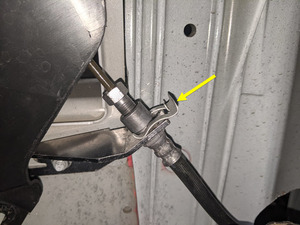

  9. Disconnect the LH front flexible brake hose nut from the 4 tube bundle.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12 mm combination wrench
    Informational PurposesAn informational icon, calling your attention
    Note
    Catch any brake fluid lost in the oil drain container.

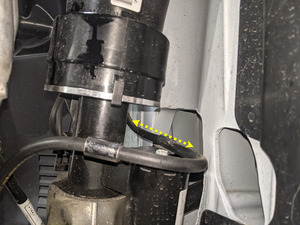

  10. Remove the clip that attaches the LH front jounce hose to the bracket.

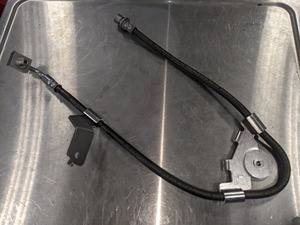

  11. Remove the LH front flexible brake hose from vehicle.
    Informational PurposesAn informational icon, calling your attention
    Note
    Discard the brake hose after removal.

Install

  1. Position the LH front flexible brake hose to the vehicle.
  2. Install the clip that attaches the LH front jounce hose to the bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    1x clip

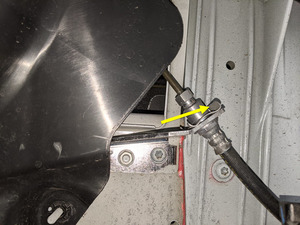

  3. Connect the LH front flexible brake hose nut to the 4 tube bundle.
    16 Nm (11.8 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 12 mm combination wrench
    Informational PurposesAn informational icon, calling your attention
    Note
    Catch any brake fluid lost in the oil drain container.
  4. Install the banjo bolt that attaches the LH front flexible brake hose to the LH front brake caliper.
    42 Nm (31.0 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 11 mm socket
    Informational PurposesAn informational icon, calling your attention
    Note
    Catch any brake fluid lost in the oil drain container.
  5. Remove the oil drain container from underneath the LH front corner of the vehicle.
  6. Install the bolt that attaches the LH front flexible brake hose to the LH front active damper.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  7. Install the bolt that attaches the brake hose to the LH front knuckle.
    6 Nm (4.4 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 10 mm socket
  8. Bleed the brakes. See Brake Fluid Bleed/Flush (Remove and Replace).
  9. Install the LH front wheel. See Wheel Assembly (Remove and Install).
  10. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  11. Perform a road test. Ensure proper brake pedal feel and performance.
    Informational PurposesAn informational icon, calling your attention
    Note
    Add correction code (00040100) to account for time
