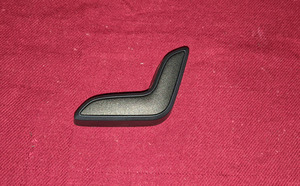

Cap - Switch - 2nd Row - LH (6 Seat) (Remove and Replace)

Correction code 13024412 0.06 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open the LH front door and lower the LH front window.
  2. Open the LH falcon wing door.

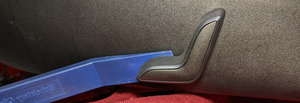

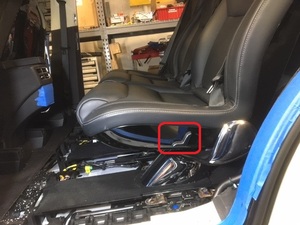

  3. Use a trim pry tool to remove the LH 2nd row switch cap.
    Informational PurposesAn informational icon, calling your attention
    Note

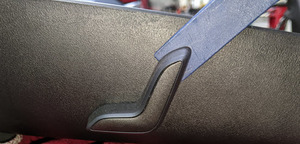

    Release the cap from both ends.

Install

  1. Install the LH 2nd row switch cap.
  2. Close the LH falcon door.
  3. Raise the LH front window and close the LH front door.
