LV Power (Disconnect and Connect)

Correction code 17010200 0.10 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

  • 2024-09-23: Added falcon door calibration step.

Disconnect

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning

Prepare for these conditions before disconnecting LV power:

  • Closed windows might shatter if the door is opened.
  • Closed doors might cause a lockout condition.
  • Airbags do not deploy.
  • Systems, displays, and other controls are off.
  1. Disconnect any charging cable.
  2. Make sure the vehicle is in Park.
  3. Open the front doors and lower the front windows.
  4. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  5. On the touchscreen, touch Controls > Safety & Security > Power Off.

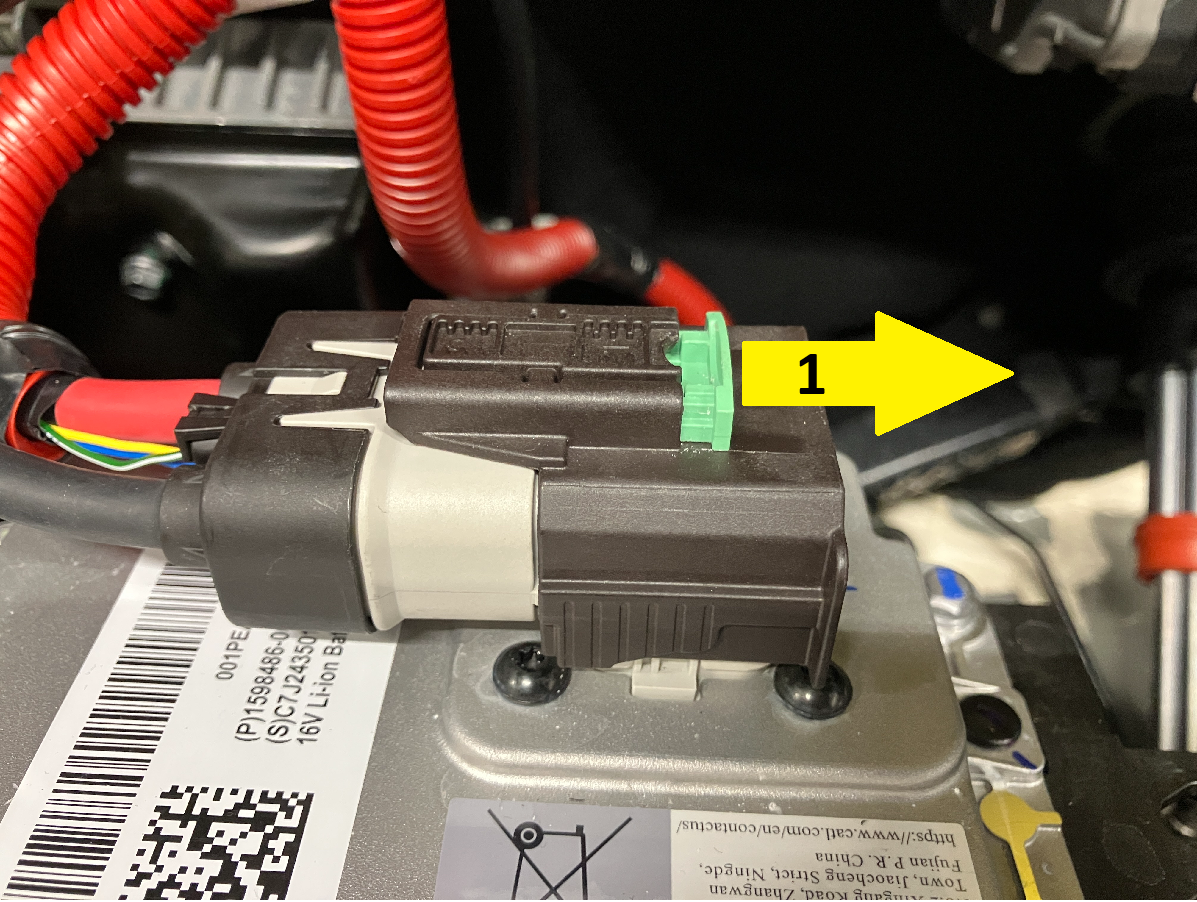

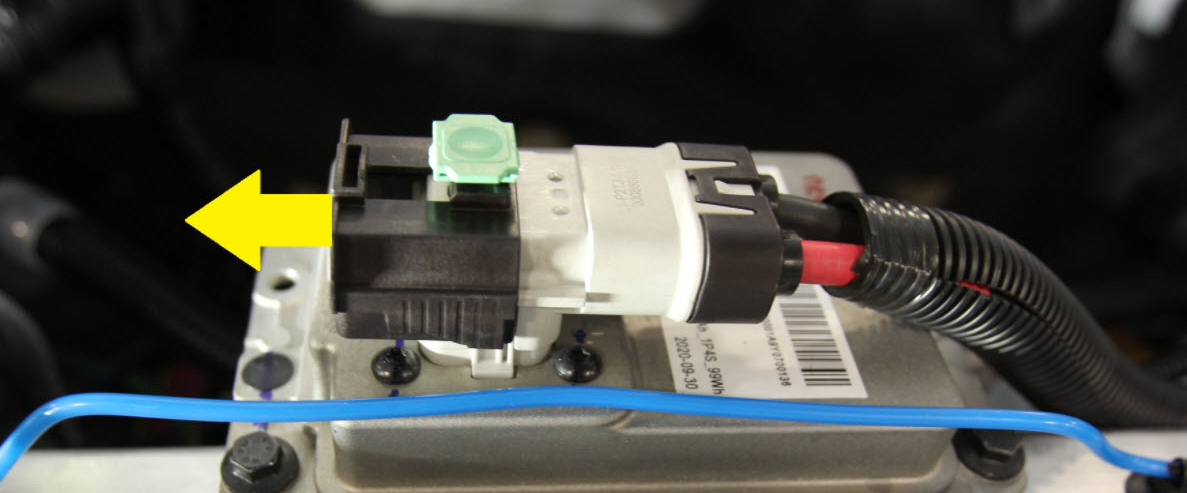

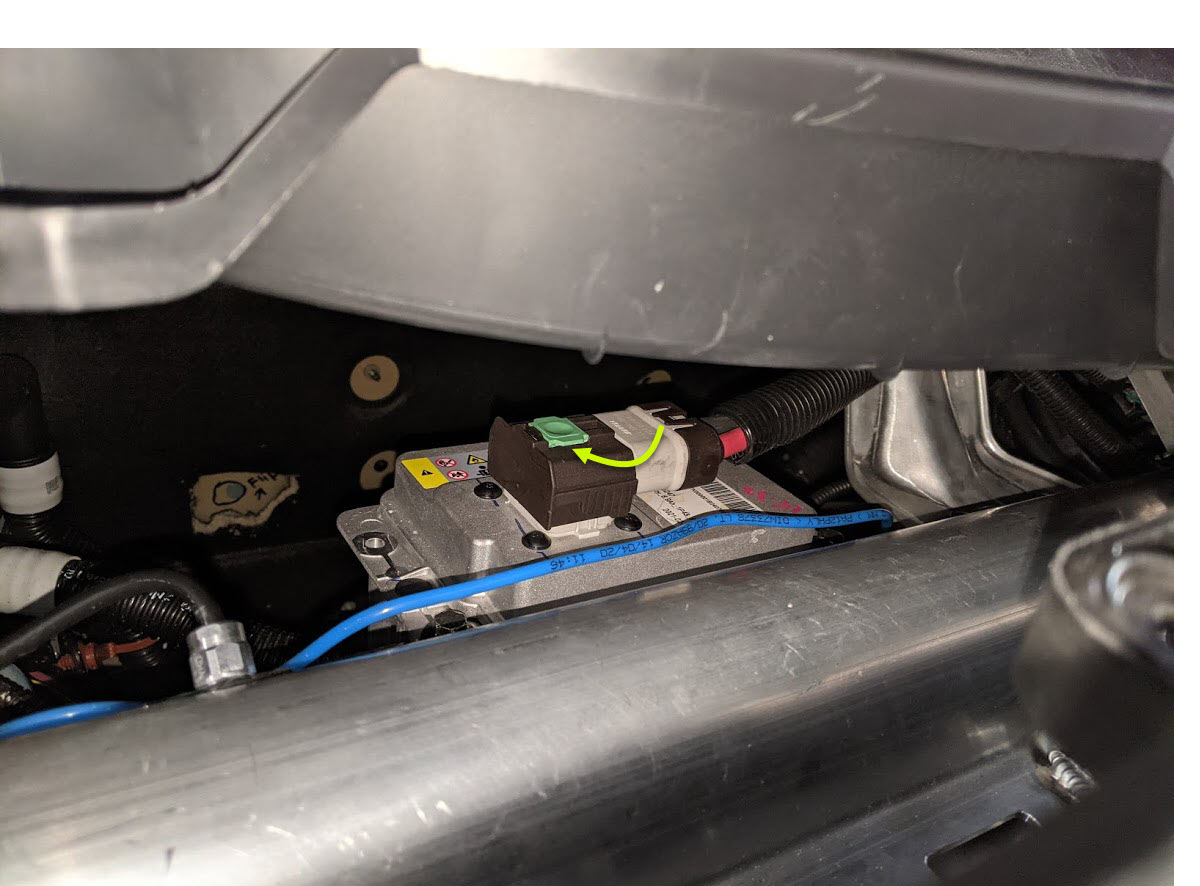

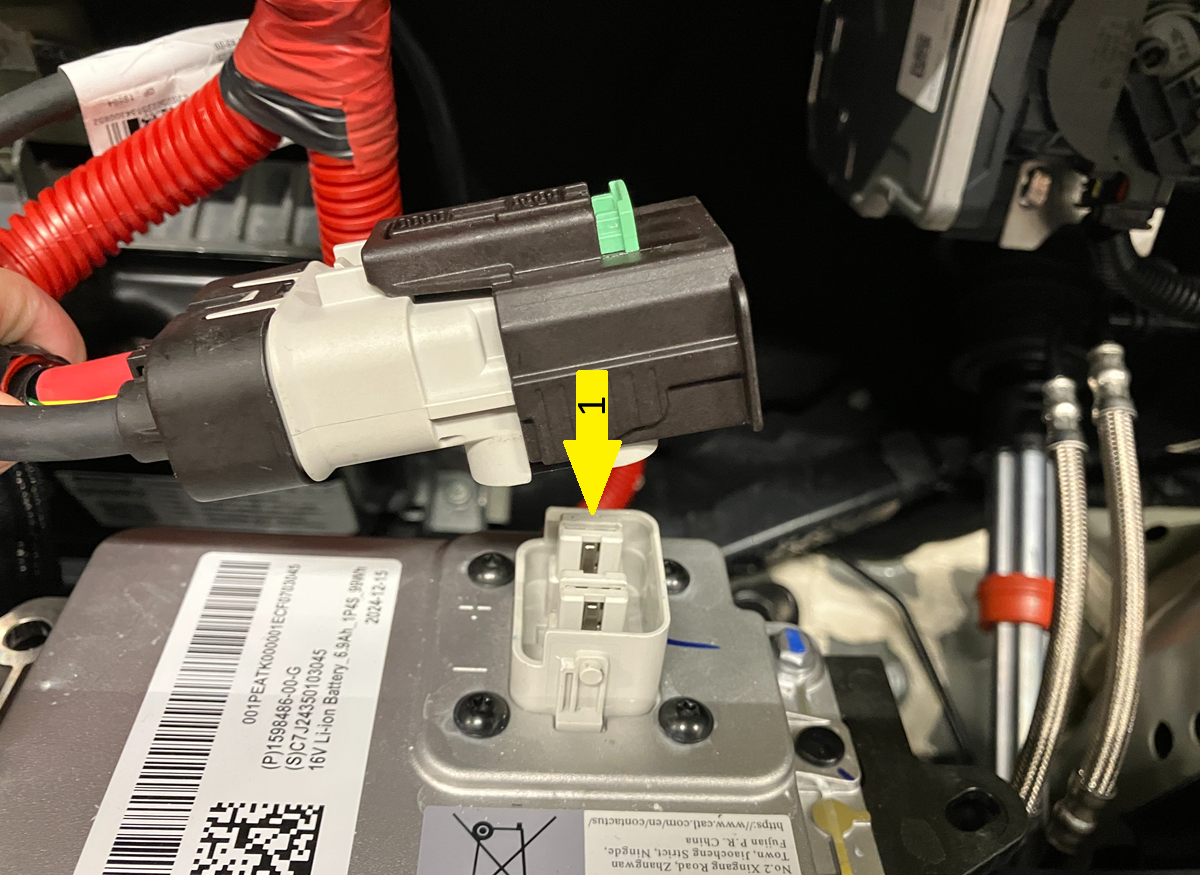

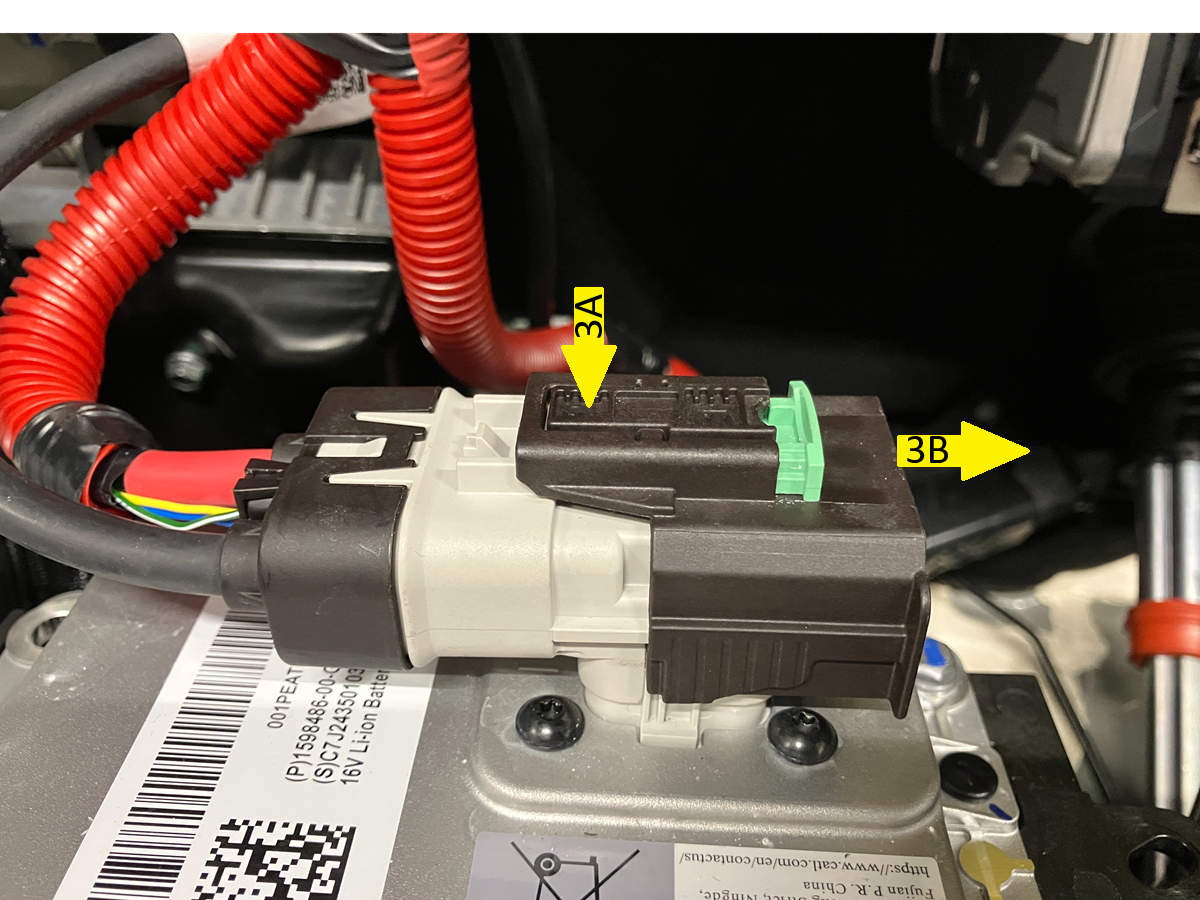

  6. Lift up on the locking tab, and then pull the black connector lock away from the cables. Pull up on the LV battery electrical connector to disconnect it.

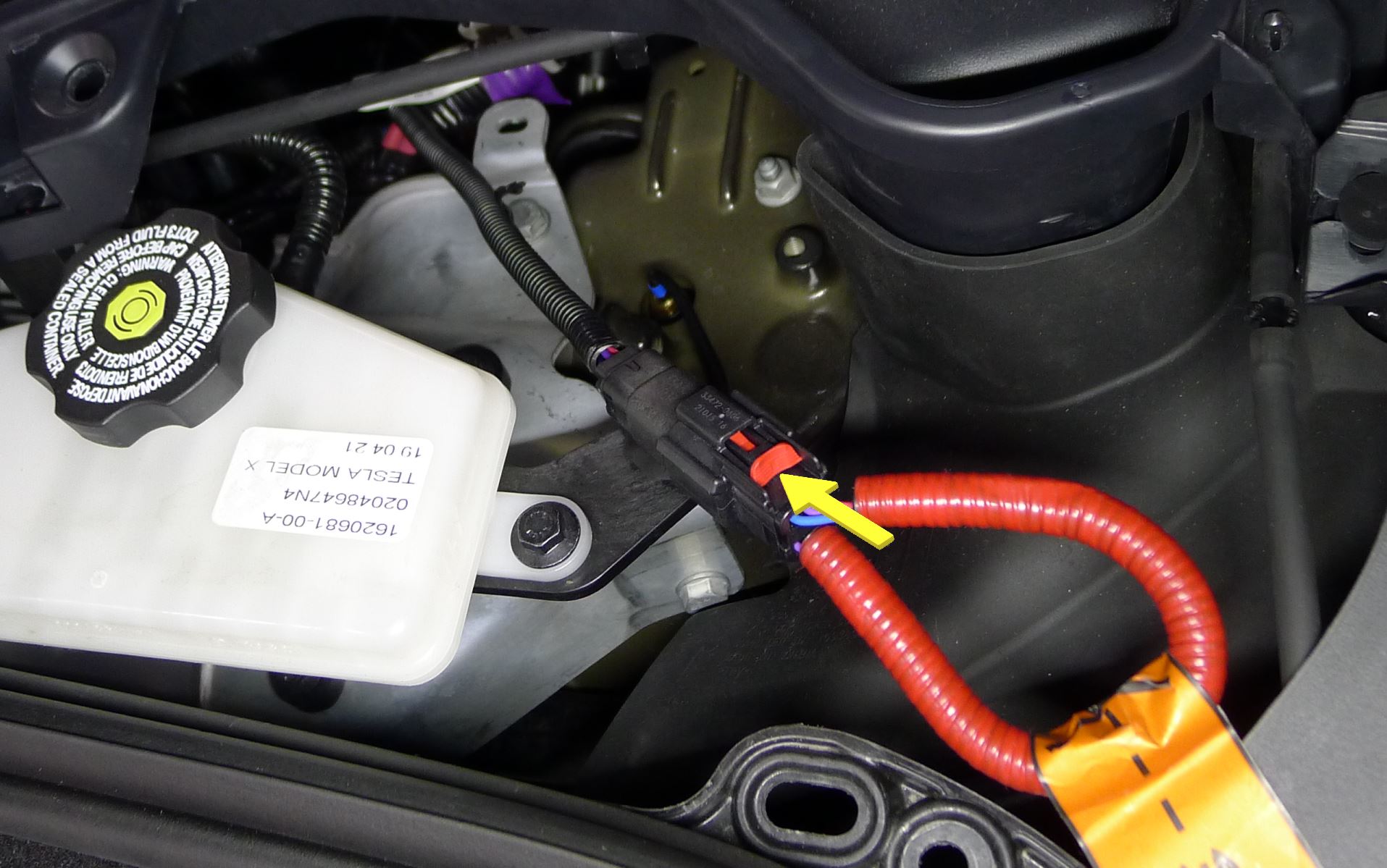

  7. Disconnect the first responder loop.

Connect

  1. Connect the first responder loop.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Do not reconnect the LV battery electrical connector until the first responder loop is connected.

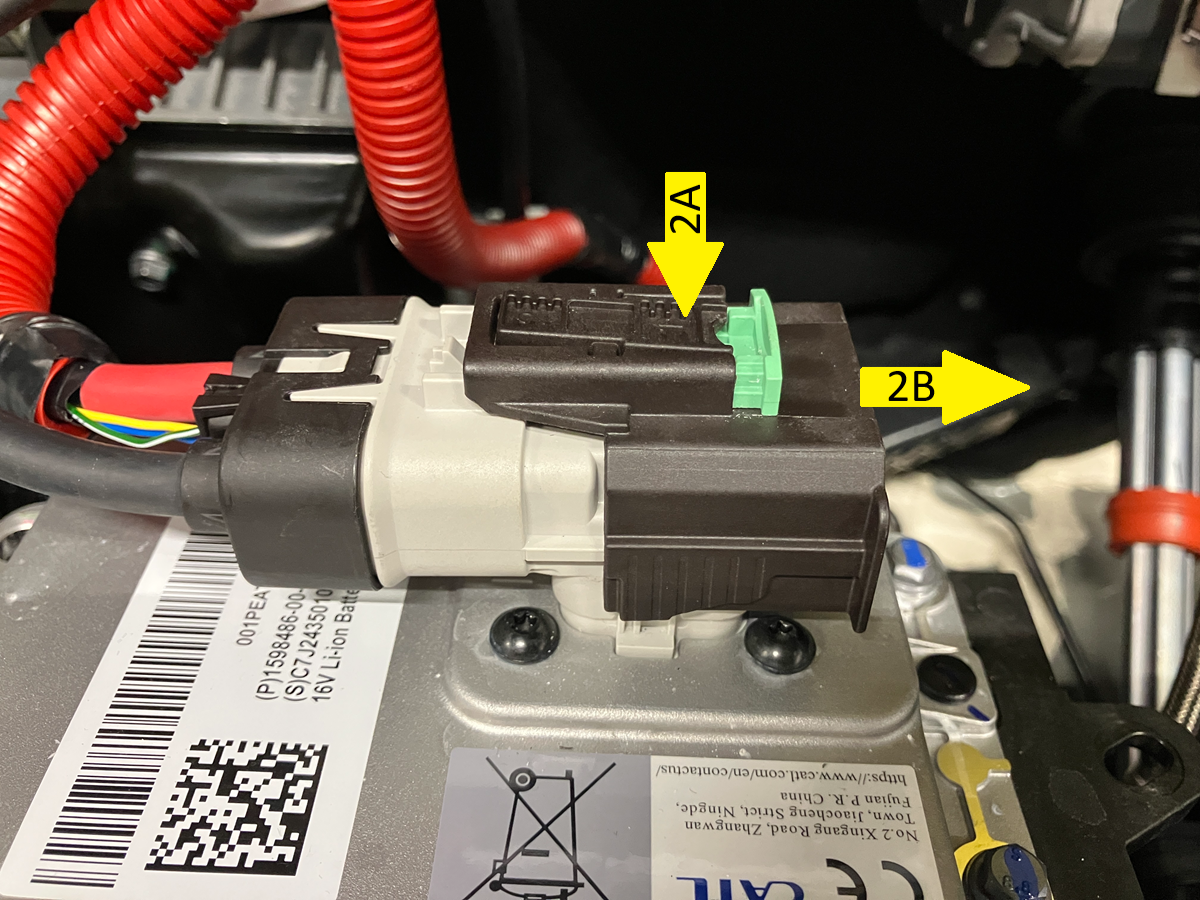

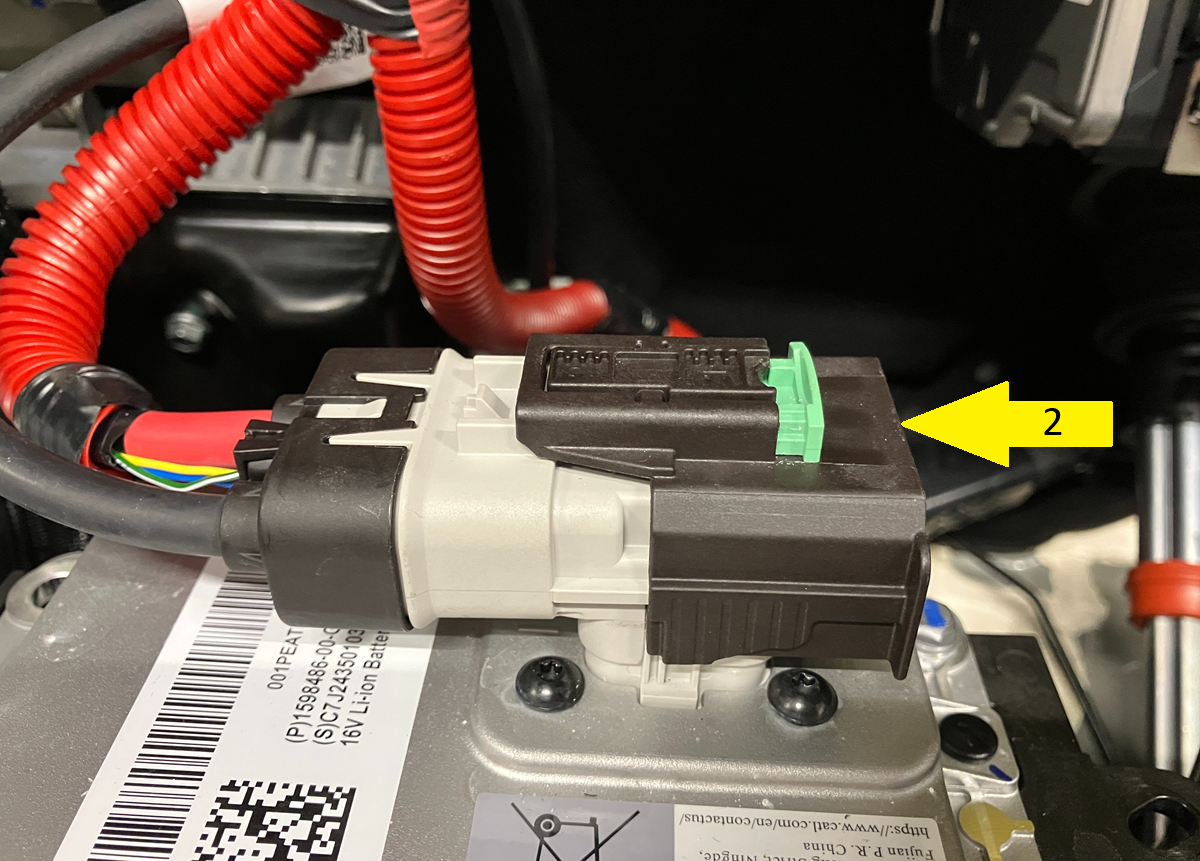

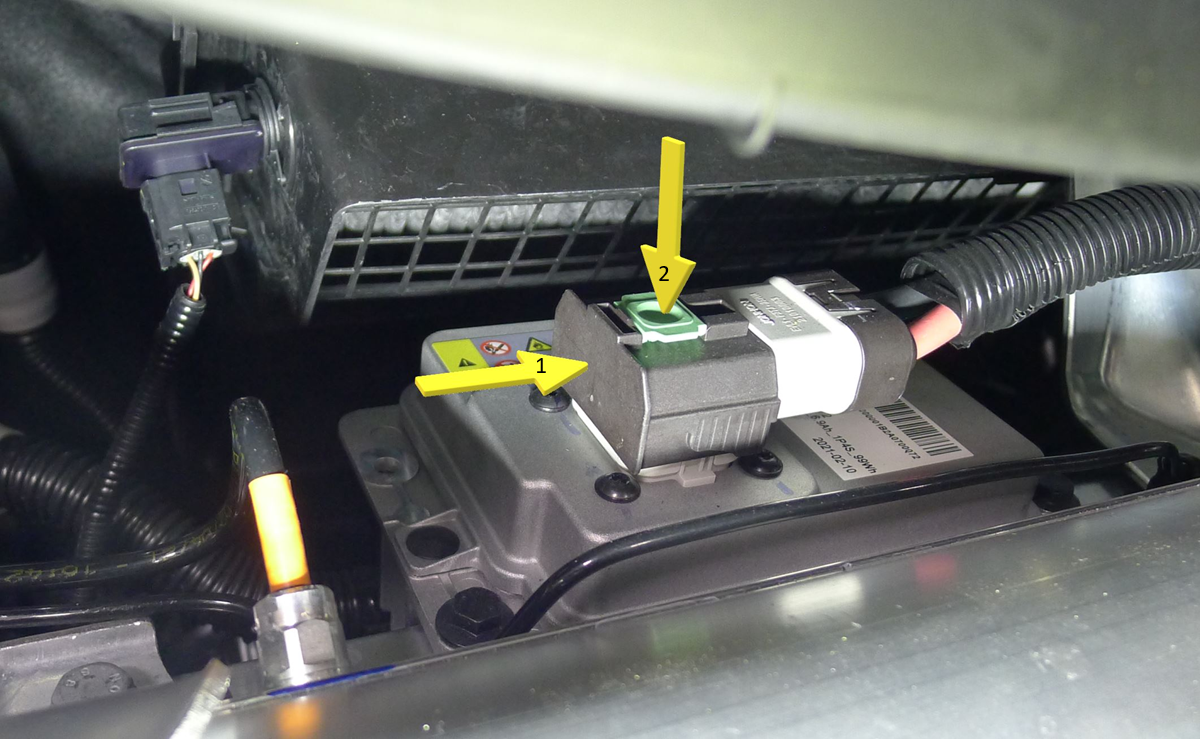

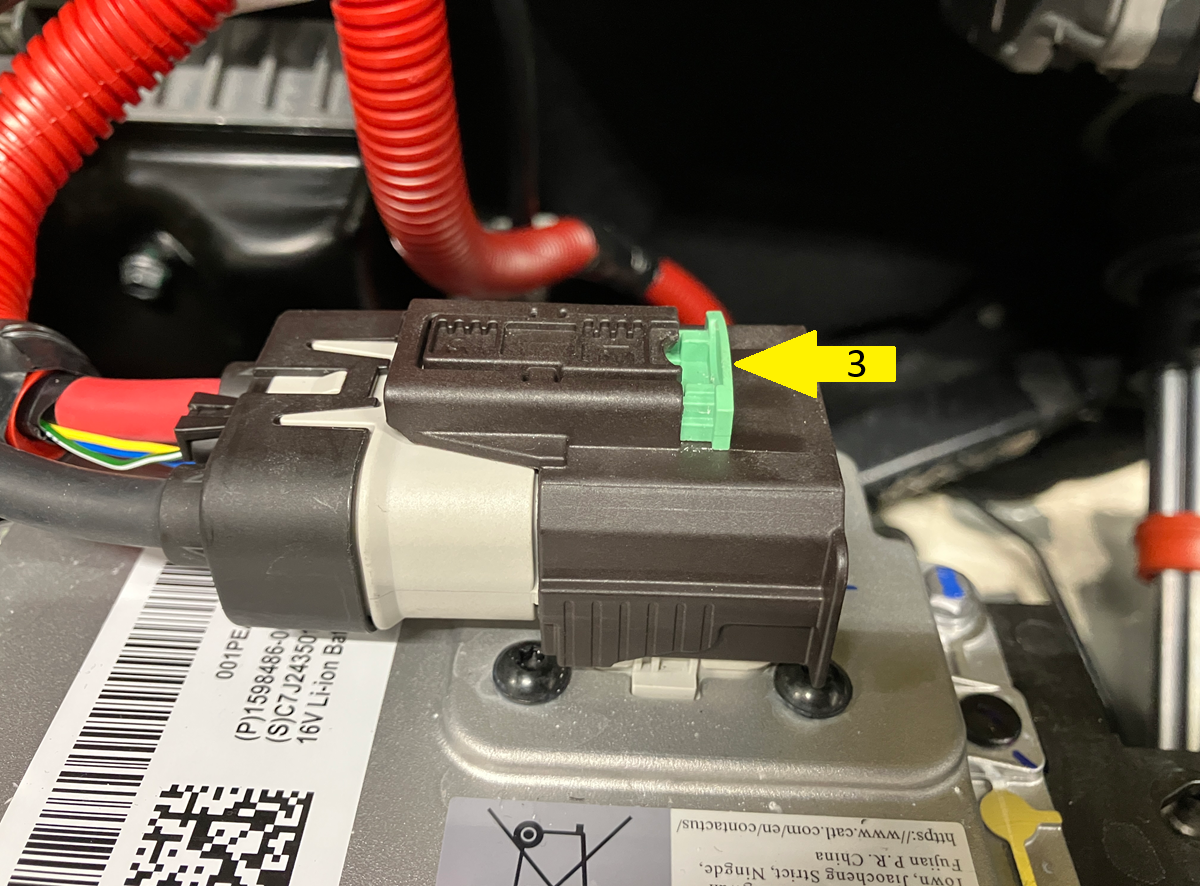

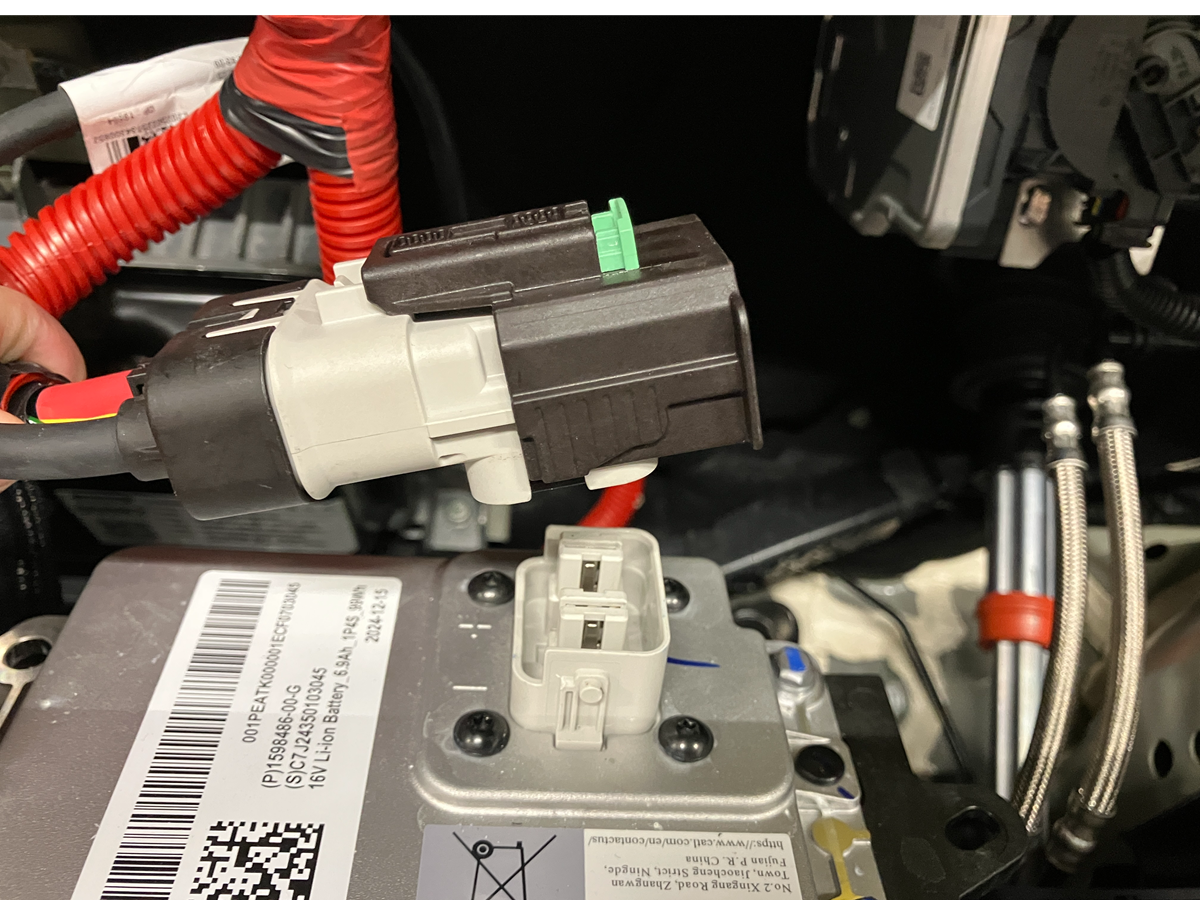

  2. Connect the LV battery electrical connector, and then push down on the connector while engaging the black connector lock. Push down on the locking tab to secure it to the connector.
    Informational PurposesAn informational icon, calling your attention
    Note
    If the locking tab does not engage, the connector or black connector lock is not fully seated.
  3. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace).
  4. Hold the upper B-pillar button in the down position to manually calibrate the LH and RH falcon wing doors.
  5. Press the brake pedal to turn on vehicle power.
  6. Raise the front windows and close the front doors.
