Carrier - RH - Side Shield - Inboard - Front Seat (Remove and Replace)
Correction code
13070042
NOTE: Unless otherwise explicitly
stated in the procedure, the above correction code and FRT reflect all of the work
required to perform this procedure, including the linked procedures. Do not stack correction codes unless
explicitly told to do so.
NOTE: See Flat Rate Times to learn
more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com.
NOTE: See Personal Protection to make sure proper PPE is worn when
performing the below
procedure.
Remove
- Remove the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove and Replace).
-

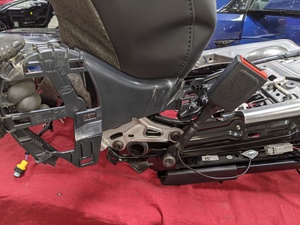

Release the clips (x2) and tabs (x2)

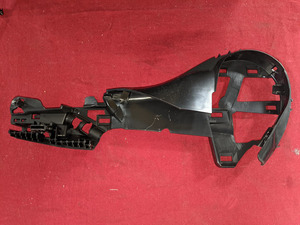

that attach the front seat side shield RH carrier to the front seat.
NoteRelease leading edge of trim, and then slide the trim away from the seat frame.
Install

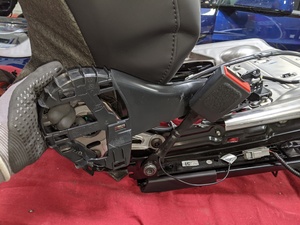

- Position the front seat side shield RH carrier onto the LH front seat, and then slide the carrier forward onto the frame to align the clips (x2) and tabs (x3).
- Install the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove and Replace).
