Assembly - Trailer Hitch (Remove and Replace)

Correction code 12300202 0.60 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Remove the rear fascia assembly. See Fascia Assembly - Rear (Remove and Install).

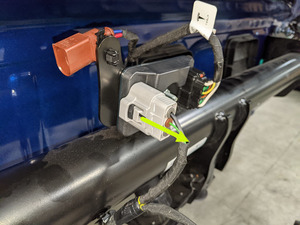

  2. Disconnect the LH body harness connector from the trailer hitch assembly jumper harness.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pocket screwdriver

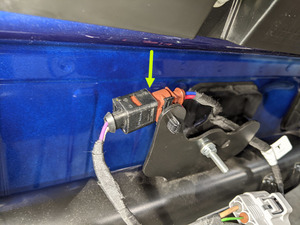

  3. Disconnect the LH body harness connector from the trailer hitch assembly ECU.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Pocket screwdriver

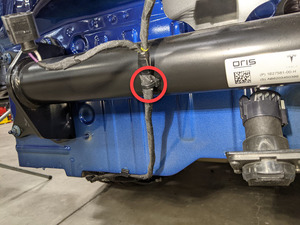

  4. Release the clip that attaches the LH body harness to the trailer hitch assembly.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • Clip pry tool

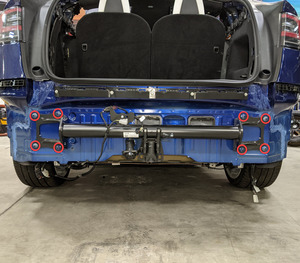

  5. Remove the nuts (x4) that attach the trailer hitch assembly to the body studs, and then remove the hitch assembly from the vehicle.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm deep socket
    • Ratchet/torque wrench
    • 3 in extension

Install

  1. Position the trailer hitch assembly on the vehicle, and then install the nuts (x4) that attach the hitch assembly to the body studs.
    60 Nm (44.2 lbs-ft)
    Informational PurposesAn informational icon, calling your attention
    Note
    The new trailer hitch assembly comes equipped with an ECU and jumper harness.
    Informational PurposesAn informational icon, calling your attention
    TIp
    Use of the following tool(s) is recommended:
    • 15 mm deep socket
    • Ratchet/torque wrench
    • 3 in extension
  2. Install the clip that attaches the LH body harness to the trailer hitch assembly.
  3. Connect the LH body harness connector to the trailer hitch assembly ECU.
  4. Connect the LH body harness connector to the trailer hitch assembly jumper harness.
  5. Install the rear fascia assembly. See Fascia Assembly - Rear (Remove and Install).
