60/40 Seat Switch - 2nd Row - LH (Remove and Replace)

Correction code 13024652 0.18 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email LaborTimeFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Remove

  1. Open all the doors and lower the LH front window.

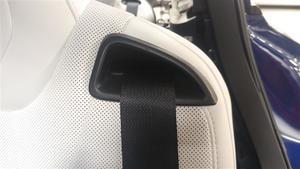

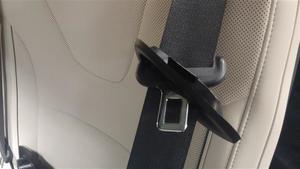

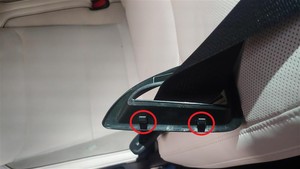

  2. Carefully pry the LH outer 2nd row escutcheon away from the LH 2nd row seat back to release the clips (x2), and then release the trim from the seat.
  3. Fold the LH 2nd row seat back to the down position.
  4. Unzip the LH seat back upholstery on both sides of the seat back.
    Informational PurposesAn informational icon, calling your attention
    Note

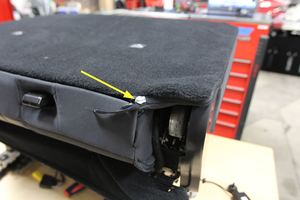

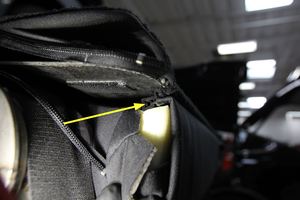

    The ends of the zippers are tucked underneath upholstery.
    Informational PurposesAn informational icon, calling your attention
    Note

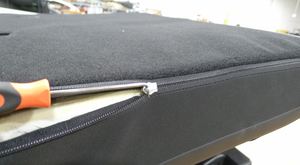

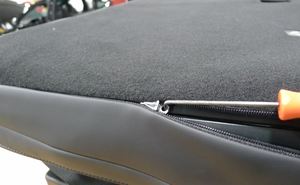

    Use a pick to aid in moving the zipper.

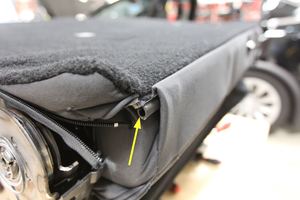

  5. Release the J-hook that attaches the lower portion of the LH 2nd row seat back upholstery to the seat back, and then release the upholstery from the seat back.

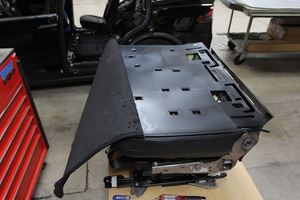

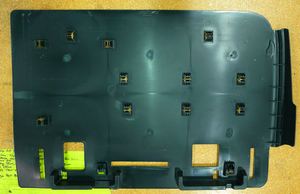

  6. Release the clips (x13) that attach the LH 2nd row plastic seat back to the seat assembly, and then remove the plastic seat back from the assembly.

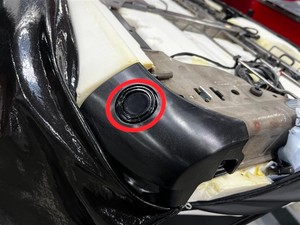

  7. Release the tabs (x2) that attach the LH 60/40 seat switch to the belt escutcheon bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Depress the tabs on the seat switch to release it from the escutcheon.

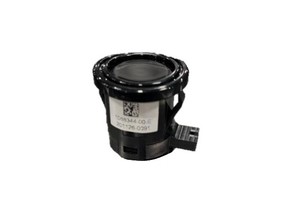

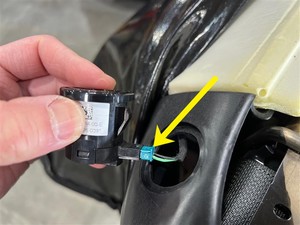

  8. Disconnect the LH 2nd row 60/40 seat switch electrical connector, and then remove the switch from the seat assembly.

Install

  1. Position the LH 2nd row 60/40 seat switch into the LH 2nd row seat assembly, and then connect the electrical connector.
  2. Secure the tabs (x2) that attach the LH 60/40 seat switch to the belt escutcheon bracket.
    Informational PurposesAn informational icon, calling your attention
    Note
    Make sure the tabs are fully secured to the bracket.

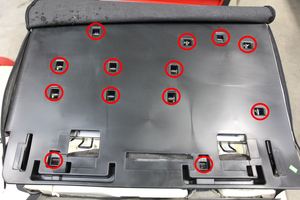

  3. Position the LH 2nd row plastic seat back into the seat assembly, and then secure the clips (x13) that attach the plastic seat back to the assembly.
  4. Zip the LH seat back upholstery on both sides of the LH 2nd row seat back.
    Informational PurposesAn informational icon, calling your attention
    Note
    Use a pick to aid in moving the zipper.
    Informational PurposesAn informational icon, calling your attention
    Note

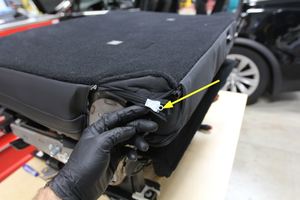

    Tuck the ends of zippers underneath the upholstery.
    Warning IconA warning icon, calling your attention to a possibly risky situation
    CAUTION
    Be careful not to pull the zipper off track.
  5. Secure the J-hook along the lower portion of the LH 2nd row seat back upholstery to the seat assembly.

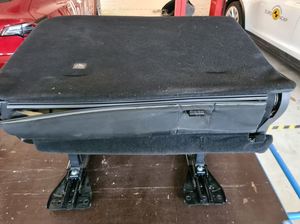

  6. Move the LH 2nd row seat the original position.
  7. Position the LH outer 2nd row escutcheon into from the LH 2nd row seat back, and then secure the clips (x2) that attach the escutcheon to the seat back.
    Informational PurposesAn informational icon, calling your attention
    Note
    Press in the top and carefully seat the lower clips.
  8. Raise the LH front window and close the LH front door.
