Correction code 17106802 0.66 NOTE: Unless otherwise explicitly stated in the procedure, the above correction code and FRT reflect all of the work required to perform this procedure, including the linked procedures. Do not stack correction codes unless explicitly told to do so. NOTE: See Flat Rate Times to learn more about FRTs and how they are created. To provide feedback on FRT values, email ServiceManualFeedback@tesla.com. NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

1. Open LH front door
2. Lower LH and RH front windows
3. Open RH front door
4. Move RH front seat backward

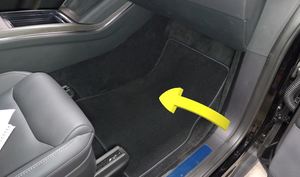

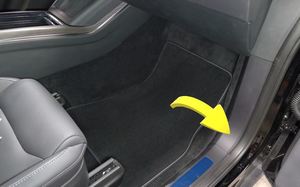

5. Remove RH front floor mat

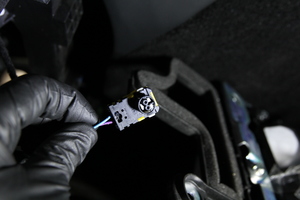

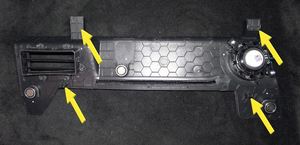

6. Remove RH footwell cover
   Note

   3x magnets, 1x connector, 4x datums

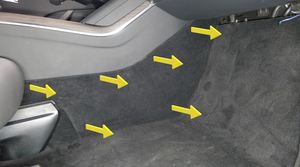

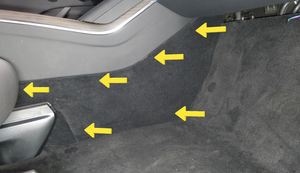

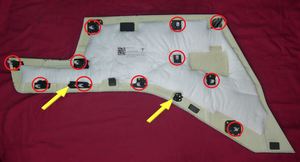

7. Remove RH console side carpet
   Note

   11x clips, 2x datums

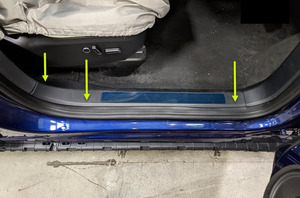

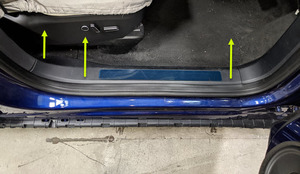

8. Remove RH front sill plate
   Note

   5x clips

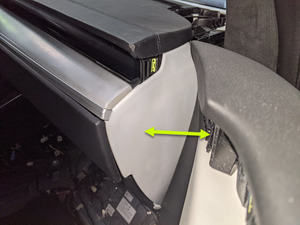

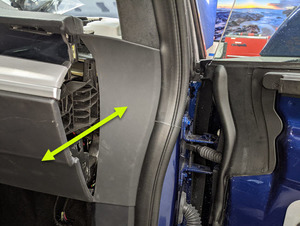

9. Remove RH IP end cap
   Note

   3x clips



10. Remove RH mid A-pillar trim
    Note

    1x clip, 1x locating clip

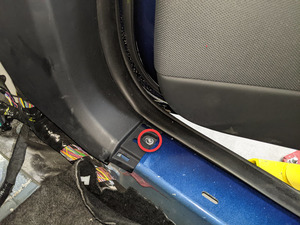

11. Remove RH lower A-pillar trim
    Note

    1x bolt, T25, 5 Nm, 2x clips



12. Open hood
    Note

    Via center display > Controls > Frunk Open
13. Power off vehicle via center display
    Note

    Controls > Safety & Security > Power Off

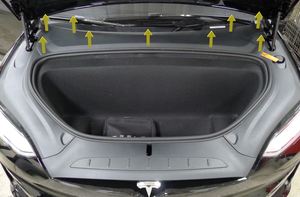

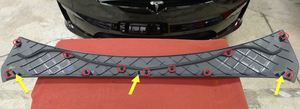

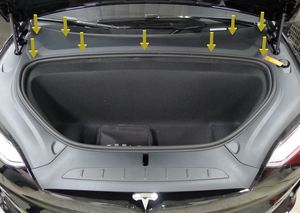

14. Remove rear underhood apron
    Note

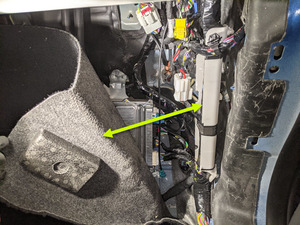

    11x clips, 2x datums

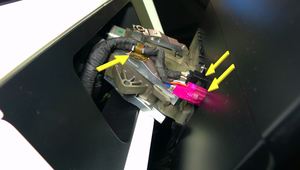

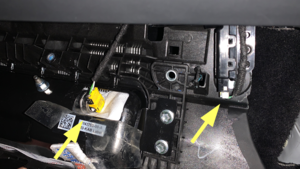

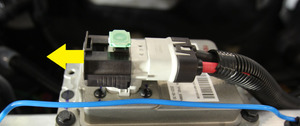

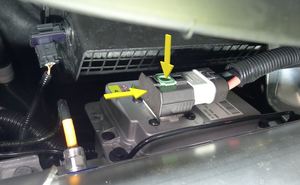

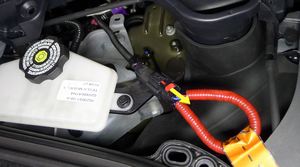

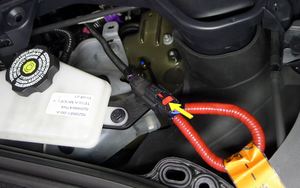

15. Disconnect LV battery connector and First Responder Loop
    Note

    2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL

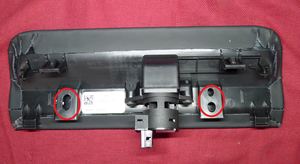

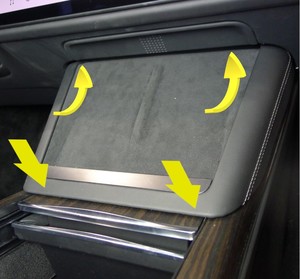

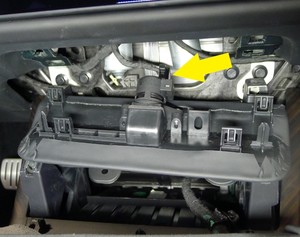

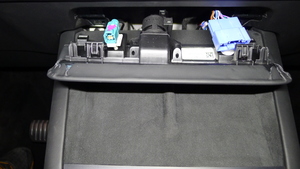

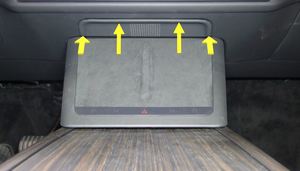

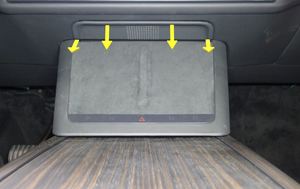

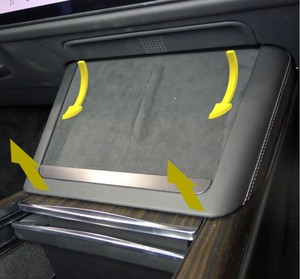

16. Release phone dock
    Note

    4x clips, 2x datums, Pull up at bottom and swing out from under instrument panel

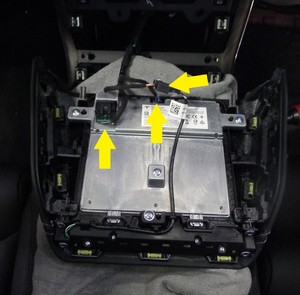

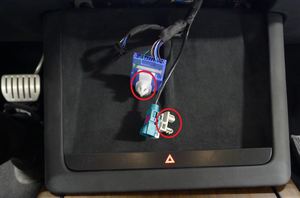

17. Remove phone dock
    Note

    3x connectors, 1x clip, Take caution to release connector locks before pulling straight out of each socket to avoid damage

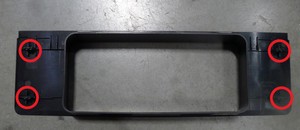

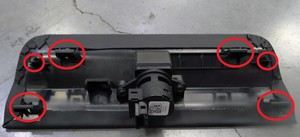

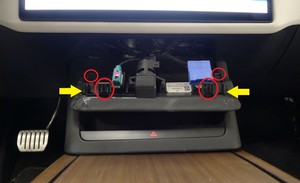

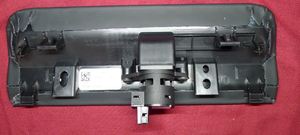

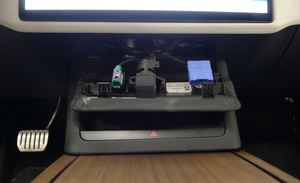

18. Release IP service panel
    Note

    2x tabs, 4x datums, Release top tabs and slide rearward

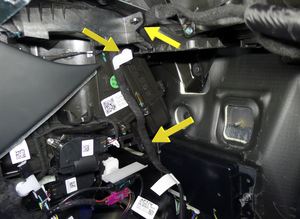

19. Release diagnostic and CAN harnesses from IP service panel
    Note

    2x clips

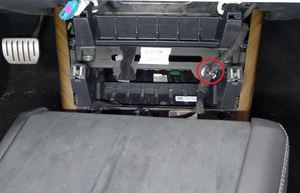

20. Remove IP service panel
    Note

    1x connector

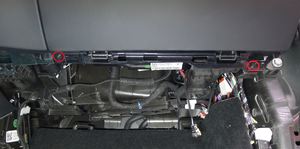

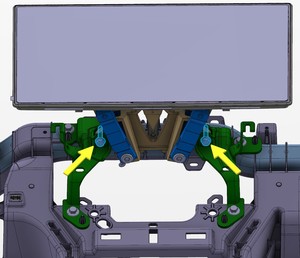

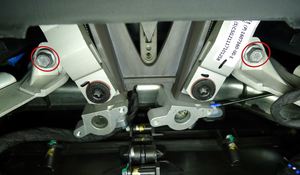

21. Remove center display bracket bolts
    Note

    2x bolts, 10mm, 7 Nm

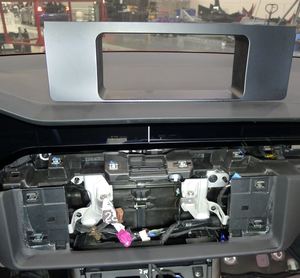

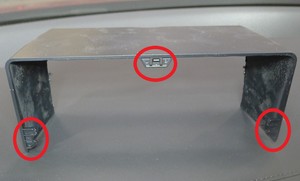

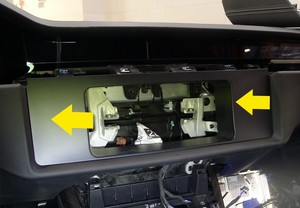

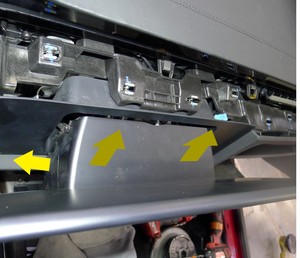

22. Remove center display shroud
    Note

    3x tabs, Slide display outwards until shroud fully clears IP and support, Release the bottom tabs and pull upward

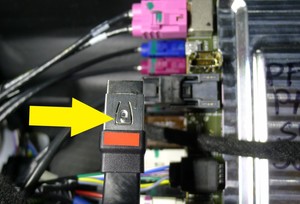

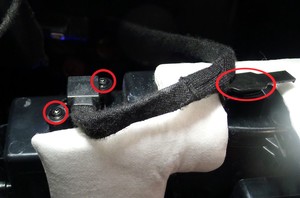

23. Release center display coax and power connectors
    Note

    2x connectors, 1x clip, Slide display rearward outwards from IP bracket and support during connector release

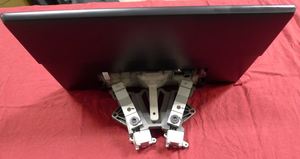

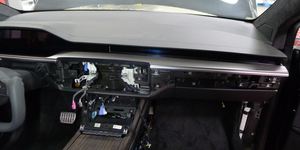

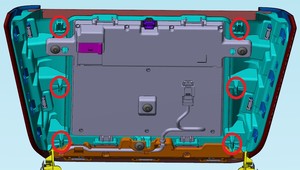

24. Remove center display
    Note

    Slide rearward, Place on soft clean surface

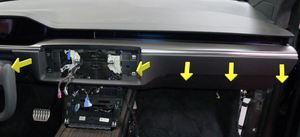

25. Remove IP closeout panel
    Note

    4x tabs

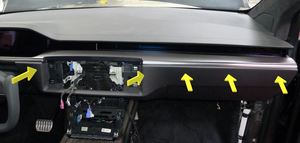

26. Remove IP RH mid Panel
    Note

    14x tabs, 2 datums

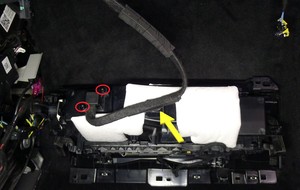

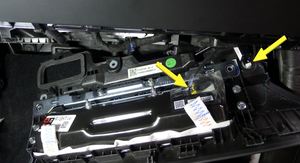

27. Remove fasteners securing RH knee air bag assembly to vehicle
    Note

    2x bolts, 10mm, 8 Nm, 1x clip

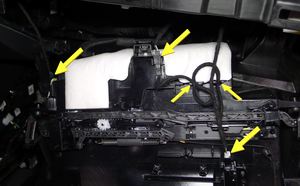

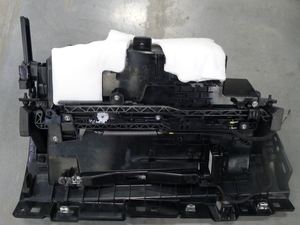

28. Remove the RH knee air bag assembly from vehicle
    Note

    2x connectors, 1x clip, 6x tabs

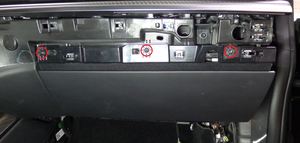

29. Release glove box
    Note

    5x screws, T20, 3 Nm





30. Release glove box connectors
    Note

    3x connectors

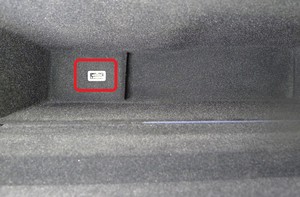

31. Remove USB outlet
    Note

    2x screws, T20, 3 Nm, 1x clip

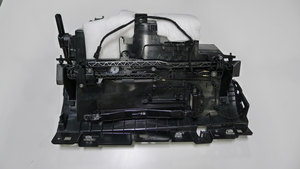

32. Remove glove box



33. Fold RH front cabin carpet aside for access

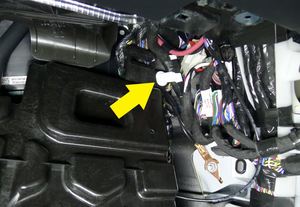

34. Release harness from RH footrest panel
    Note

    1x clip

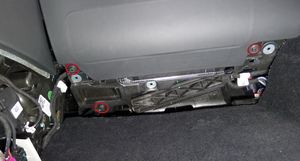

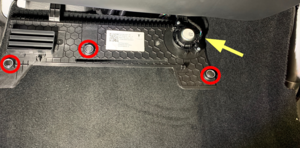

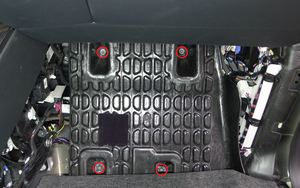

35. Release RH footrest panel
    Note

    2x bolts, 10mm, 5 Nm, 2x nut, 10mm, 5 Nm

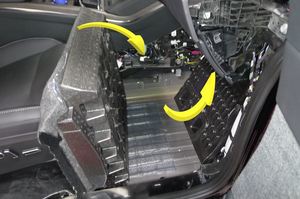

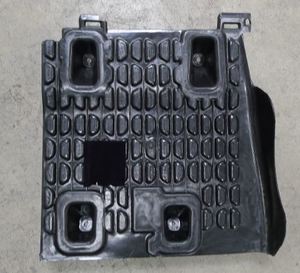

36. Remove RH footrest panel
    Note

    Fold RH primary support carpet up, Rotate RH footrest panel out of vehicle

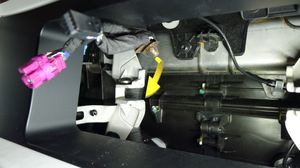

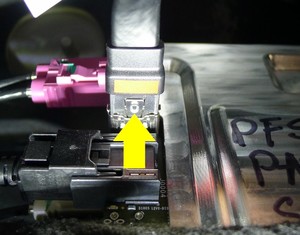

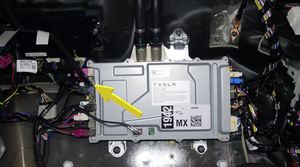

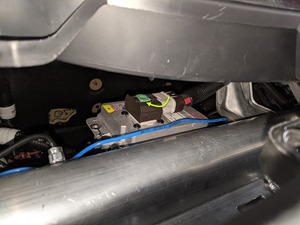

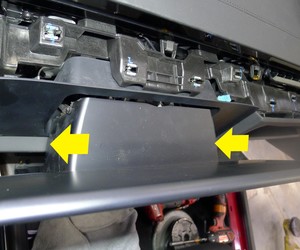

37. Release connector to gaming MCU
    Note

    1x connector, Depress lock on underside of connector before pulling out of socket, Possible damage to PCBA may occur if removed without releasing lock first

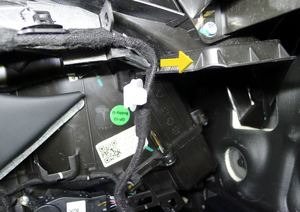

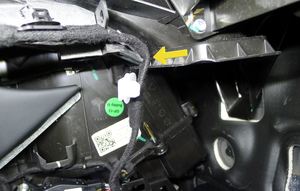

38. Release glove box USB cable from IP carrier
    Note

    3x clips

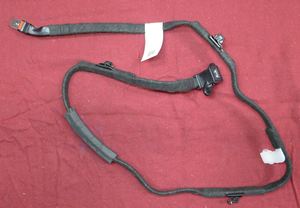

39. Remove glove box USB cable from vehicle
    Note

    Carefully maneuver cable between IP carrier and passenger footwell vent at HVAC assembly





40. Position glove box USB cable
    Note

    Carefully maneuver cable between IP carrier and passenger footwell vent at HVAC assembly





41. Secure glove box USB cable to IP carrier
    Note

    3x clips



42. Install connector to gaming MCU
    Note

    1x connector, Confirm connector locked into socket

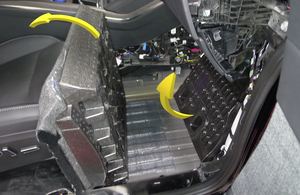

43. Install RH footrest panel
    Note

    Rotate RH footrest panel into vehicle, Fold RH primary support carpet down





44. Secure RH footrest panel
    Note

    2x bolts, 10mm, 5 Nm, 2x nut, 10mm, 5 Nm



45. Secure harness to RH footrest panel
    Note

    1x clip



46. Fold RH main carpet back into place



47. Secure USB outlet
    Note

    2x screws, T20, 2 Nm, 1x clip, Ensure USB socket flush in glove box







48. Secure glove box connectors
    Note

    3x connectors, Route harness through glove box datums



49. Install glove box
    Note

    5x screws, T20, 3 Nm

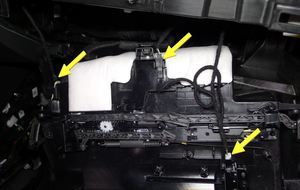

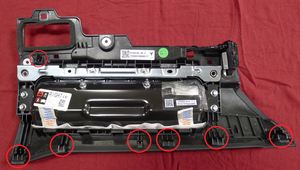

50. Install RH knee air bag assembly into vehicle
    Note

    2x connectors, 6x tabs, 1x clip, Hook tabs before fully seating, Use caution not to damage the connector/harness, Support the knee air bag while connecting the connector







51. Install fasteners securing RH knee air bag assembly to vehicle
    Note

    2x bolts, 10mm, 8 Nm, 1x clip



52. Install RH console side carpet
    Note

    11x clips, 2x datums





53. Install RH footwell cover
    Note

    3x magnets, 4x datums, 1x connector





54. Install RH lower A-pillar trim
    Note

    1x bolt, T25, 5 Nm, 2x clips



55. Install RH mid A-pillar trim
    Note

    1x clip, 1x locating clip, Verify weather seal is seated properly



56. Install RH IP end cap
    Note

    3x clips



57. Install RH front sill plate
    Note

    5x clips



58. Install RH front floor mat



59. Install IP RH mid Panel
    Note

    14x tabs, 2 datums







60. Install IP closeout panel
    Note

    4x tabs







61. Route display harness behind LH display bracket



62. Secure center display coax and power connectors
    Note

    2x connectors, 1x clip, Ensure strain relief clip is secure to linkage arm, Replace clip if damaged



63. Install center display shroud
    Note

    3x tabs, Slide display downward until shroud tabs fully engages

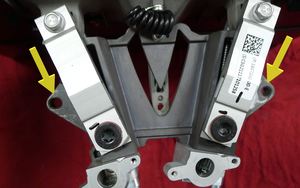

64. Secure center display to IP carrier
    Note

    2x bolts, 10mm, 7 Nm, Slide center display into IP carrier, Start RH bolt first







65. Secure IP service panel connector
    Note

    1x connector





66. Secure diagnostic and CAN harnesses to IP service panel
    Note

    2x clips

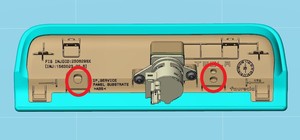

67. Install IP service panel
    Note

    2x tabs, 4 datums, Slide forward engaging datums then secure tabs upward into IP





68. Install phone dock connections
    Note

    3x connectors, 1x clip





69. Install phone dock
    Note

    2x datums, 4 tabs, Slide datums forward into IP and secure tabs down into center console



70. Connect First Responder Loop and LV battery connector
    Note

    2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage upper locking tab when fully seated





71. Install rear underhood apron
    Note

    11x clips, 2x datums





72. Close hood
73. Move RH front seat to original position

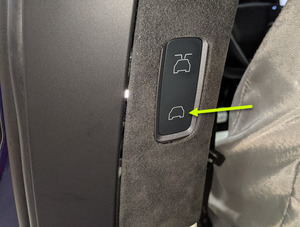

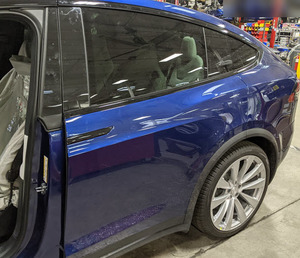

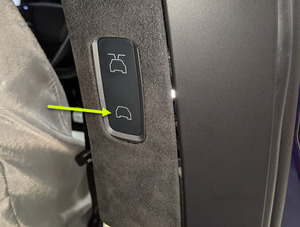

74. Calibrate RH falcon wing door
    Note

    Hold the upper B-pillar button in the down position to manually calibrate





75. Close RH front door

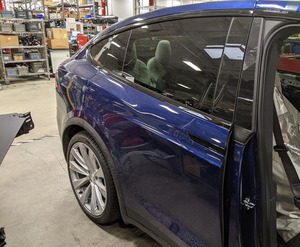

76. Calibrate LH falcon wing door
    Note

    Hold the upper B-pillar button in the down position to manually calibrate





77. Raise LH and RH front windows
78. Close LH front door
